Lift Kit TOYOTA TUNDRA 2007 2021 Suspension + 5 cms FOX with rear reservoir
Reference : ACTTUNFOXBON
€3,950.00
Tax included
TOYOTA TUNDRA
(2007 - 2021)
FOX SUSPENSION LIFT KIT FOR TOYOTA TUNDRA 2007-2021:
Fox Performance Series 2.0 Coil-over Shock Kit | Includes 4 shocks
Manufacturer : Fox Suspension
Reference : FOX98524115 / 985-24-115 and FOX98502004 / 985-02-004
Vehicle Position : Front and Rear
Lift Height : 0 to 5 cm
Compatibility :
Toyota Tundra 2WD and 4WD (2007-2021) with a 0 to 5 cm lift
Kit Contents :
Fox Performance Series 2.0" Shocks with remote reservoir
Fox Performance Series 2.0" Coil-over Shocks
Machined reservoir clamps

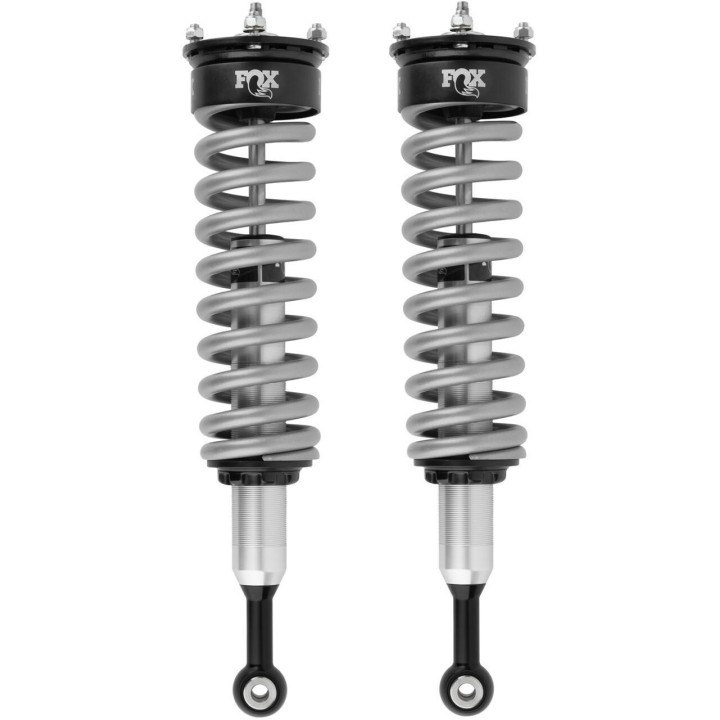

Front Coil-over Shocks Overview :
Our easy-to-install IFP Performance Series coil-over shock incorporates cutting-edge technology and numerous features that set it apart. The precision impact-extruded aluminum body improves cooling and offers excellent corrosion resistance. The vehicle-specific upper mount incorporates a composite bushing that isolates noise and vibration.
Locking spring preload rings allow for easy ride height and preload adjustment, and hold a premium race-grade coil spring, selected to deliver optimal stiffness. Performance Series Coil-Over IFP shocks mount without any modifications and are designed to level your truck front to rear. They are available for stock and lifted trucks that reuse the original shock.
Inside, a monotube internal floating piston (IFP) reservoir separates the shock oil from the high-pressure nitrogen-charged gas chamber. The IFP eliminates oil aeration, optimizing the performance of the factory-tuned precision valve system. Easy to install, Performance Series 2.0 Coil-over IFP shocks provide optimal on-road ride comfort and predictable off-road handling, even in the toughest conditions.
Coil-over Suspension Features :
REFERENCE : 985-02-004
FEATURES : Optimized performance for each vehicle; aluminum body dissipates heat faster than steel; IFP system separating oil from high-pressure nitrogen. CNC machined and black anodized aluminum components
SERIES : Performance
TRAVEL : 143 mm (5.64 in)
FRONT LIFT HEIGHT : 0-51 mm (0-2 in)
BODY : Impact-extruded and CNC machined 6061-T6 aluminum one-piece body, clear anodized, corrosion resistant
BODY FINISH : Clear anodization for a durable finish
COMPONENTS : CNC machined and black anodized 6061-T6 aluminum
SHAFT : Heat-treated and hard chrome-plated 16 mm (5/8 in) alloy steel
PISTON : High-flow piston developed for competition
VALVES : Application-specific valves for optimal performance
SEALS : Redundant sealing system (main seal, wiper seal, dust seal)
BEARINGS : Large diameter high-strength spherical bearings
EXTENDED LENGTH : 610 mm (24.04 in) mm
COMPRESSED LENGTH : 467 mm (18.4 in)
UPPER MOUNT : TM (OEM)
LOWER MOUNT : Eyelet
Manufacturer : Fox Suspension
Reference : FOX98524115 / 985-24-115 and FOX98502004 / 985-02-004
Vehicle Position : Front and Rear
Lift Height : 0 to 5 cm
Compatibility :
Toyota Tundra 2WD and 4WD (2007-2021) with a 0 to 5 cm lift
Kit Contents :
Fox Performance Series 2.0" Shocks with remote reservoir
Fox Performance Series 2.0" Coil-over Shocks
Machined reservoir clamps
Front Coil-over Shocks Overview :
Our easy-to-install IFP Performance Series coil-over shock incorporates cutting-edge technology and numerous features that set it apart. The precision impact-extruded aluminum body improves cooling and offers excellent corrosion resistance. The vehicle-specific upper mount incorporates a composite bushing that isolates noise and vibration.
Locking spring preload rings allow for easy ride height and preload adjustment, and hold a premium race-grade coil spring, selected to deliver optimal stiffness. Performance Series Coil-Over IFP shocks mount without any modifications and are designed to level your truck front to rear. They are available for stock and lifted trucks that reuse the original shock.
Inside, a monotube internal floating piston (IFP) reservoir separates the shock oil from the high-pressure nitrogen-charged gas chamber. The IFP eliminates oil aeration, optimizing the performance of the factory-tuned precision valve system. Easy to install, Performance Series 2.0 Coil-over IFP shocks provide optimal on-road ride comfort and predictable off-road handling, even in the toughest conditions.
Coil-over Suspension Features :
REFERENCE : 985-02-004
FEATURES : Optimized performance for each vehicle; aluminum body dissipates heat faster than steel; IFP system separating oil from high-pressure nitrogen. CNC machined and black anodized aluminum components
SERIES : Performance
TRAVEL : 143 mm (5.64 in)
FRONT LIFT HEIGHT : 0-51 mm (0-2 in)
BODY : Impact-extruded and CNC machined 6061-T6 aluminum one-piece body, clear anodized, corrosion resistant
BODY FINISH : Clear anodization for a durable finish
COMPONENTS : CNC machined and black anodized 6061-T6 aluminum
SHAFT : Heat-treated and hard chrome-plated 16 mm (5/8 in) alloy steel
PISTON : High-flow piston developed for competition
VALVES : Application-specific valves for optimal performance
SEALS : Redundant sealing system (main seal, wiper seal, dust seal)
BEARINGS : Large diameter high-strength spherical bearings
EXTENDED LENGTH : 610 mm (24.04 in) mm
COMPRESSED LENGTH : 467 mm (18.4 in)
UPPER MOUNT : TM (OEM)
LOWER MOUNT : Eyelet

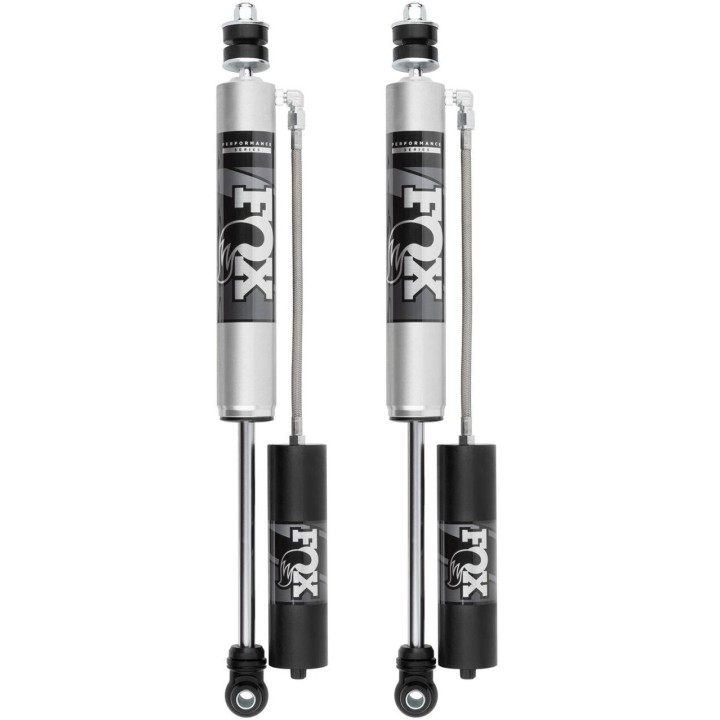

Rear Shock Absorber Overview
The Performance Series 2.0 Reservoir shock, with its smooth aluminum body, delivers FOX's exceptional, industry-renowned, and race-proven performance in an affordable, easy-to-install kit. Its heat-dissipation optimized design features an impact-treated clear anodized aluminum body, which dissipates heat faster than a conventional steel shock.
Its external reservoir increases oil and nitrogen capacity while giving it a striking racing look. The black anodized reservoir clamp and other components are CNC machined from 6061-T6 aluminum. The high-flow damping piston, developed for competition and combined with a specific valve system, ensures the Performance Series 2.0 Reservoir shock provides predictable ride quality, even on the roughest roads.
Rear Shock Absorber Specifications :
REFERENCE : 985-24-115
FEATURES : Aluminum reservoir clamp included; Optimized performance for each vehicle; Aluminum body for faster heat dissipation than steel; External reservoir system for rapid heat dissipation. CNC machined and black anodized aluminum components
SERIES : Performance
TRAVEL : 244 mm (9.62 in)
FRONT LIFT HEIGHT : 0-25 mm (0-1 in)
BODY : Impact-extruded and CNC machined 6061-T6 aluminum one-piece body, clear anodized, corrosion resistant
BODY FINISH : Clear anodization for a durable finish
COMPONENTS : CNC machined and black anodized 6061-T6 aluminum
SHAFT : Heat-treated and hard chrome-plated 16 mm (5/8 in) alloy steel
PISTON : High-flow piston developed for competition
VALVES : Application-specific valves for optimal performance
SEALS : Redundant sealing system (main seal, wiper seal, scratch-resistant seal)
BEARINGS : Large diameter high-strength spherical bearings
EXTENDED LENGTH : 631 mm (24.87 in) mm
COMPRESSED LENGTH : 387 mm (15.25 in)
UPPER MOUNT : Rod
LOWER MOUNT : Eyelet
MOUNTING NOTES : Machined aluminum reservoir clamp included
The Performance Series 2.0 Reservoir shock, with its smooth aluminum body, delivers FOX's exceptional, industry-renowned, and race-proven performance in an affordable, easy-to-install kit. Its heat-dissipation optimized design features an impact-treated clear anodized aluminum body, which dissipates heat faster than a conventional steel shock.
Its external reservoir increases oil and nitrogen capacity while giving it a striking racing look. The black anodized reservoir clamp and other components are CNC machined from 6061-T6 aluminum. The high-flow damping piston, developed for competition and combined with a specific valve system, ensures the Performance Series 2.0 Reservoir shock provides predictable ride quality, even on the roughest roads.
Rear Shock Absorber Specifications :
REFERENCE : 985-24-115
FEATURES : Aluminum reservoir clamp included; Optimized performance for each vehicle; Aluminum body for faster heat dissipation than steel; External reservoir system for rapid heat dissipation. CNC machined and black anodized aluminum components
SERIES : Performance
TRAVEL : 244 mm (9.62 in)
FRONT LIFT HEIGHT : 0-25 mm (0-1 in)
BODY : Impact-extruded and CNC machined 6061-T6 aluminum one-piece body, clear anodized, corrosion resistant
BODY FINISH : Clear anodization for a durable finish
COMPONENTS : CNC machined and black anodized 6061-T6 aluminum
SHAFT : Heat-treated and hard chrome-plated 16 mm (5/8 in) alloy steel
PISTON : High-flow piston developed for competition
VALVES : Application-specific valves for optimal performance
SEALS : Redundant sealing system (main seal, wiper seal, scratch-resistant seal)
BEARINGS : Large diameter high-strength spherical bearings
EXTENDED LENGTH : 631 mm (24.87 in) mm
COMPRESSED LENGTH : 387 mm (15.25 in)
UPPER MOUNT : Rod
LOWER MOUNT : Eyelet
MOUNTING NOTES : Machined aluminum reservoir clamp included
DELIVERY WITHIN 15-18 DAYS
