  • Kit Suspension Pneumatique NISSAN NAVARA NP300 D23 Double Cabine 2015 2023

NISSAN NAVARA NP300 D23 Double Cab 2015 2023 Air Suspension Kit

Reference : ACAHS317HV086C

€595.00
Tax included

NISSAN NAVARA NP300 D23 DOUBLE CAB 4x4

(2015 -  2023)

NISSAN NAVARA NP300 D23 Double Cab 2015 2023 Air Suspension Kit :

Only for the version with coil springs (Double Cab)

Suspension reinforcements for comfort and safety

Manual rear air suspension for X-Class / Navara / Alaskan, for those who wish to adjust the suspension firmness themselves.



MAD air suspension is generally designed to work in conjunction with the vehicle's original rear suspension. Available in different versions, it is suitable for motorists who wish to adjust the firmness of their suspension themselves. Inflation can be manual (requiring access to compressed air to inflate the bellows to the desired pressure), or with a compressor and pressure gauge (allowing adjustment while driving). Finally, the full air suspension automatically compensates for the original suspension and adjusts the load level.

Installing air suspension on your car offers a completely different driving experience, whether your vehicle is loaded or not. Each air suspension is specifically designed to fit your car model. Thanks to air suspension, you can also adjust the height of the rear of your vehicle if necessary, for example to increase ground clearance. With MAD air suspension, comfort and safety reach a whole new level.

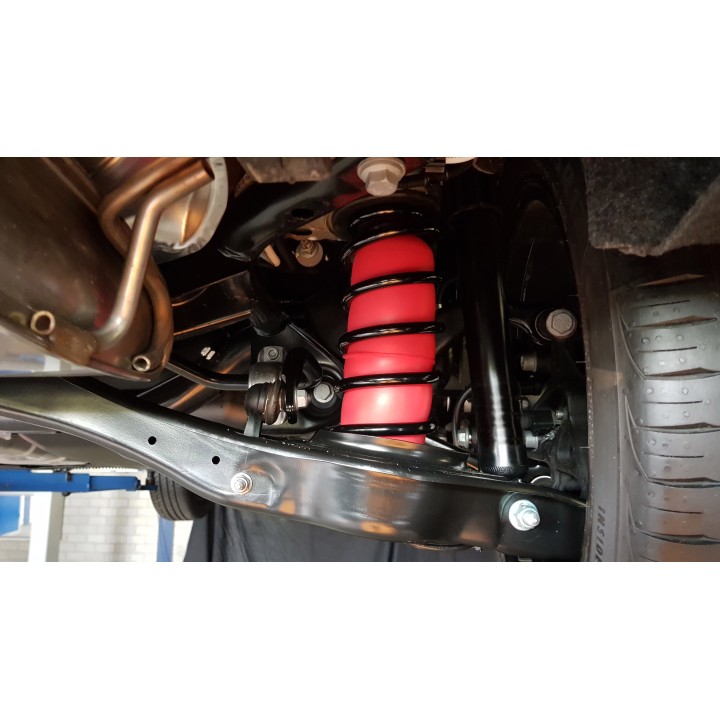

This type of bellows is mounted inside the rear coil spring. Its power being limited, it is only suitable for vehicles with a payload between 0 and 200 kg.

Which reinforcement to choose:

  • NR-317086 (Air suspension) suitable for a load of 0 to 200 kg. This item
  • M31-432-5 (Auxiliary suspension) suitable for a load of 0 to 300 kg
  • Load spring M31-433-8  , suitable for a load of 200 to 500 kg
  • M31-437-8 (Load spring + Auxiliary spring) Suitable for a load weight of 400 to 700 kg.

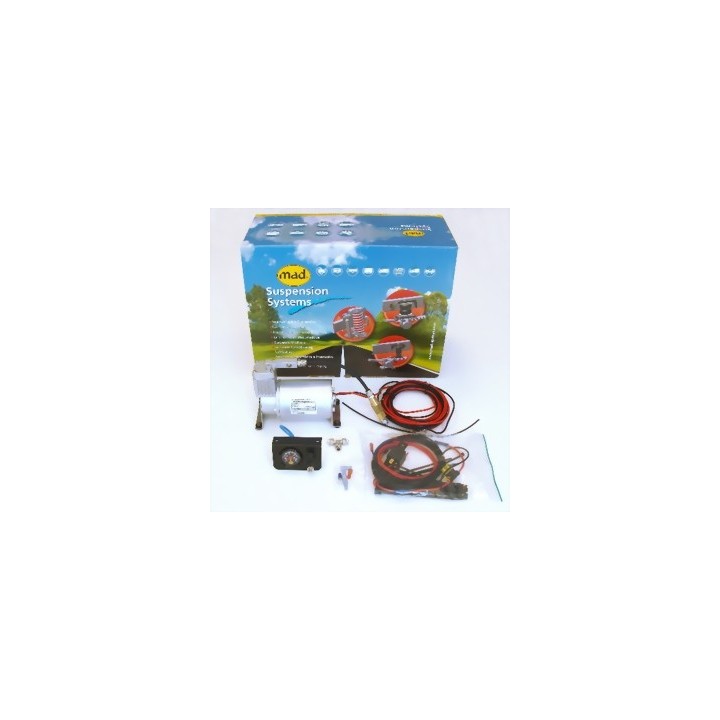

For optimal results, install the air bellows with a compressor. This will allow you to adjust the air pressure of the bellows with a simple press of a button in the cabin, while avoiding damaging the bellows by too high or too low pressure.

Air suspension has the advantage of allowing different hardnesses for the right and left bellows, which can be very useful if, for example, the load is heavier on one side of the vehicle. It generally supports heavier loads than steel spring suspension, but it should be noted that air suspension can be uncomfortable under a large and constant load; in this case, a reinforced steel spring may be preferable.

Professional installation recommended

ILLUSTRATIVE PHOTOS

  • Minimum pressure in unloaded air bellows: 0.5 bar
  • Minimum and maximum pressure under load: 1.0 to 3.0 bar
  • Your tires will wear less.
  • The best air bellows on the market
  • Reduced sensitivity to side winds
  • Never affects car warranties
  • All MAD products are TÜV approved.
  • Better quality and better fit
  • All kits are available with and without compressor.
  • 2-year warranty on materials (excluding compressor)
  • 3-year warranty on materials with compressor (electronics: 1 year)

SHIPPING TIME 10/12 DAYS
