Lift Kit TOYOTA HILUX 2015 TODAY Suspension + 5 cms SUPERIOR

TOYOTA HILUX REVO

(2015 - TODAY)

SUSPENSION LIFT KIT +5 cms FOR TOYOTA HILUX REVO 2015-TODAY:

WITH FOX Performance 2.0 IFP SHOCK ABSORBERS

The FOX IFP Bolt-On shock absorber, the performance series, is loaded with advanced technology and a long list of features that set it apart. The precision and extruded metal aluminum body increases cooling capacity and resists rust. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibrations. Inside is an internal reservoir with an Internal Floating Piston (IFP) design that separates the shock oil from the high-pressure, nitrogen-charged nitro chamber. The IFP eliminates oil aeration, allowing for maximum performance from the factory-tuned precision valving. The locking, spring preload rings allow for easy ride height and preload adjustment, maintaining a premium race coil, selected to provide the optimal spring rate. Performance coil IFP shock absorbers bolt on without modifications and are designed to level your front-armed truck. Applications are available for stock and lifted trucks that reuse the stock shock.

Nitro shocks by Fox Performance Series 2.0 IFP Smooth Body Shocks contain the latest shock technology to transform the performance of your truck or SUV. They use our proven damping control to provide a comfortable on-road ride and predictable off-road handling in the toughest conditions. Inside, you'll find our race-proven performance valve technology. Our Internal Floating Piston (IFP) design separates the shock oil from the high-pressure, nitrogen-charged nitro chamber. The IFP eliminates oil aeration, allowing for maximum performance from the factory-tuned precision valving.

Leaf springs are made from high-quality spring steel. Designed as a comfort leaf spring that incorporates special features to give the driver a comfortable ride on the road and increased control off-road with increased articulation and clearance.

Shock Absorber Specifications:


    Seamless eye bushing – 360-degree robot welded to the piston shaft for maximum strength and seal durability for off-road use.
    Durable dust protector - to prevent dust and other foreign bodies from entering the internal damping cylinder for maximum durability
    Nitrogen gas charged - designed to prevent shock fade and for better damping control
    Hard chrome piston shaft - 18 mm precision induction - hardened shaft for maximum durability and strength
    Oven-hardened coating – for maximum resistance and protection against corrosion.
    Fun and flexible damping valve control – 4 adjustable levels to meet the driver's dynamic driving needs. Made of high-quality anodized aluminum for maximum rust resistance
    Heavy-duty multi-layer seal: prevents oil leaks and dirt penetration into the internal shock absorber cylinder for maximum durability.
    External reservoir cylinder - Solid, seamless 57 mm cylinder construction suitable for robust off-road applications
    Sintered piston with Teflon lining – Robust 35 mm piston design for maximum driving comfort and precise, smooth piston movement.
    Custom-designed rebound valve - improved driving comfort and precise rebound damping control
    Internal damping cylinder - double-tube construction to protect and prevent any bumps caused by external factors for precise piston movements
    Compression valve - custom-designed for precise oil damping control

Pro kit, installed on the vehicle:

 Improves driving performance
 Adjusted to on-road and off-road environments
 Improves car handling

Front nitro coil on Fox Performance 2.0 IFP Specifications:

 Body: 2.0 "Impact extruded and CNC machined 6061-T6 Clear anodized aluminum One piece resists rust over time
 Reservoir: Internal mono-tube IFP reservoir design
 Body plating: clear-anodized for a durable finish
 Components: Black anodized Billet Aluminum, CNC Machined 6061-T6
 Shaft: 5/8 "heat-treated hard chrome alloy steel
 Piston: Race-developed high-flow piston design
 SEALS: Redundant sealing system main system seal, wiper seal and scraper seal
 Oil: JM92 Advanced suspension fluid to improve performance at varying temperatures
 Bearing: large diameter, heavy-duty spherical

Front nitro coil on Fox Performance 2.0 IFP Dimensions:

 Travel: 62.86 cms
 Compressed: 44.78 cms
 Extended: 11.76 cms

Front nitro coil on Fox Performance 2.0 IFP Mounts:

 Upper Mount: OEM
 Lower Mount: eyelet

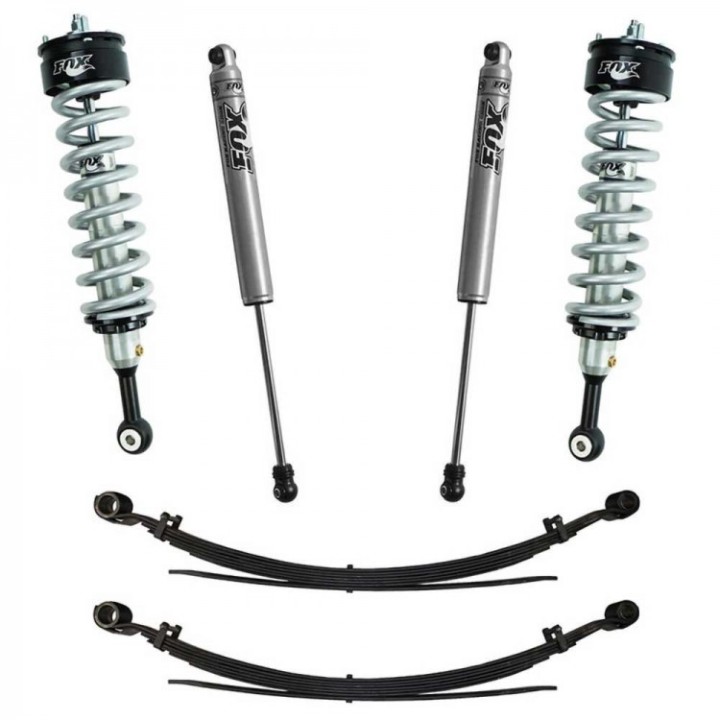

The Lift Kit consists of the following elements:

(2) Front nitro shock absorbers on FOX PERFORMANCE 2.0 IFP Lift 0-5 cms
 (2) Rear Nitro Shock FOX PERFORMANCE 2.0 IFP Lift 0-3.81 cms
 (2) Rear leaf spring


Notes:

 Only compatible with double cab models.

Toyota Hilux Revo 15-20 | 2.8 Diesel | FRONT 0-40 kg | Rear 200-300kg | LIFT 5 cms

DELIVERY WITHIN 8-10 DAYS
