Reference : ACFRR161300
JEEP WRANGLER JL
(2018 - TO PRESENT-)
These all-inclusive TeraFlex Sport ST (Street & Trail) suspension systems offer true on-road and trail (ST) performance and capabilities in a reliable, maintenance-free package.
With its front control arm sport frame brackets, the 3.5-inch Sport ST3 suspension system focuses on ride and handling. These direct bolt-on brackets restore caster on taller lifts for improved ride quality and reduced brake dive. TeraFlex Sport frame brackets are "designed to withstand impacts." Front and rear track bar axle brackets correct axle position to provide a more positive steering feel.
Sport ST suspension systems feature lift coil springs, bump stops, and front sway bar quick disconnects optimized for the specified lift height as well as tire and component clearance. Front control arm sport frame brackets balance front caster and pinion angles to improve front suspension geometry on vehicles with 2.5 to 4.5-inch lifts. Front and rear track bar axle brackets improve steering response, center the axles to optimize the vehicle's roll center, and reduce body roll for unparalleled handling.
The result is a simple "install and drive" bolt-on installation with no cutting or welding required. These maintenance-free suspension systems offer superior on-road ride quality and comfort with maximum off-road flexibility. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).
SPECIFICATIONS :
Lift Height: + 9cms
Offers true Street & Trail (ST) performance
Reliable, worry-free performance
Positive and responsive handling with reduced noise, vibration, and harshness (NVH)
Front and rear progressive bump stops protect occupants and the vehicle from harsh suspension bottoming.
Maximum Tire Diameter:
Sports | Sahara (with 7.5cms front and 6.5 cms rear bump stops): 35 inches
Rubicon (with 5cms front and 5cms rear bump stops): 35 inches
Rubicon (with 6.5cms front and 7.5cms rear bump stops): 37 inches

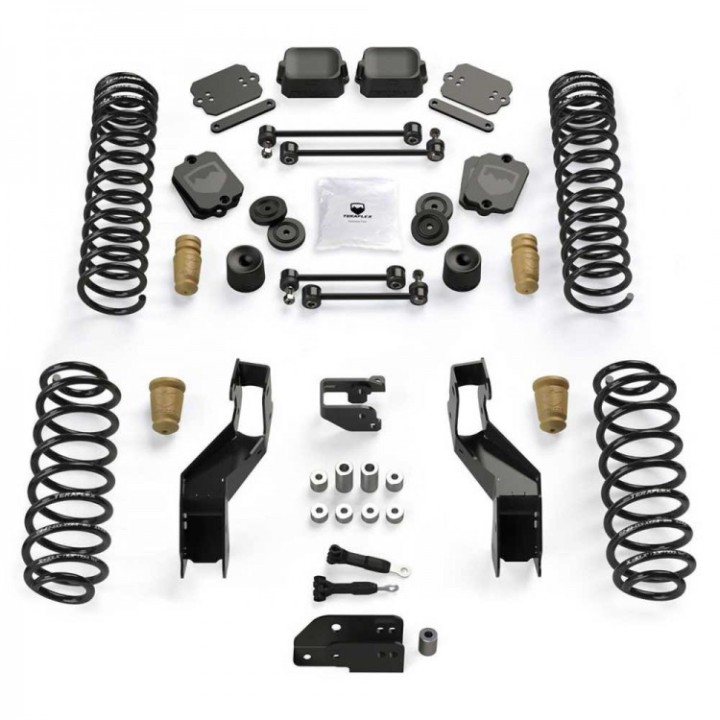

The lift kit consists of the following components:
(2) Front Coil Spring
Front Control Arm Sport Frame Bracket Kit
Front Track Bar Axle Bracket
Front Progressive Bump Stop Kit
Front Bump Stop Extension Kit
Front Bump Stop Strike Pad Shim Kit
Front Sway Bar Quick Disconnect Kit
Front Brake Line Anchor Kit
Rear Sway Bar Link Kit with Swivel Stud
Rear Bump Stop Shim Kit
Rear Bump Stop Pad Extension Kit
Rear Progressive Bump Stop Kit
Rear Track Bar Axle Bracket
(2) Rear Coil Spring
All necessary hardware
IMPORTANT :
Requires aftermarket wheels with 4.75 inches of backspacing or less
Models with plastic bumpers require removal of the air deflector/splash guard between the bumper and fender to fit 35-inch or larger tires.
Requires longer shocks (sold separately)
Alignment required
The HD reinforcement kit for sport frame bracket TX1938115 (sold separately) reinforces the front control arm sport frame brackets. Recommended, but not mandatory
DELIVERY WITHIN 8-10 DAYS
