Rear Air Suspension for MERCEDES SPRINTER 2006 2018 4x4 Dual Wheels without Compressor
Reference : ACNR197HV574B
MERCEDES SPRINTER W906 4x4
(2006 - 2018)
Rear Air Suspension for MERCEDES SPRINTER 2006 2018 4x4 Dual Wheels without Compressor:
Manual air suspension for Mercedes Sprinter with dual wheels and four-wheel drive, for those who wish to adjust the firmness of the suspension themselves
Dual rear wheels, all-wheel drive (4WD) and rear-wheel drive (RWD), lifted suspension, excluding xenon headlights, includes chassis-cab.
The MAD air suspension is generally designed to work in conjunction with the vehicle's original rear suspension. Available in different versions, it is suitable for drivers who want to adjust the firmness of their suspension themselves. Inflation can be manual (requiring access to compressed air to inflate the bellows to the desired pressure), or with a compressor and pressure gauge (allowing adjustment while driving). Finally, the complete air suspension automatically compensates for the original suspension and adjusts the load level.
Installing an air suspension on your car offers a completely different driving experience, whether your vehicle is loaded or not. Each air suspension is specifically designed to fit your car model. With air suspension, you can also adjust the height of the rear of your vehicle if necessary, for example, to increase ground clearance. With MAD air suspension, comfort and safety reach a whole new level.
Compatible with the following car models:
- Mercedes Sprinter 2006-2018. Also suitable for 4x4 models. Vehicle with dual rear wheels.
For optimal results, install the air bellows with a compressor. This way, you can adjust the air pressure of the bellows at the touch of a button from inside the cabin, while avoiding damaging the bellows due to too high or too low pressure.
The air suspension has the advantage of allowing different stiffness for the left and right bellows, which can be very useful if, for example, the load is heavier on one side of the vehicle. It generally supports heavier loads than a steel spring suspension, but it should be noted that an air suspension can be uncomfortable under a heavy and constant load; in this case, a reinforced steel spring may be preferable.
Advantages:
- Minimum pressure in unloaded air bellows: 0.5 bar
- Minimum and maximum pressure under load from 1.0 to 3.0 bar
- Your tires will wear less.
- The best air bellows on the market
- Never affects automotive warranties
- Reduced sensitivity to crosswinds
- All MAD products are TÜV approved.
- Better quality and better fit
- All kits are available with and without compressor.
- 2-year warranty on materials (excluding compressor)
- 3-year warranty on materials with compressor (electronics: 1 year)
The MAD suspension system is designed to compensate for load variations and to support and assist the vehicle's original suspension system, ensuring safety and comfort even at the maximum authorized load. The suspensions never exceed the vehicle's maximum authorized load.

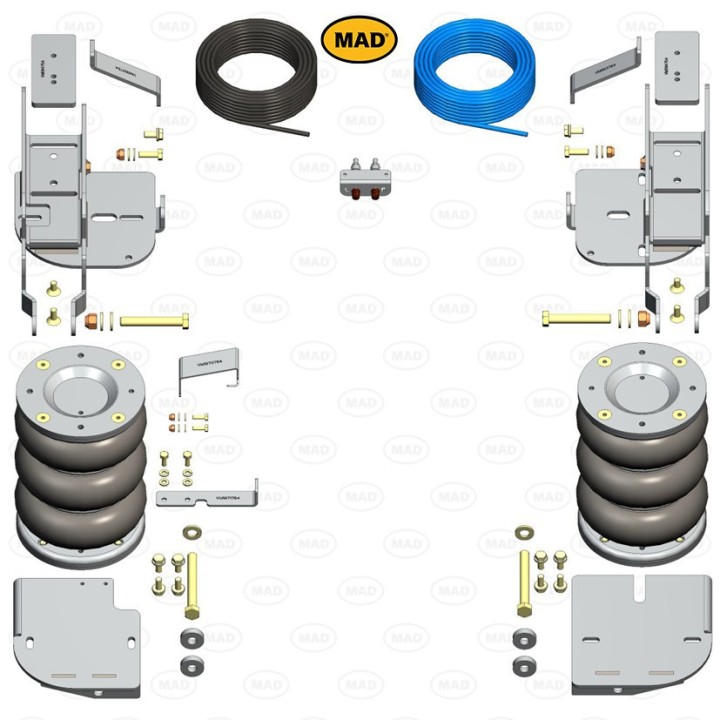

All images are universal for the respective mounting system. The appearance of the bellows and supports may slightly differ from the images shown, but they will always fit the vehicle for which the kit is designed.
SHIPPING TIME 1-2 WEEKS
