Air Suspension VOLKSWAGEN TRANSPORTER T6.1 2019 2024 Manual system without compressor
Reference : ACAMD197HV094B
VOLKSWAGEN TRANSPORTER T6.1
(2019 - 2024)
VOLKSWAGEN TRANSPORTER T6.1 2019 2024 Air Suspension Kit Manual system without compressor:
Manual air suspension for Volkswagen T5 / T6 / T6.1 for those who want to be able to adjust the suspension hardness themselves.
MAD air suspension is in most cases designed to work with the car's original rear suspension. Air suspension is available in different variants and is suitable for car owners who want to be able to adjust the hardness of their suspension themselves. Air suspension is available with manual filling as you must have access to air to fill the bellows to the desired pressure. It is also available with a compressor and a pressure gauge so you can adjust the desired pressure yourself even during the trip. Then there is the complete air suspension, which compensates for the car's original suspension and automatically adjusts the load level. By installing air suspension on your car, you will get a completely different driving experience, whether you are driving loaded or not. All air suspensions are specific to each car model. Thanks to the air suspension, you can also adjust the height of the rear of your vehicle at specific times if you need higher ground clearance. Comfort and safety reach a whole new level with MAD air suspension.
Professional installation recommended
Suitable for the following car models below:
-
Transporter- T5 - Excl. Chassis/cab, Excl. Multivan, Excl. 4Motion - from 04-2003 to 08-2015
Transporter- T6 , T6.1 - Excl. Chassis/cab, Excl. Multivan, Excl. 4Motion - from 04-2015 to 12/2024
You will get the best results if the air bellows are installed with a compressor. This allows you to adjust the air pressure in your bellows with a simple push of a button inside the car's cabin, but you also avoid the risk of damaging the bellows with too high or too low pressure by constantly keeping an eye on the pressure you have.
Air suspension has the advantage of being able to have different hardness in the right and left bellows, which can be a big advantage if, for example, you have more load on one side of your vehicle. Air suspension can also generally support heavier loads than a steel spring, but it should be noted that an air spring does not work well under constant heavy load, so in these cases, for example, a robust steel spring would be preferable.
Advantages of this system:
- Minimum pressure in unladen air bellows 0.5 BAR
- Min and max pressure under load 1.0 - 3.0 BAR
- Less tire wear
- The best air bellows on the market
- Reduced sensitivity to crosswinds
- Never affects car warranties
- All MAD products are TUV approved
- Better quality and fit
- All kits are available with and without compressor
- 2-year material warranty without compressor
- 3-year material warranty with compressor (Electronics 1 year)
The MAD suspension system is designed to compensate for different load weights and to support and assist the car's original suspension system so that safety and comfort are maintained even at the maximum permitted load. The suspension never increases the maximum permitted load weight for the car.

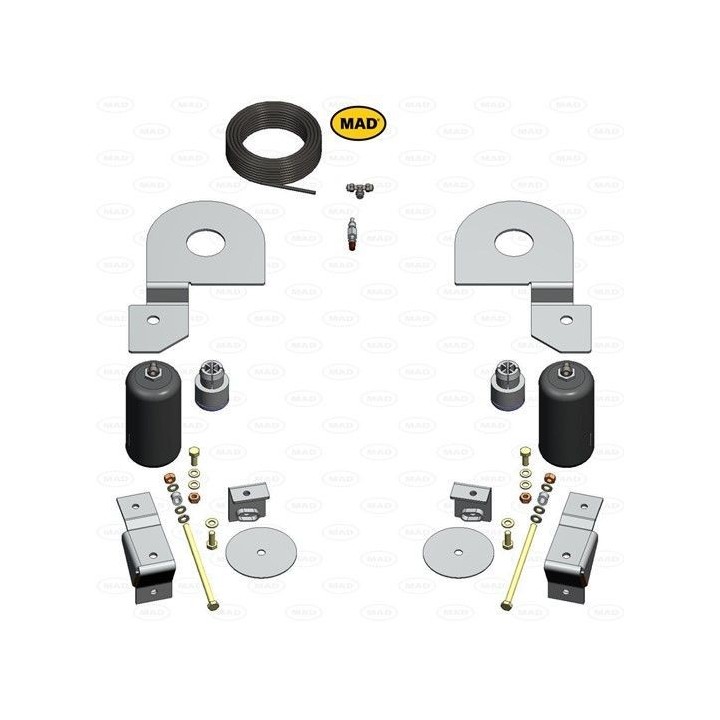

- All images are universal for the respective mounting system. The appearance of the bellows and brackets may differ somewhat from the images provided, but they always fit the car for which the kit is intended.
SHIPPING TIME 10/12 DAYS
