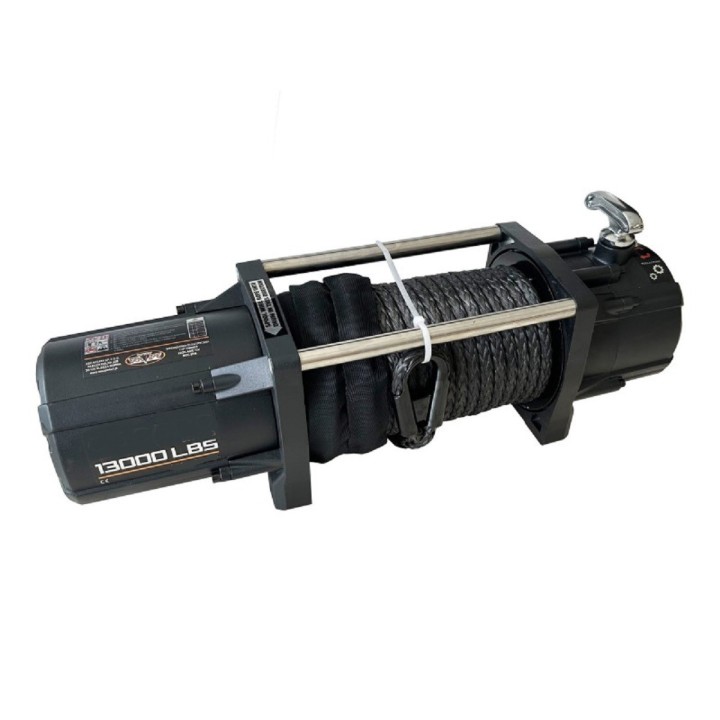

VALUE ELECTRIC WINCH 5897kgs 13000ES Synthetic Cable
Reference : ACESC5897
VALUE ELECTRIC WINCH 13000ES (5897 kgs) :
The 13000ES electric winch is powered by a solid, waterproof solenoid, placed in a durable housing that can be mounted above the drum or moved, for example, under the vehicle's hood.
Very well sealed - in the bases, in addition to the classic drum seals, O-rings have also been installed. Seals are also found in other places, such as the connection of the motor and gear to the winch base.
There are no plastic drive elements in the winch, which guarantees durability and reliability.
It is equipped with an automatic friction brake in the drum, i.e. a fault-free and proven construction, known for example from winches of the American brand Warn.
The set includes a fuse to be mounted on the power cord.
The equipment has a CE safety certificate and a 2-year warranty as well as full after-warranty service.
An excellent choice for off-road vehicles and tow trucks.

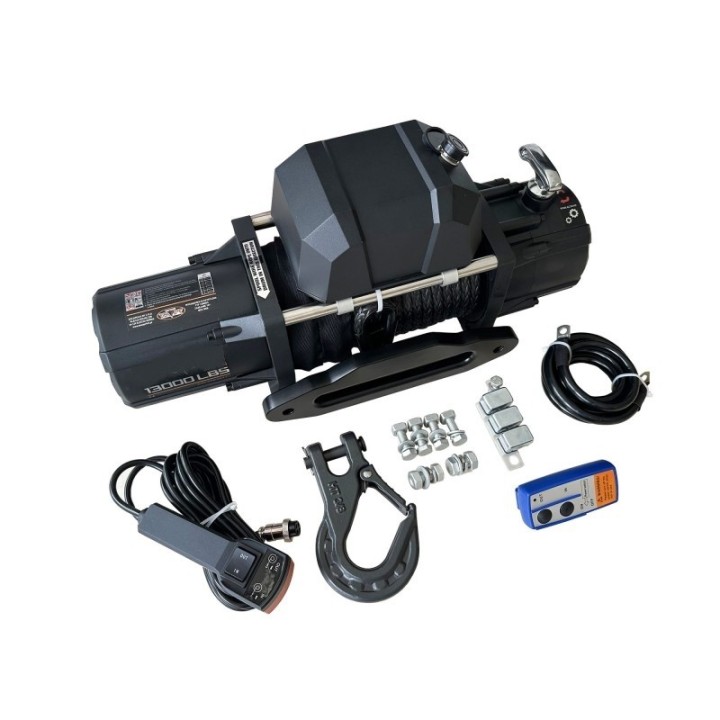

The box contains:
- winch + synthetic rope 26m 9.5mm, 12V power supply
- aluminum rope fairlead
- wired remote control
-wireless remote control
- plastic relay box with cables
- hook
- Mounting screws
-assembly instructions
- Warranty card
Technical data
Pulling capacity 13,000 lb [5,897 kg]
Motor 6.0 HP
Gear ratio 236:1
3-speed planetary gearbox
Friction brake, in the drum
Drum size 63.5 mm × 224 mm
Synthetic rope 9.5mm 26m
Rope guide Aluminum fairlead
Wired and wireless control
Recommended battery with a minimum starting current of 650cca
Mounting holes 254 x 114.3 mm
Weight 32 kg with steel cable
Dimensions 547 mm x 160 mm x 195 mm (width x depth x height including gear lever)
Warranty 24 months
DELIVERY IN 8-12 DAYS
