ELECTRIC WINCH VALUE 3629kgs 8.0 steel cable
Reference : ACVAL3629
ELECTRIC WINCH VALUE 8.0 (3629 kgs) steel cable :
The basic and proven model of the VALUE 8.0 8000lbs (3629kg) winch. Perfect for off-road vehicles and tow trucks.
The winch features a durable automatic bidirectional brake.
The winch has no plastic drive elements, making it an extremely successful design and guaranteeing many years of trouble-free operation.
The gearbox, motor and relay box have also been sealed to prevent water penetration. In the motor, the ground screw has been replaced by a waterproof pin on which the ground wire is clamped, and seals between the foot and the drum have been installed in the bases.
The box with relays can be mounted anywhere in the vehicle, by default it can be screwed to the winch bars above the cable.
The winch has a CE safety certificate and a 24-month door-to-door warranty (the winch is collected for repair by courier at our expense) as well as full after-warranty service.

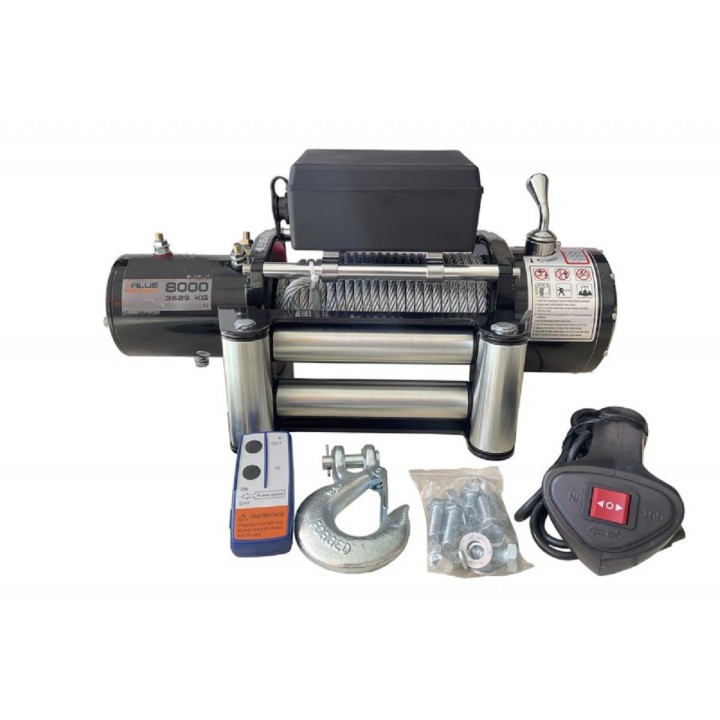

The box contains:
- winch + steel cable
- roller fairlead for steel cable
- wired remote control
- wireless remote control
- plastic relay box with cables
- hook
- Mounting screws
- assembly instructions
- Warranty card
Technical data :
Line pull 3629 kg
Motor 5.5 HP/4.1 kW for 12v,
Gear ratio 265:1
3-speed planetary gearbox
Automatic, metallic, bidirectional brake.
Drum size 64 mm x 224 mm
Steel rope 8.3 mm 24 m
Cable guide is a roller fairlead
Wired and wireless control
Recommended battery has a minimum starting current of 650 cca
Mounting holes 254 x 114.3 mm
Weight 38kg with steel rope
Dimensions 530x160x216 mm
Warranty 24 months
DELIVERY WITHIN 8-12 DAYS
