Reference : ACEVO5670

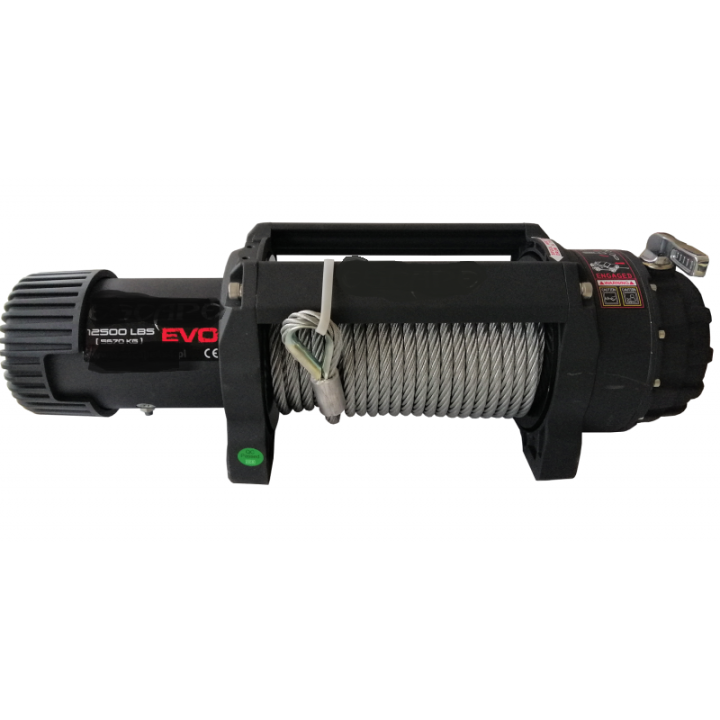

In this model, the transmission has been completely rebuilt - the racks and all other elements have been significantly reinforced compared to other structures. The latest type of friction brake is used, ensuring an unprecedented level of trouble-free operation.
In addition, the winch now meets the IP68 standard, which means it is much more resistant to dust, mud, water and other weather conditions than other constructions in this class.
The winch has no plastic mechanical elements, which guarantees many years of trouble-free operation. The winch bases have also been reinforced, which also provides greater cable clearance than standard.
Demanding quality control means that we receive a complete product, satisfying even the most demanding.
Powered by a 450 A solenoid in a robust and compact housing that can be unscrewed from the winch and placed anywhere on the car.
The winch has a CE safety certificate and a 5-year warranty as well as full after-warranty service.

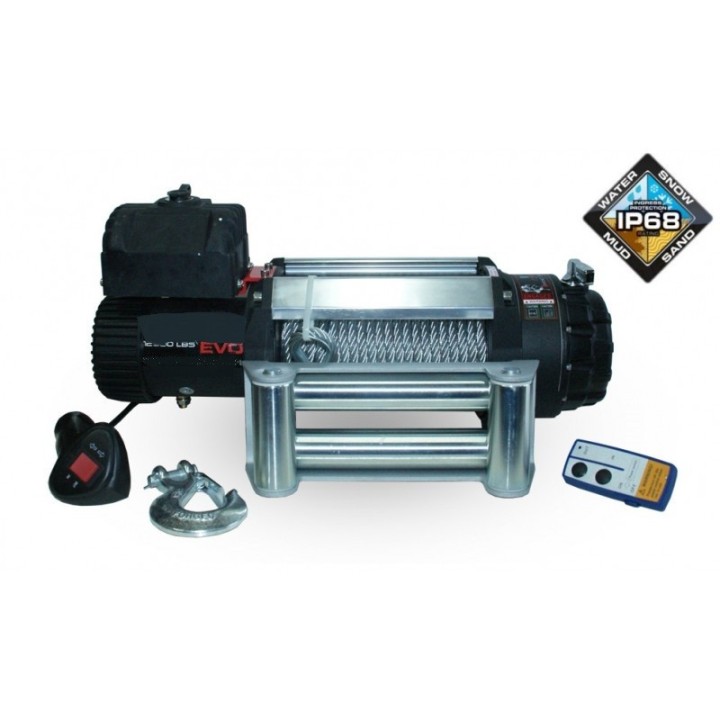

The box contains:
- a winch with a wound rope
- roller fairlead
- wireless remote control
- wired remote control
- plastic relay box with cables mounted on the motor.
- hook
- Mounting screws
- assembly instructions
12V or 24V version (please specify voltage when ordering)
Technical data:
Line pull: 12,500 lb (5,670 kg)
Motor: 6.0 hp /4.4 kw
Gear ratio: 262:1
Transmission: 3-stage, planetary, reinforced
Brake: reinforced, automatic friction

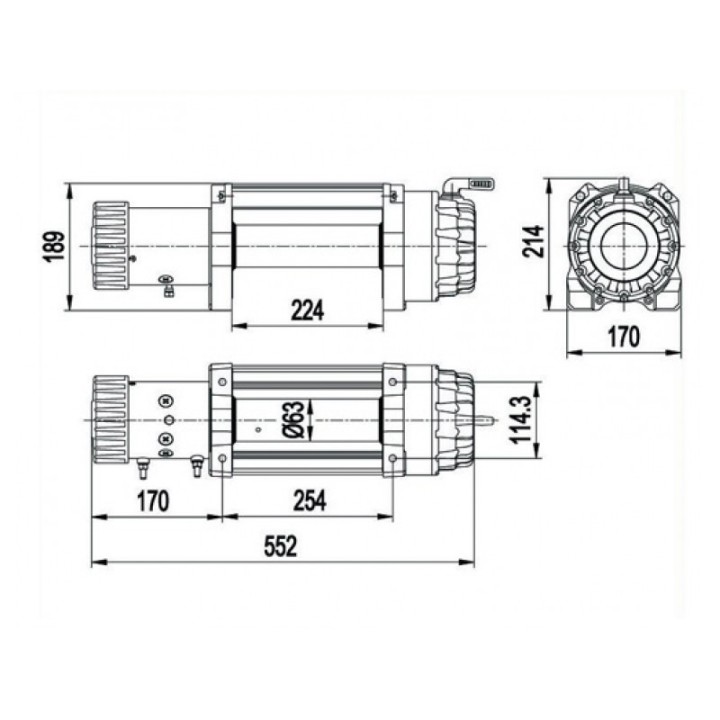

Drum size: 63 mm x 224 mm
Rope: Steel - 9.5 mm x 28 m
Rope guide: Roller fairlead
Recommended battery: 650 CCA starting current recommended
Mounting holes: 254x114.3 mm
Dimensions: 552 mm × 170 mm × 214 mm
Weight: 40 kg
Controls: wired and wireless
Warranty: 5 years
DELIVERY WITHIN 8-12 DAYS
