ELECTRIC WINCH XTR 5443kgs XTR12000 Steel Cable
Reference : ACK12000XTRW

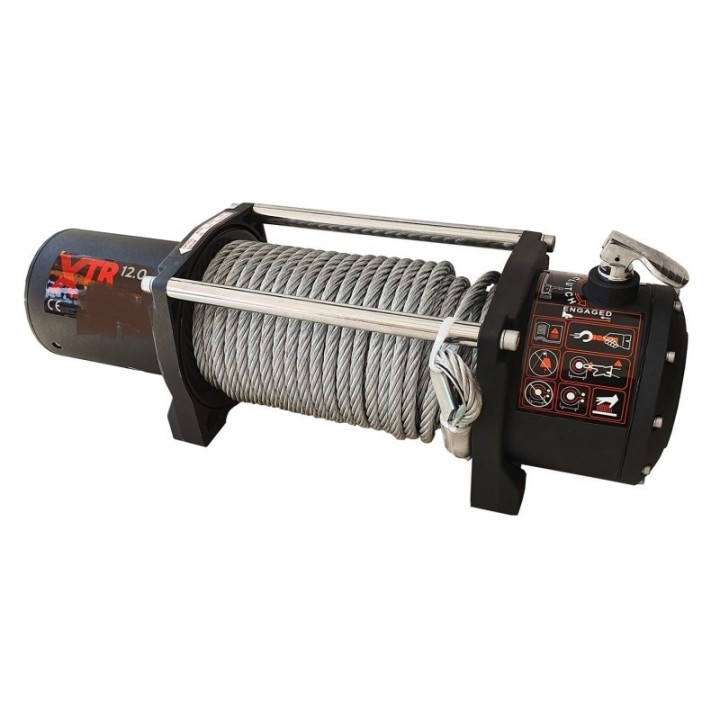

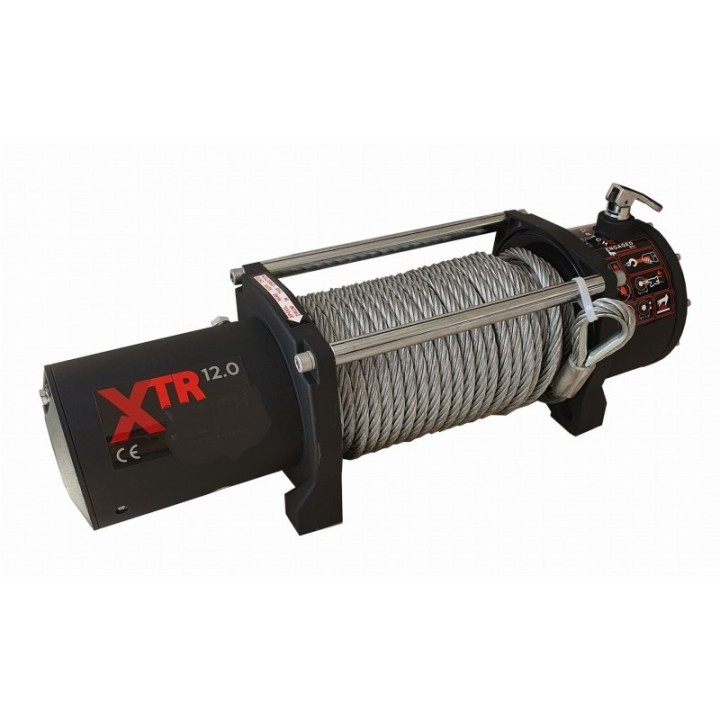

ELECTRIC WINCH XTR12000 (5443 kgs) :
An excellent XTR 12000 winch with a pulling capacity of 5443kg, manufactured in WARN, Superwinch and Smittybilt factories (USA). The most popular model - suitable for both off-road vehicles and tow trucks
The new model is equipped with a modernized gearbox - changing it is easier than ever. Simply lift the lever to release the drum into neutral or lower it if you want to pull or unwind the rope with the motor. The lever operates lightly, without resistance and causes no unnecessary problems. In addition, it is very simple to attach an actuator for automatic attachment and detachment, for example using a remote control.
XTR powered by a powerful solenoid, placed in a solid housing that can be mounted in various locations:
1) above the drum
2) above the motor
3) anywhere in the car (after extending the cables)
The relay box has also been sealed, making it even more resistant to floods and harsh weather conditions.
There are no plastic elements in the winch, which guarantees its durability and trouble-free operation. A feature of XTR winches is a unique brake on the motor (and not on the drum as in other winches). This structure resists overload and lowering.
The winch has a CE safety certificate and a 2-year door-to-door warranty (the winch is collected for repair by courier at our expense) as well as a full after-warranty service.

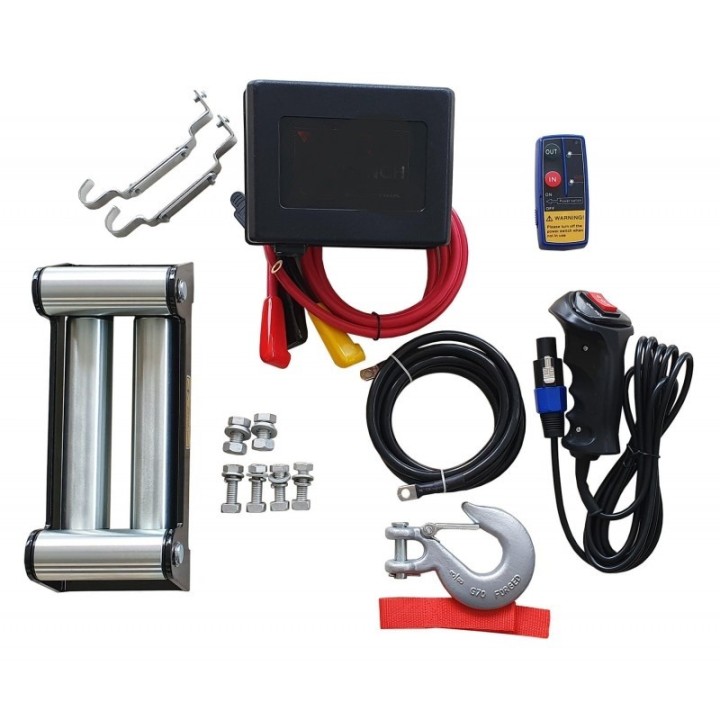

Included
- winch with wound steel cable
- roller fairlead
- wired remote control with diodes
- wireless remote control with a range of ~50m
- plastic relay box with cables
- hook
- Mounting screws
Pulling capacity 12,000 lb [5,443 kg]
Motor 6.5 HP/4.8 kW
Gear ratio 265:1
3-speed planetary gearbox
Friction, spring brake
Drum size 64 mm x 223 mm
Steel rope 9.5 mm 28 m
Cable guidance Roller fairlead
Wired and wireless control
Recommended battery with a minimum starting current of 650cca
Mounting holes 254 x 114.3 mm
Weight 40kg with steel rope
Dimensions 540 mm × 160 mm × 218 mm
24 months warranty
DELIVERY WITHIN 8-12 DAYS
