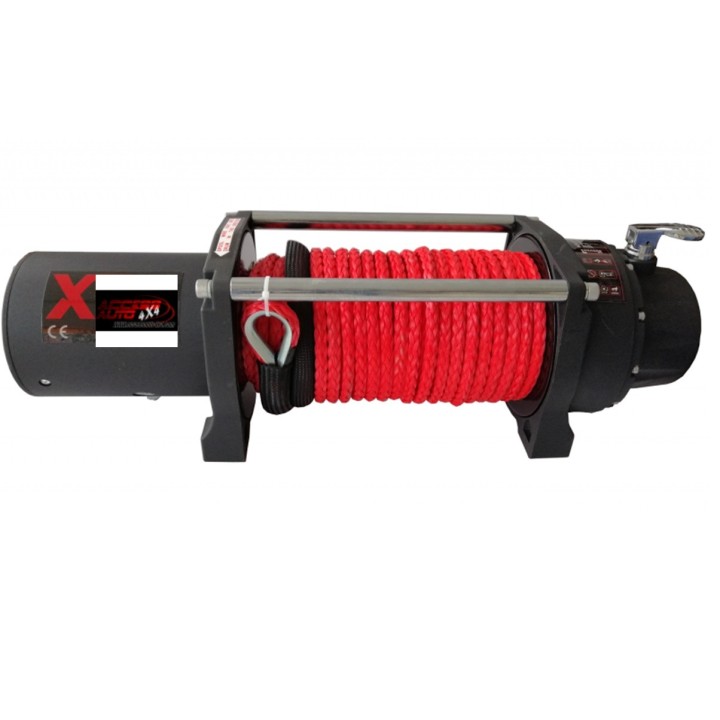

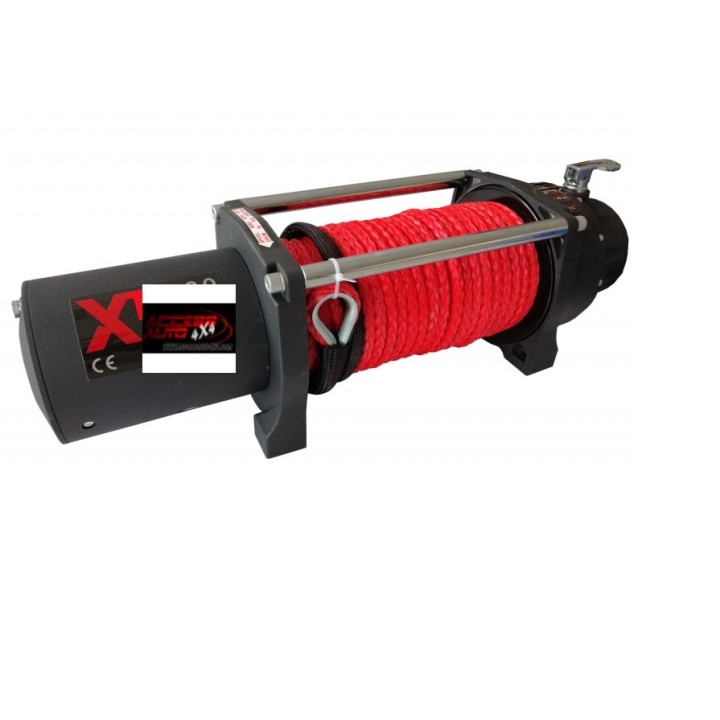

ELECTRIC WINCH 3629kgs XTR 8000 synthetic rope
Reference : ACMX8000
ELECTRIC WINCH XTR 8000 (3629 kgs):
This electric winch model is equipped with a modernized gearbox - use is easier than ever.
Simply lift the lever to release the drum into neutral or lower it if you want to pull or unroll the rope with the motor.
The lever operates lightly, without resistance and causes no unnecessary problems.
In addition, it is very simple to attach an actuator for automatic attachment and detachment, for example using a remote control.
XTR powered by a powerful solenoid, placed in a solid housing that can be mounted in various locations:
1) above the drum
2) anywhere in the car (after extending the cables)
The relay box has also been sealed, making it even more resistant to floods and harsh weather conditions.
There are no plastic elements in the winch, which guarantees its durability and fault-free operation. A characteristic of XTR winches is a unique brake on the motor (and not on the drum as in other winches). This structure resists overload and lowering.
The winch has a CE safety certificate and a 2-year door-to-door warranty (the winch is collected for repair by courier at our expense) as well as a complete after-warranty service.
Included

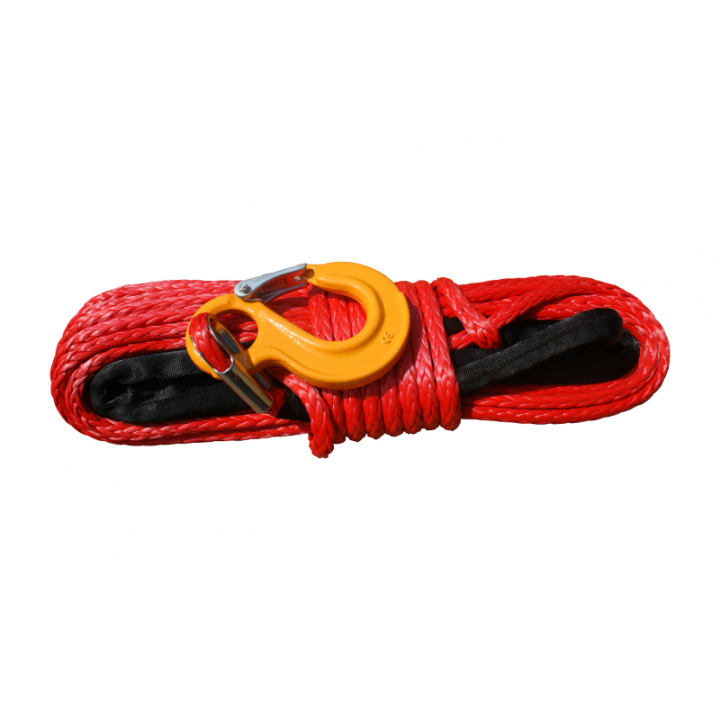

- winch with SYDNEY synthetic rope
- sliding fairlead
- wired remote control with diodes
- wireless remote control with a range of ~50m
- plastic relay box with cables
- hook
- Mounting screws
- user manual
12 VOLT VERSION
Technical data:
Line pull 3629 kg
Motor 5.5 HP/4.2 KW
Gear ratio 172.8:1
3-speed planetary gearbox
Automatic spring brake
Drum size 63 mm x 223 mm
Synthetic rope
Rope guide: aluminum fairlead
Wired and wireless control
Recommended battery with a minimum starting current of 650 CCA
Mounting holes 254 x 114.3 mm
Weight 29.1 kg
Dimensions 543 mm x 160 mm x 162 mm
Warranty 24 months
DELIVERY WITHIN 8-12 DAYS
