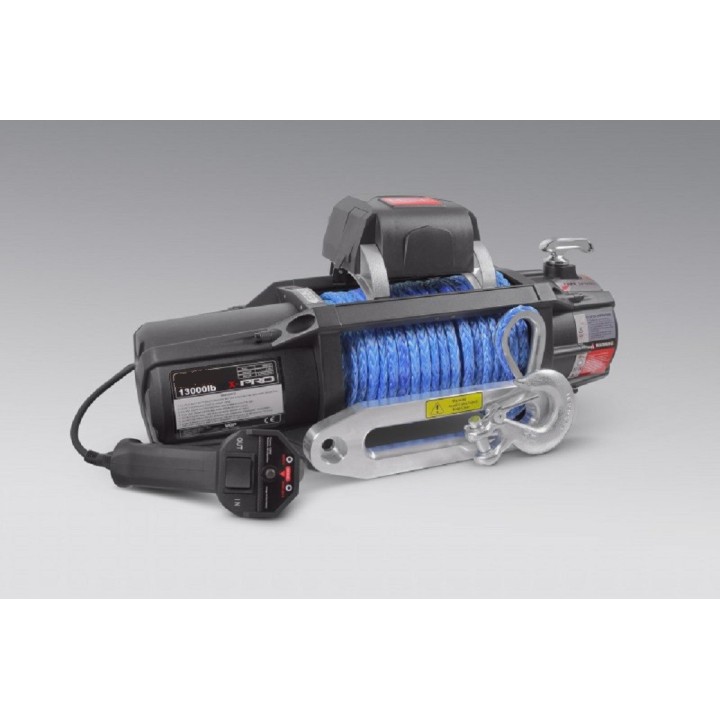

MORE ELECTRIC WINCH 5900kgs X-PRO 13000 synthetic rope
Reference : ACMRPRO13000
MORE ELECTRIC WINCH 5900kgs X-PRO 13000 synthetic rope:
Its robust and durable construction, 6 HP motor, and reliable operation make the More 4x4 13000 X-PRO winch a popular choice for intensive daily use on tow trucks, fire trucks, and off-road vehicles. It has proven itself many times in extreme off-road rallies under exceptionally difficult conditions. It is also successfully used on special vehicles and vans. A relay box not integrated into the winch allows for easy installation in confined spaces, such as off-road vehicle bumpers.

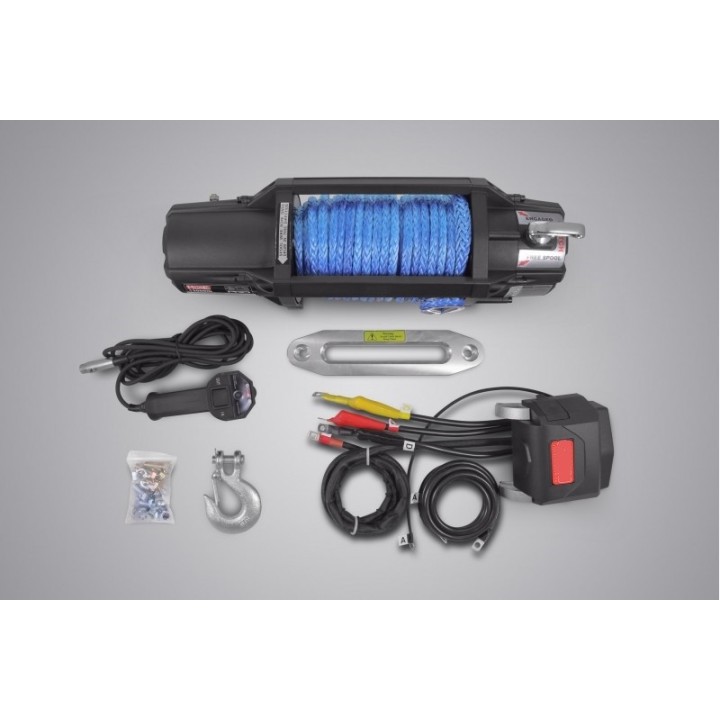

The winch comes with a fairlead set
This aluminum sliding guide with hook for synthetic rope (Dyneema) of an electric winch.
The product is made of aluminum, making it suitable for the most extreme conditions.
The locking hook system facilitates winch operation and use. A powerful magnet holds the hook in the desired position.
Aesthetics and ergonomics in one.
5-year warranty
Technical specifications:
Maximum pulling force: 5,909 kg (13,000 lb)
Motor: 6 hp / 4.5 kW
Power supply: 12 V DC

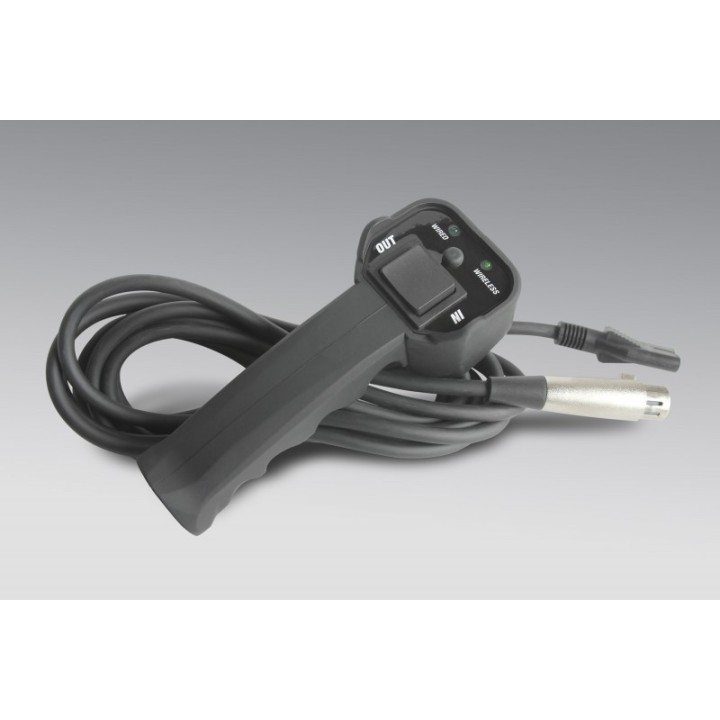

Control: Remote control with 3.7 m cable, wireless remote control
Gearbox: Planetary, three-stage
Torque ratio: 265:1
Brake: Automatic, integrated into the drum
Drum dimensions: Diameter: 63.5 mm, Length: 224 mm
Rope: 27 m x 9.5 mm
Rope guide: Sliding guide
Battery: Recommended battery: min. 64 Ah
Power cables: 38.5 mm², length: 183 cm
Weight: 21.0 kg
Dimensions L x W x H (with lever): 530 x 160 x 205 mm
Bolt pattern: 254 x 114 mm
Cable retraction speed and current consumption on the first turn
Cable load (kg)
Cable speed (m/min) Current consumption (A)
No load
6,5
65
1814 2,85
175
2722 2,4
230
3629 2,0
280
4536 1,75
355
5443 1,25
415
Cable tension and length on each turn
Cable layer
Tension per layer (kg)
Cable length on drum (m)
1
5909
4,8
2
4550
12
3
4018
21
4
3368
26
