ELECTRIC WINCH EVO 17500 LB 7938kgs synthetic rope
Reference : ACTQ17SV

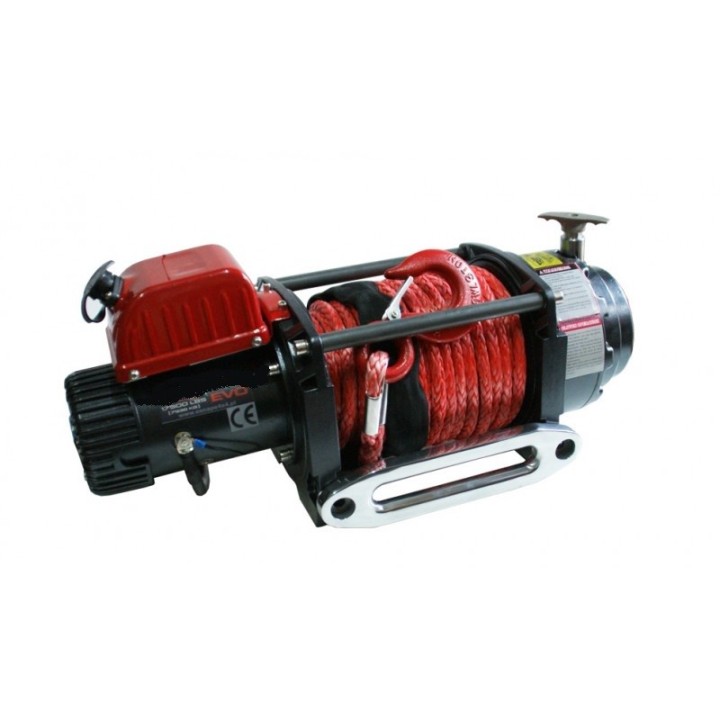

ELECTRIC WINCH EVO 17500 LB 7938kgs with Synthetic Rope:
Available only in 24V
Very strong winch, designed for the most difficult applications. The weight of the winch with cable is 67 kilograms, the cable has a thickness of 12 mm. Indestructible equipment without weak components.
It is equipped with an overload-resistant and failure-free friction brake (WARN design). The solid base of the winch, its housing, and the absence of plastic elements allow the winch to serve you even longer without failure.
Each winch in the EVO series undergoes rigorous quality control.
Powered by a 450 amp solenoid in a metal relay box
The winch has a CE safety certificate and a 5-year door-to-door warranty (the winch is collected for maintenance by courier at our expense) as well as full after-warranty service.
The box contains:

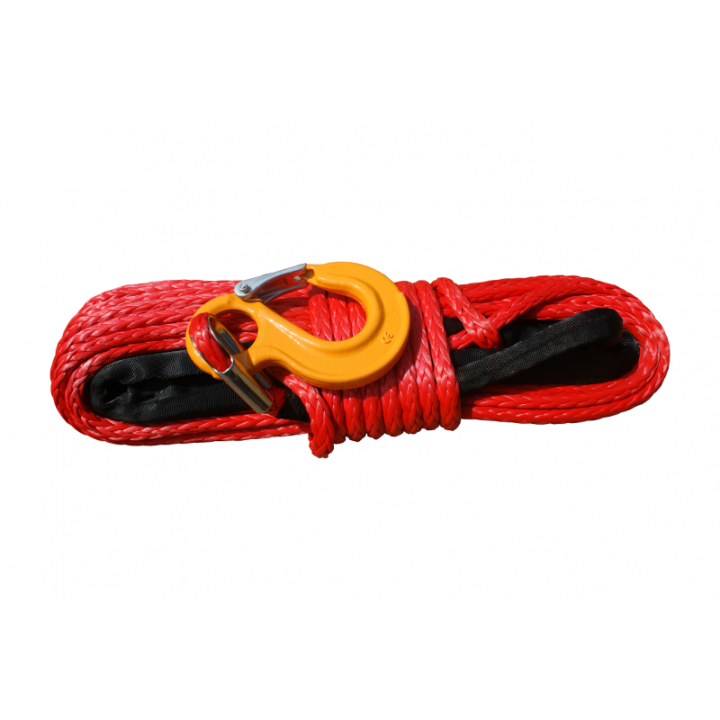

- winch with synthetic rope
- fairlead
- wireless remote control
- wired remote control
- metal relay box with cables
- hook
- mounting screws
- assembly instructions
Cable retraction speed and current consumption:
Load (lb/kg)
Speed (m/min)
Current consumption (A)
0
6.0 m
100
6000 (2722)
2.2 m
220
10000 (4536)
1.7 m
320
12500 (5670)
1.5 m
350
14000(6350)
1.4 m
380
17500 (7938)
0.9 m
450
Pull and rope length on individual spools:
Rope layer
Pull layer (kg)
Rope length on drum (m)
1
7938
6.0
2
6414
13.0
3
5381
21.0
4
4634
26.5
SHIPPING WITHIN 8/12 DAYS
