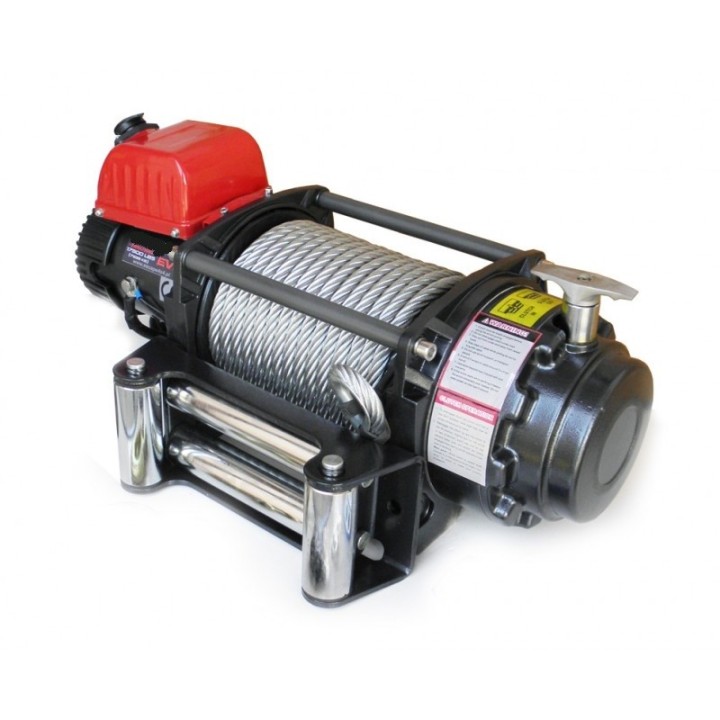

ELECTRIC WINCH EVO 17500 LB 7938kgs steel cable
Reference : ACTQ17V
ELECTRIC WINCH EVO 17500 LB 7938kgs with STEEL cable:
Available only in 24V
Very strong winch, designed for the toughest applications. The weight of the winch with cable is 67 kilograms, the cable has a thickness of 12 mm. Indestructible equipment without weak components.
It is equipped with an overload-resistant and failure-free friction brake (WARN design). The solid base of the winch, its housing and the absence of plastic elements allow the winch to serve you even longer without breakdown.
Each winch in the EVO series undergoes rigorous quality control.
Powered by a 450 amp solenoid in a metal relay box
The winch has a CE safety certificate and a 5-year door-to-door warranty (the winch is collected for service by courier at our expense) as well as full after-warranty service.
The box contains:
- winch with wound cable
- roller fairlead
- wireless remote control
- wired remote control
- metal relay box with cables
- hook
- mounting screws
- assembly instructions
12V or 24V version (please specify voltage when ordering)
Technical data:
Sliding pull: 17,500 lb (7,938 kg)
Motor: 7.1 HP/5.4 kW
Gear ratio: 430:1
Gearbox: 3-stage, planetary
Brake: Reinforced, automatic friction
Drum size: Diameter 89 mm, Length 219 mm
Rope: Steel 26.5 m; 12 mm diameter
Cable guide: Roller fairlead
Recommended battery: 650 CCA recommended starting current
Mounting holes: 254x114.3 mm

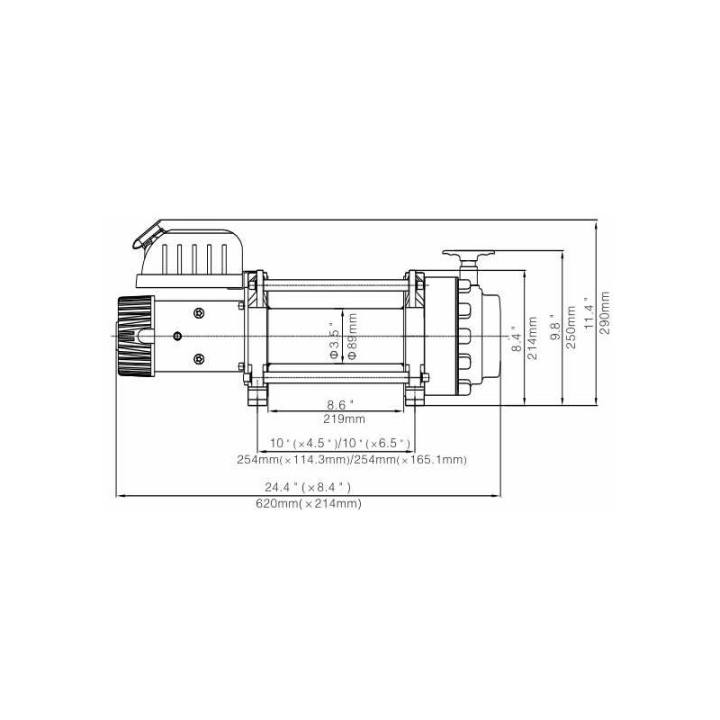

Dimensions: 620 mm × 214 mm × 290 mm
Weight: 67 kg
Control: wired and wireless
Warranty: 5 years door-to-door
Cable retraction speed and current consumption:
Load (lb/kg)
Speed (m/min)
Current consumption (A)
0
6.0 m
100
6000 (2722)
2.2 m
220
10000 (4536)
1.7 m
320
12500 (5670)
1.5 m
350
14000(6350)
1.4 m
380
17500 (7938)
0.9 m
450
Pull and amount of rope on individual spools:
Rope layer
Pull layer (kg)
Number of ropes on drum (m)
1
7938
6.0
2
6414
13.0
3
5381
21.0
4
4634
26.5
DELIVERY IN 8-12 DAYS
