SPRING KIT VOLKSWAGEN T5 2003 2015 Lift Kit 4 pieces Front Rear 30mm 30mm
Reference : ACRTRF198HV201
VOLKSWAGEN T5
(2003 - 2009 - 2015)

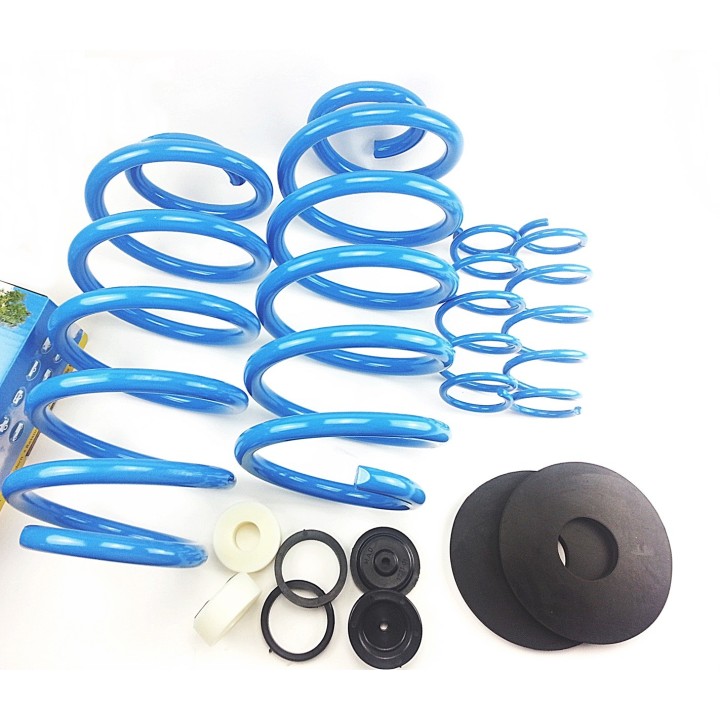

REINFORCED FRONT REAR SPRINGS SET +30 / +30mm FOR VOLKSWAGEN T5 2003-2015:

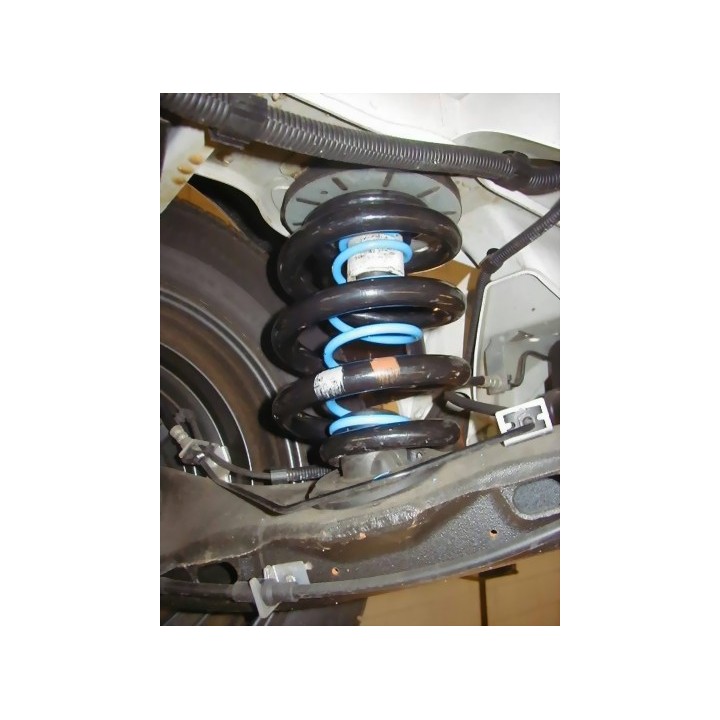

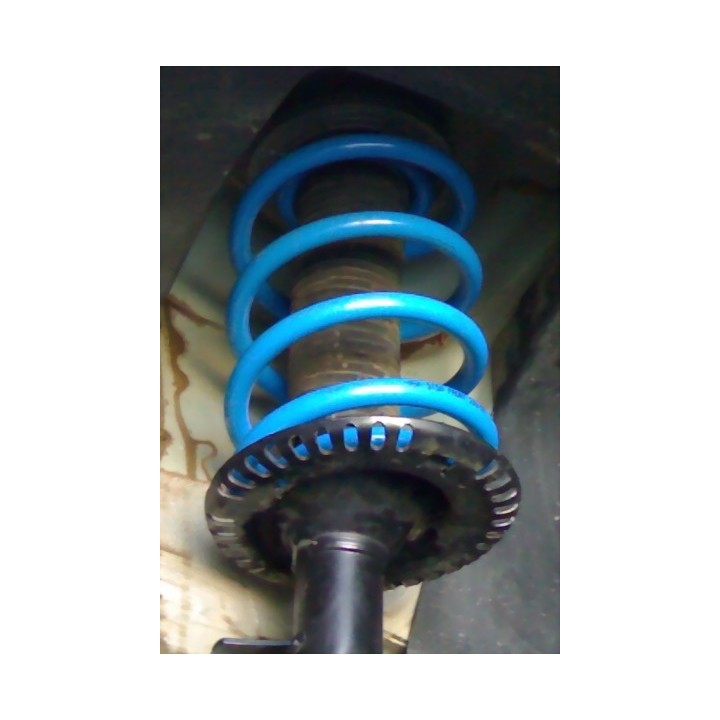

Raise the chassis by approximately 30 mm by installing chassis springs on the front axle and additional springs + filler washer, which are installed in the rear chassis springs.
This lift kit raises the car by 30 mm at the front and 30 mm at the rear, which increases ground clearance and gives the car a more pleasant appearance. The springs are progressive and become stiffer with higher loads. All MAD products are TUV approved and proven products that do not affect other parts of the car. By increasing the car's ground clearance, you can fit larger tires and rims and give the car better off-road performance.
Lift springs replace the car's original suspension. They raise the car by 30 mm at the front and 30 mm at the rear, the exact height for each car model is indicated in the product information. Suitable for anyone who wants to increase the car's ground clearance and achieve a nicer look and better off-road capabilities. This set is recommended for those who drive with varied loads up to 400 kg.
Suitable for the following car models below:
- VW Transporter T5/T6 1.9 incl. Syncro "4WD" 05/2003+, Front and rear lift kit 5/3 cm
- VW Transporter T5/T6 2.0TDi (62.75 kW) with Syncro "4WD" engine "4WD" 05/2003+, Front and rear lift kit 4.5/3 cm
- VW Transporter T5/T6 2.0TDi (103 kW) incl. Syncro "4WD" 05/2003+, Front and rear lift kit 3/3 cm
- VW Transporter T5/T6 2.0TDi (132 kW) incl. Syncro "4WD" 05/2003+, Front and rear lift kit 3/3 cm
- VW Transporter T5/T6 2.5TDi and 3.2V6 incl. Syncro "4WD" 05/2003+, Front and rear lift kit 4/3 cm
We recommend performing a four-wheel alignment after installing this product, otherwise your tires will wear unevenly. Drive the car for 2 to 3 km before adjusting the front suspension.
MAD's suspension system is designed to compensate for different load weights and to support and assist the car's original suspension system so that safety and comfort are maintained even at the maximum allowed load. The suspension never increases the maximum allowed load weight for the car.
advantages:
- Increased safety for you and your fellow road users!
- Better road holding at maximum load.
- Better driving comfort at maximum load.
- The car maintains its original height at maximum (allowed) load.
- The car's original suspension benefits from more working space at maximum load.
- All springs are progressive.
- The entire assembly is carried out without damaging the bodywork, so the product does not affect the car's warranties.
- Assembly time approximately 1H per side at the front and 1.5H at the rear plus front chassis adjustment.
DELIVERY WITHIN 8-10 DAYS
