Lift Kit SUZUKI JIMNY 2018 2025 SET Suspension + 35mm SUPERIOR Front +30kg Rear +60kg
Reference : ACSE46055
SUZUKI JIMNY
(2018 - 2025)
Lift Kit SUZUKI JIMNY 2018 2025 SET Suspension + 35mm SUPERIOR Front +30kg Rear +60kg:
Superior Engineering's Nitro 2.0 IFP smooth body shock absorbers benefit from the latest technologies to transform your SUV's performance. They use our race-proven damping system for on-road ride comfort and predictable off-road handling, even in the toughest conditions. The precision metal-impact aluminum body increases cooling capacity. You'll find our race-proven performance valve technology. The internal floating piston (IFP) monotube design separates the shock oil from the high-pressure nitrogen-charged gas chamber. The IFP eliminates oil aeration, allowing for maximum performance through the factory-tuned precision valve. The set includes front and rear linear springs. They offer much superior damping to original springs and optimize response to road imperfections.
Get ready for unparalleled off-road adventures with Superior Engineering's 1.5" lift kit. The crossmember drop kit prevents the driveshaft from rubbing against the crossmember, while extended brake lines alleviate tension issues on lifted vehicles. Caster correction bushings help restore the front wheel caster angle to factory specifications after lifting the vehicle and improve steering feel and self-centering.
With a lifted Jimny and LED headlights, you'll notice that the headlight beam is directed upwards, as the sensor cannot compensate for the change in suspension geometry. The headlight adjustment bracket, by extending the mounting points, allows for correcting the level sensor angle and adjusting the headlight beam in the correct direction.
- Specifications:
- Professional lift kit, designed to fit your vehicle
- Additional front load up to 30 kg
- Additional rear load up to 60 kg
- Suitable for on-road and off-road environments
- Improves handling and ride of the lifted vehicle
- Caster correction bushings restore front wheel caster angle to factory specifications
- Crossmember lift kit eliminates driveshaft rubbing on the crossmember
- Extended brake lines eliminate the effect of excessive tension on lines of lifted vehicles
- Headlight adjustment brackets allow for easy adjustment of headlight level sensor angle

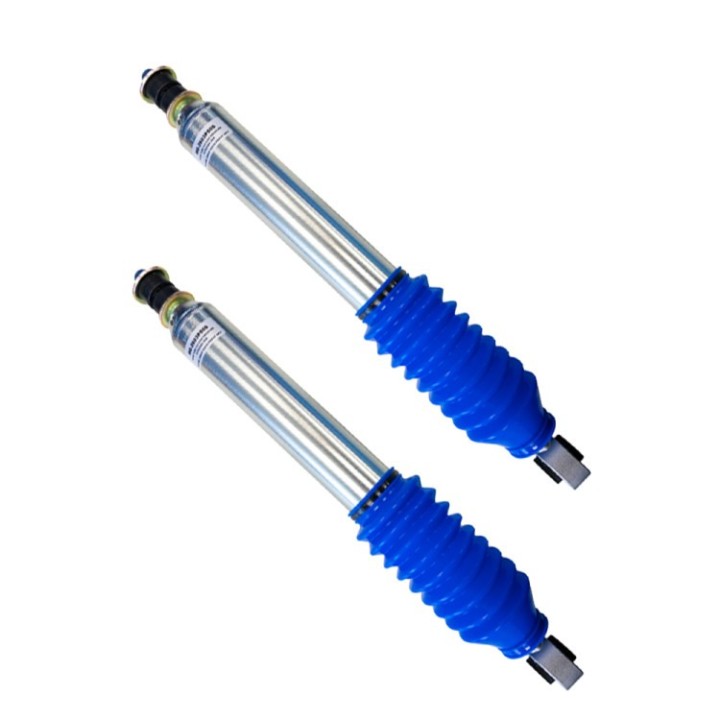

Shock absorber features:
20mm diameter polished chrome steel rod
Internal IFP piston separating oil from high-pressure nitrogen
Robust rubber bushings
Welded clamps and eyelets for a strong mounting point
All 40mm gas shock absorbers come with a rubber protective boot
Front shock absorber mounts:
Upper mount: eyelet
Lower mount: eyelet
Front shock absorber dimensions:
Open: 496 mm
Closed: 336 mm
Travel: 160 mm
Rear shock absorber mounts:
Upper mount: strut
Lower mount: eyelet
Rear shock absorber dimensions:
Open: 448 mm
Closed: 303 mm
Travel: 145 mm

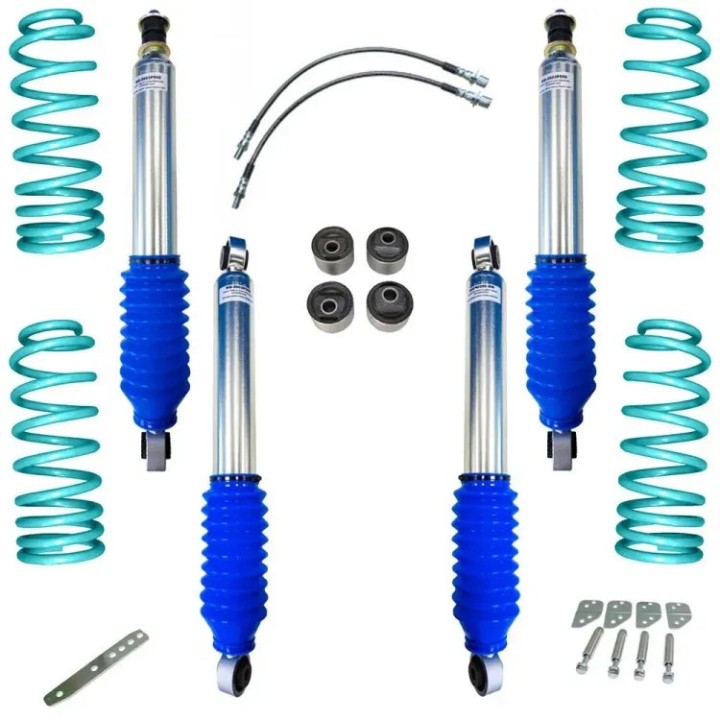

THIS KIT INCLUDES:
(2) Front shock absorber
(2) Front spring
(2) Rear shock absorber
(2) Rear spring
(2) Extended braided rear brake line
Crossmember drop kit
Headlight adjustment bracket
(4) Front Radius polyurethane suspension arm bushing
If there are rear axle vibrations, we recommend replacing the rear control arm bushings with SE34600 bushings (sold separately)
ILLUSTRATIVE IMAGE
