LIFTING CRANE FOR PICK UP
Reference : ACIDMMW01

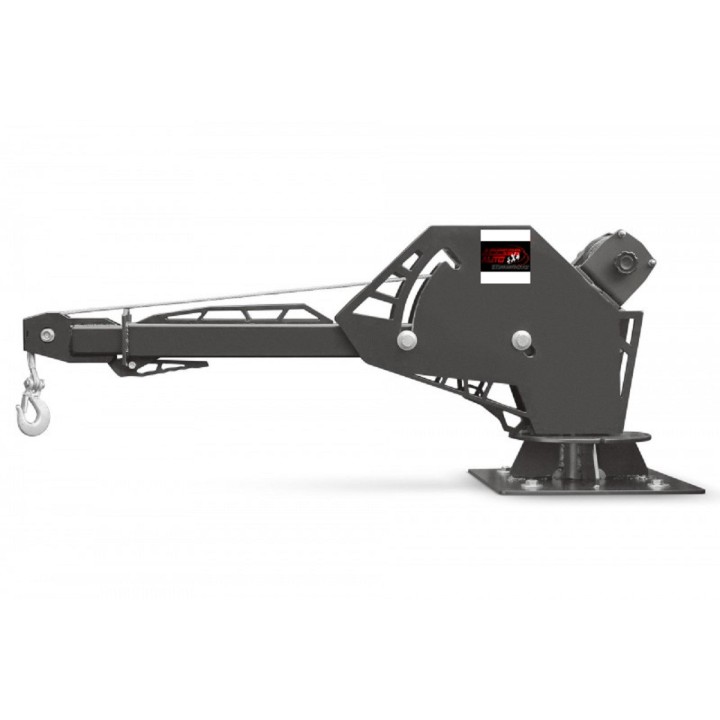

LIFTING CRANE FOR PICK UP :
delivered complete with its fastening system

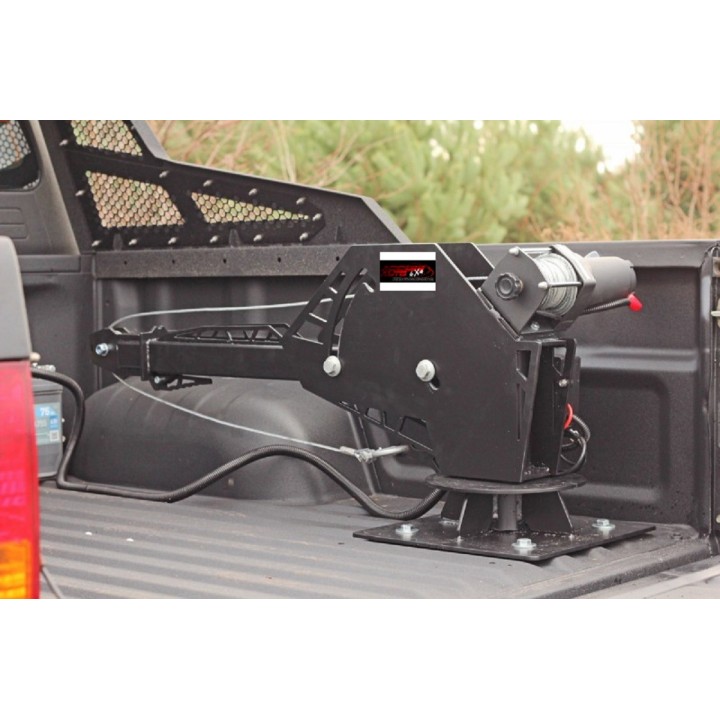

Swiveling mounting plate for boom winch
Dedicated to : Pick-up body cars
Application : Versions with open bed (without hardtop)

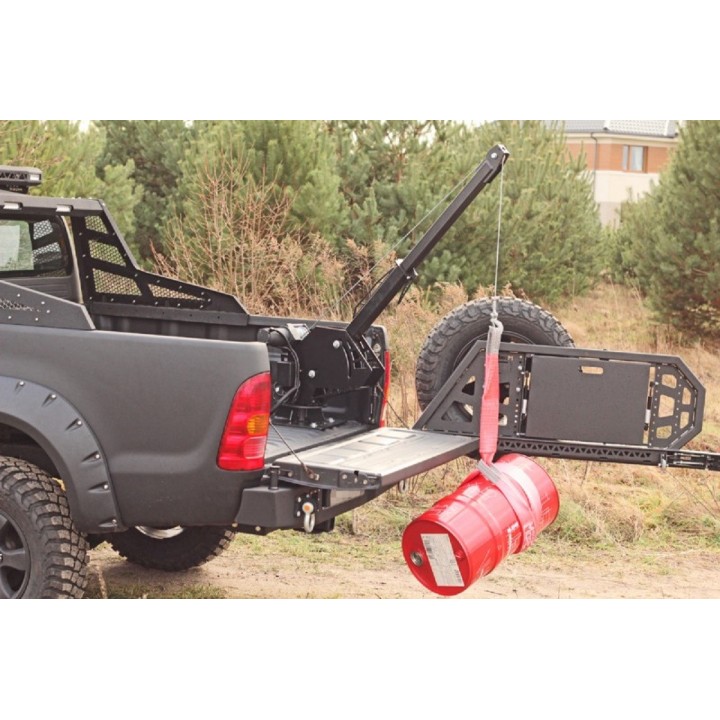

This is an excellent option for craftsmen or hunters and those who transport heavy objects with their pick-up

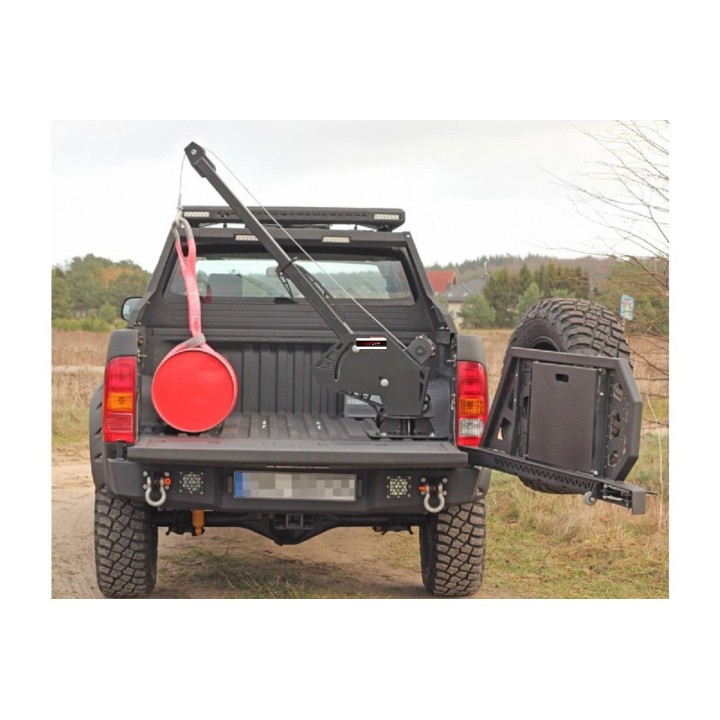

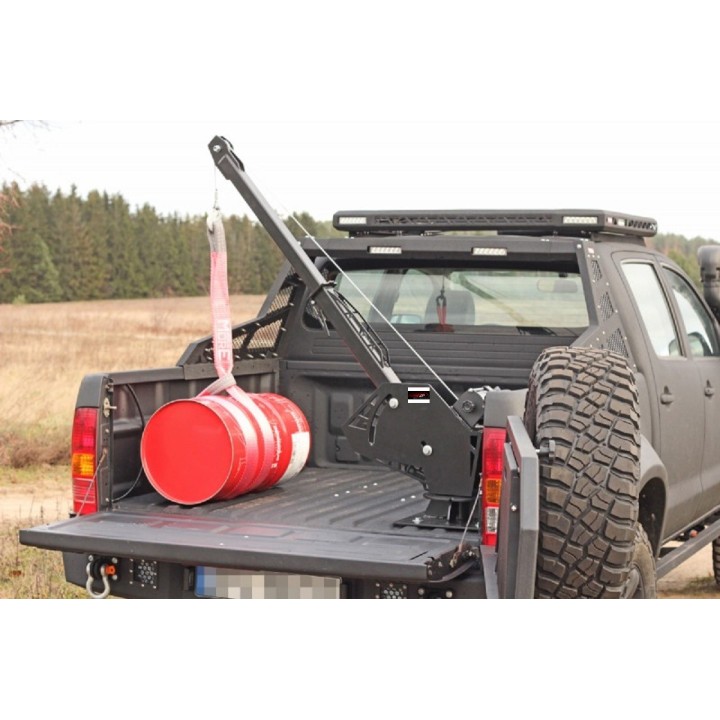

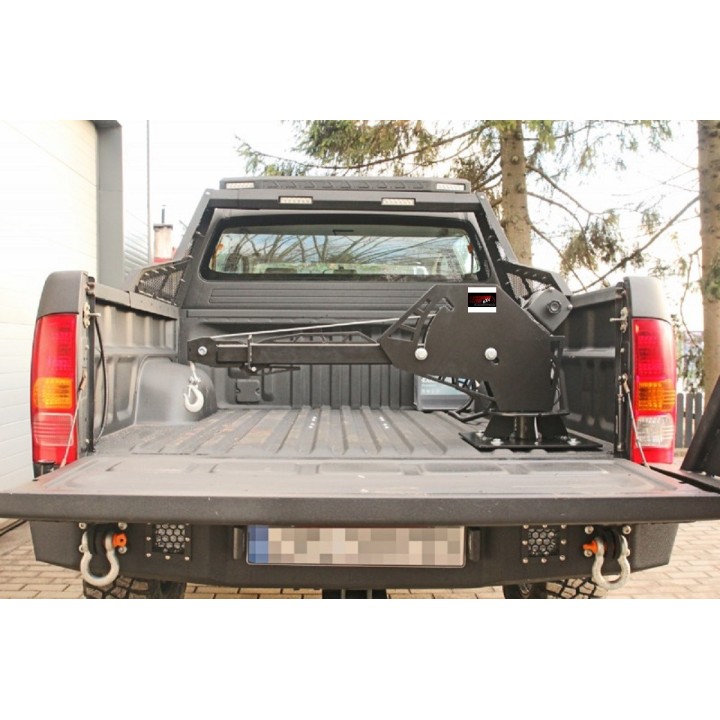

The complex structure is locked on the side in the transport position, allowing virtually the entire floor area of the vehicle's bed to be used. The mounting plate and the winch are placed at a height allowing the use of the box cover and the roller shutter.
1500 kgs electric winch included.
Maximum load capacity of 150 kg thanks to the durability of the pick-up floor. The structure is made of 4 to 6 mm steel, black powder-coated.

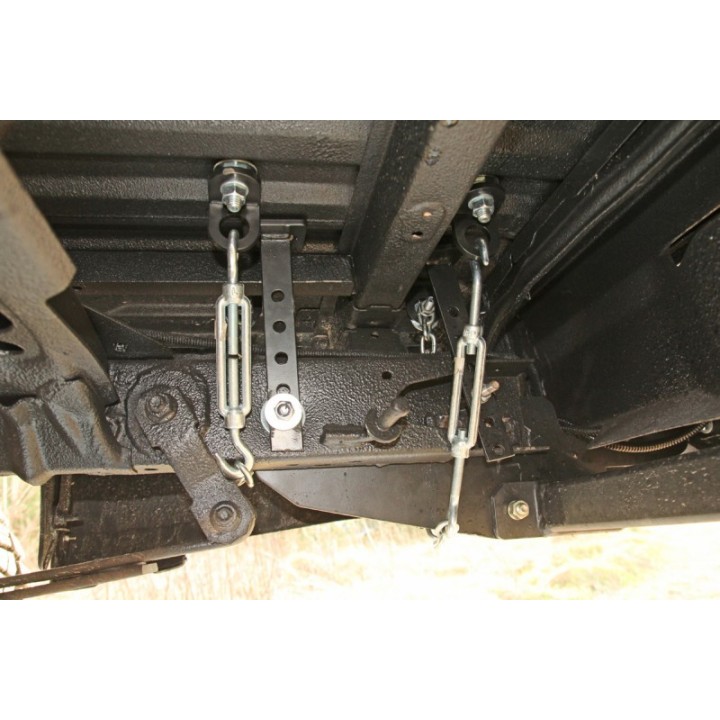

Chassis supports and fastening chains supplied with tensioners are necessary due to the weakness of the vehicle's floor structure and the need to stiffen it.
Technical data:
- Maximum load capacity: 150 kg (limited by the car's floor structure)
- Winch power: 1360 kg / 3000 lbs
- Height after folding (in the truck): 43cm
- Material: Steel 4-6 mm
- Weight: approximately 38 kg
Delivery times
Delivery within 15-18 DAYS
