Sliding Drawer Tray for GMC SIERRA 130 x 100 cms
Reference : ACPU130TS
€1,750.00
Tax included
GMC SIERRA

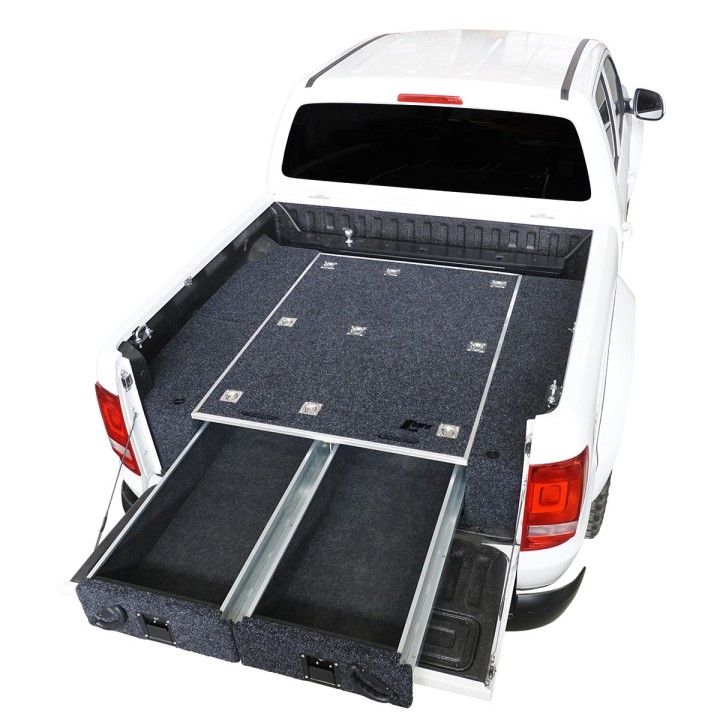

SLIDING TRAY AND DRAWER FOR GMC SIERRA:
This system has been developed and built for the professional sector and will be perfectly suited for pick-ups equipped with hardtops or tonneau covers.

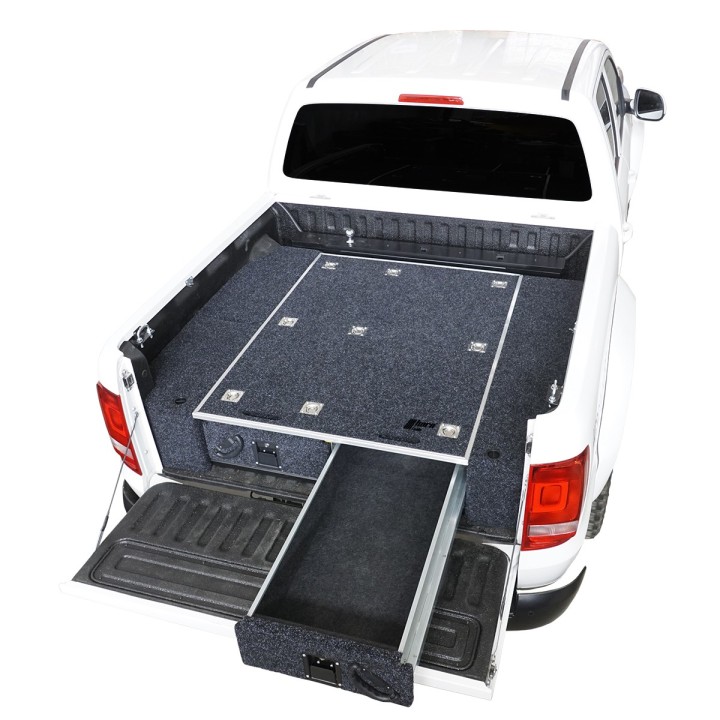

The drawers significantly increase storage space and at the same time ensure structured storage.
Our drawer bottom is made of very high quality galvanized steel.
Ball bearings ensure that it can be smoothly pulled in and out, even under heavy loads.
The complete system can be loaded with 300 kg, the drawers and the slide with 150 kg each.
We use a total of 124 ball bearings for the longitudinal and lateral guides of the system.
Like the drawers, the upper drawer is equipped with ball bearings and a reinforced locking mechanism.
Like the drawers, the upper drawer is equipped with ball bearings and a reinforced locking mechanism.

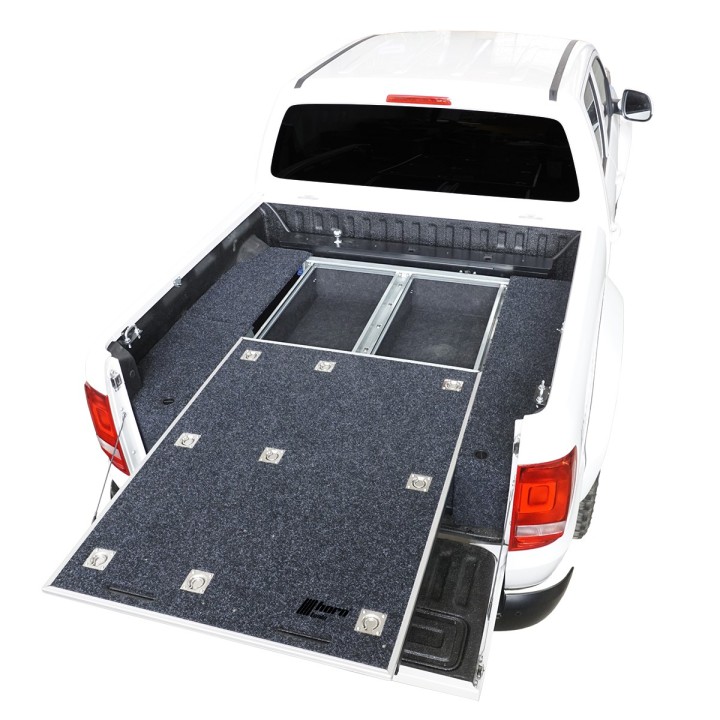

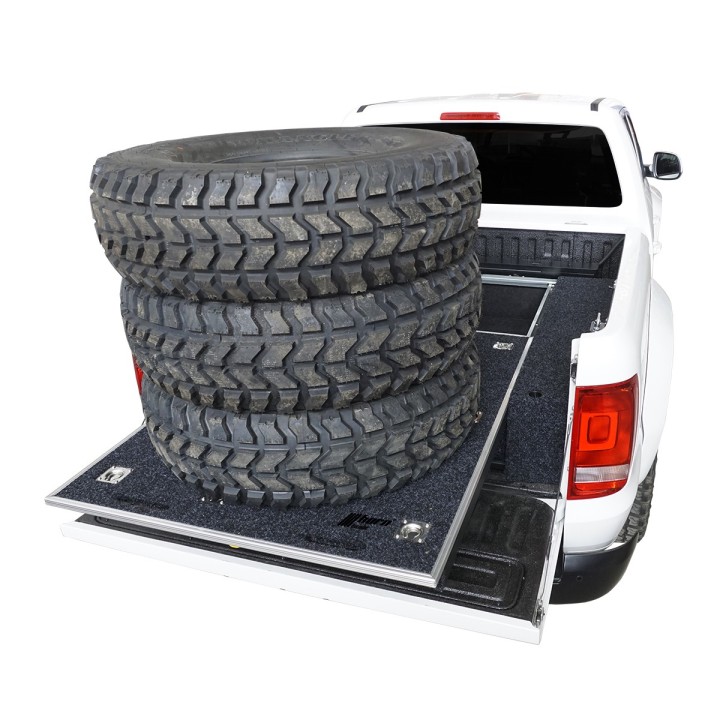

The special feature of this model is that it is fully sliding across the entire width. This extension
can be used for cool boxes or other equipment.
At the same time, something can be repaired on the other side.
The panels used have a thickness of 12 mm.
On top of this is a 6.5 mm thick wood chip outdoor mat that can withstand extreme loads. Thanks to its
non-slip properties, it also supports load securing. In addition, the upper drawer has

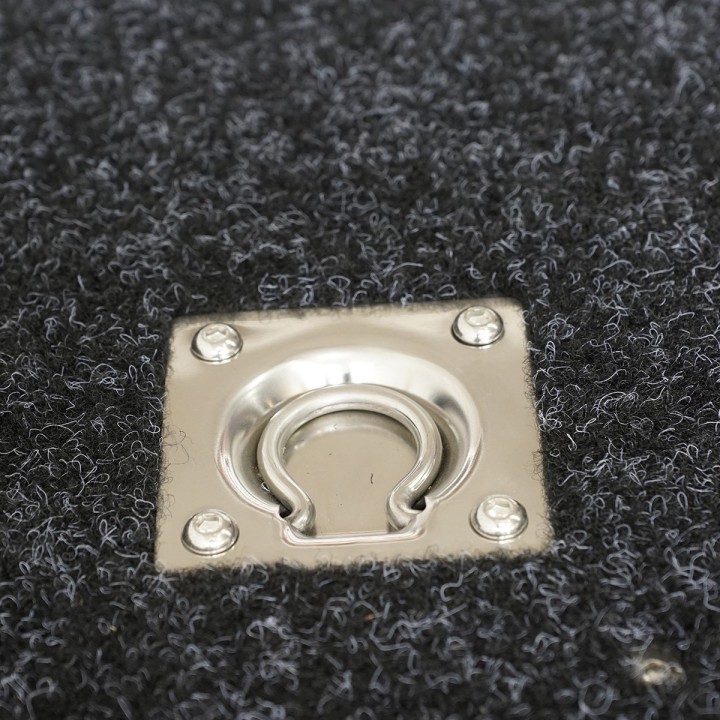

9 strong lashing eyes. In addition, rubber stoppers dampen vibrations and reduce rattling noises.
In addition, for this drawer tray system: we offer side panels to create a straight loading floor again, thus
The panels used have a thickness of 12 mm.
On top of this is a 6.5 mm thick wood chip outdoor mat that can withstand extreme loads. Thanks to its
non-slip properties, it also supports load securing. In addition, the upper drawer has
9 strong lashing eyes. In addition, rubber stoppers dampen vibrations and reduce rattling noises.
In addition, for this drawer tray system: we offer side panels to create a straight loading floor again, thus
the side panels can also be used as storage compartments.

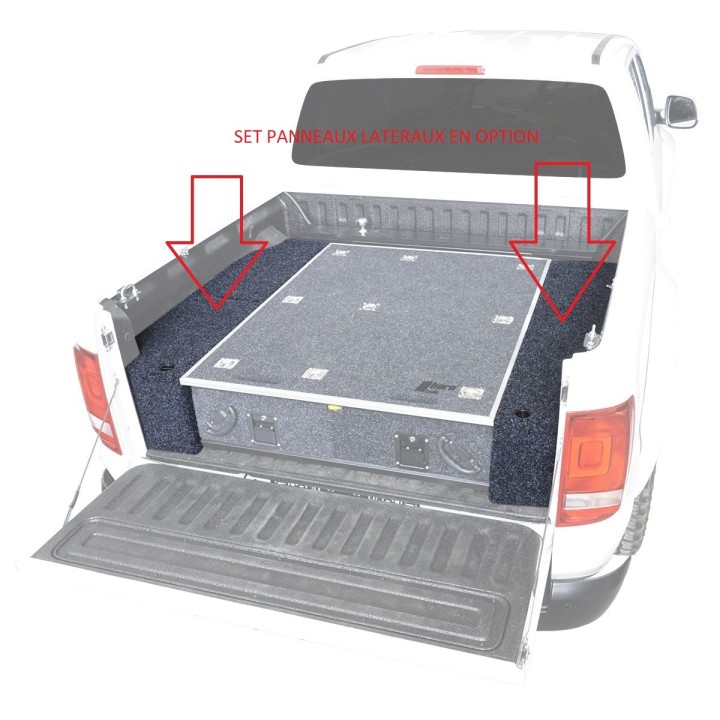

(OPTIONAL SIDE PANELS FOR SLIDING TRAY - DRAWER)

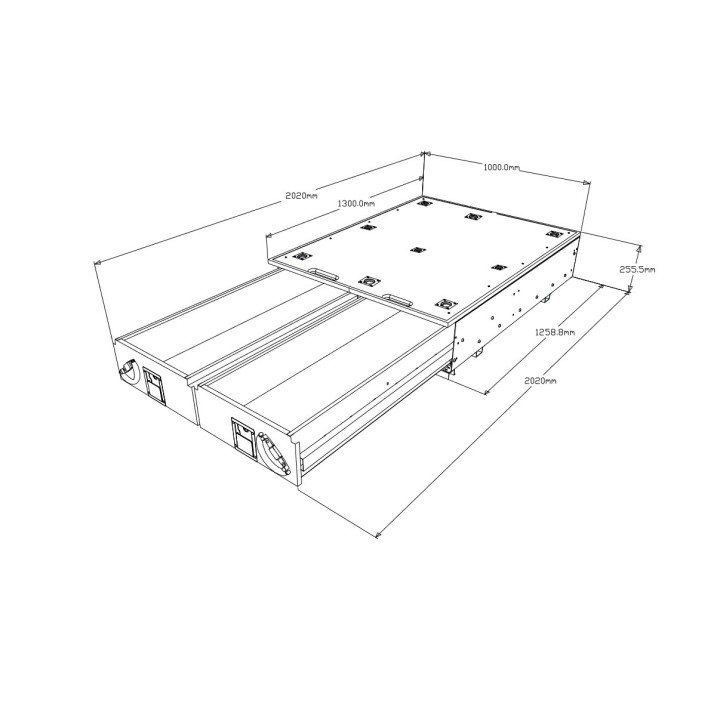

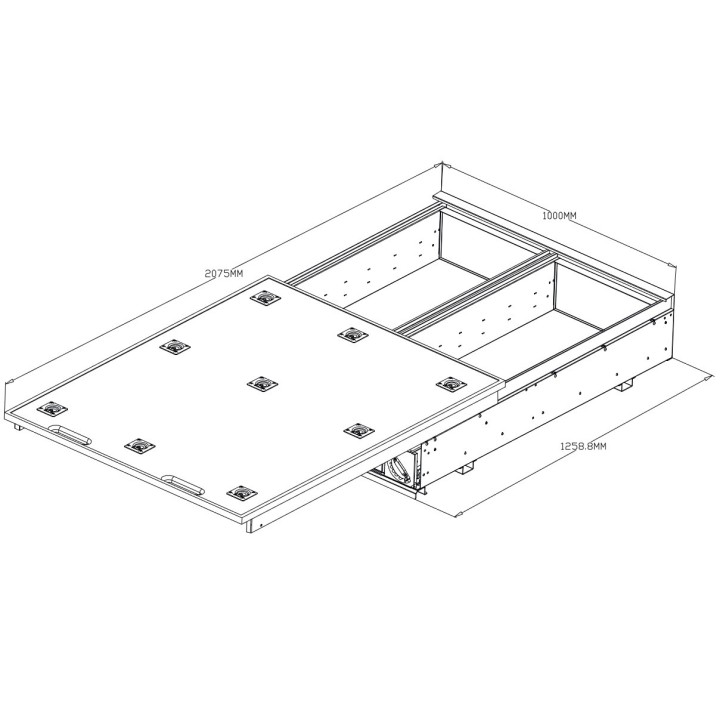

Technical specifications:
- Internal dimensions (LxWxH): 120 x 41 x 19 cm
- Weight: 103 kg
- Package dimensions (LxWxH): 135 x 103 x 31.5 cm
- Installation time: approximately 4 hours
Holes must be drilled in the loading area for installation.
DELIVERY TIME 1-2 WEEKS
