MERCEDES SPRINTER 2006 TO PRESENT SET Reinforced FRONT Springs + 30/35mm for KONI 8705-1330 Shock Absorbers Only
Reference : ACRF098HV273
MERCEDES SPRINTER W907 (3.0T / 5.0T)
(2019 - PRESENT)
MERCEDES SPRINTER 2006 TO PRESENT SET Reinforced FRONT Springs + 30/35mm for KONI 8705-1330 Shock Absorbers Only:
Auxiliary front springs, for KONI 8705-1330 shock absorbers only. Wheel spacers may be required; please consult the installation manual. Chassis-cab included.
The “Reinforced Springs” lift springs replace the vehicle's original suspension. They raise the front of the vehicle by approximately 30 to 35 mm; the exact lift for each model is indicated in the product sheet. Suitable for those who wish to increase their vehicle's ground clearance.
Before installing the MAD suspension kit, perform the following measurement:
measure the distance “X” between the dust cover and the tire, on each side of the vehicle.
The smallest measurement of X is decisive (see figure 1 in the instructions below).
Note the smallest measurement of X: ……..mm.
X > 23 mm: the use of wheel spacers is not necessary.
X = 11-22 mm: use wheel spacers of at least 15 mm.
-
Suitable for the following vans:
- Mercedes Sprinter 2006+: the vehicle must be equipped with front spacers to allow for their installation. Also suitable for 5.0T chassis and camper vans.
- Also suitable for Sprinter with dual rear wheels.
We recommend having your front suspension geometry adjusted after installing this product, as your tires will wear unevenly. Drive approximately 2 to 3 km before proceeding with the adjustment to allow your vehicle to adapt to the new front springs.
The MAD suspension system is designed to compensate for load variations and to support and assist the vehicle's original suspension system, ensuring safety and comfort even at the maximum authorized load. The suspensions never exceed the vehicle's maximum authorized load.
BENEFITS:
- Increased safety for you and other road users!
- Better handling at maximum load.
- Improved driving comfort at maximum load.
- The vehicle maintains its original height at maximum (authorized) load.
- The vehicle's original suspension has greater leeway at maximum load.
- All springs are progressive.
- The assembly is done entirely without damaging the bodywork, so the product does not affect the vehicle's warranties.
- Installation time: approximately 1.5 hours per side, plus front alignment adjustment.

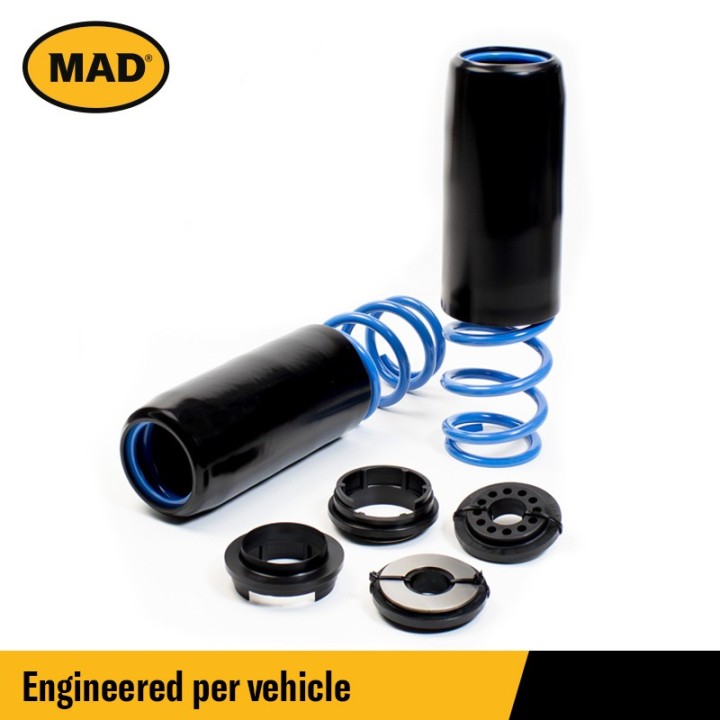

All images are universal for the respective mounting system. The appearance of the springs, bellows, and supports may slightly differ from the images shown, but they will always fit the vehicle for which the kit is designed.
DELIVERY WITHIN 10-15 DAYS
