MERCEDES SPRINTER 2006 TODAY SET Reinforced FRONT Springs + 35mm
Reference : ACRF098HV123
MERCEDES SPRINTER 3.5 T W906 - W907
(2006 - 2017 - TODAY)

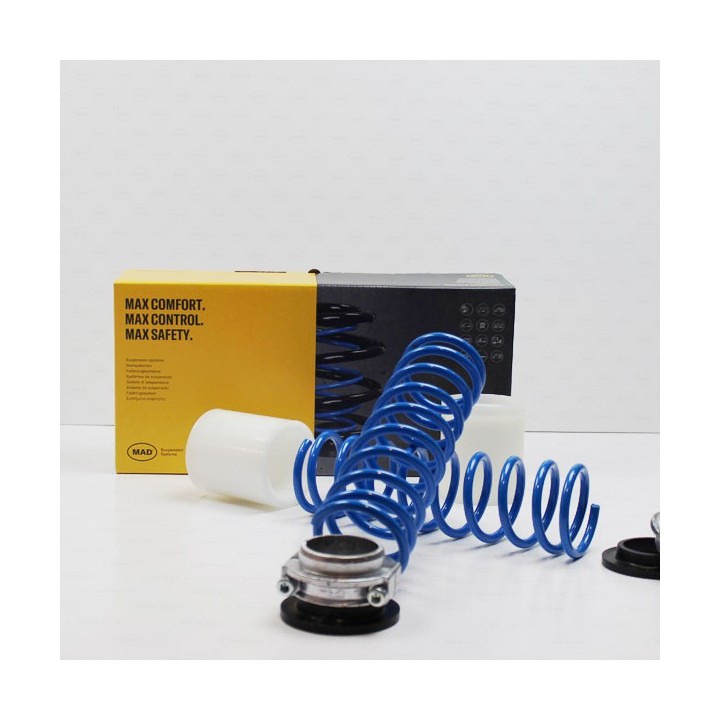

Complete kit of reinforced front springs +35mm MERCEDES SPRINTER 2006-TODAY:
-
The "Reinforcement Springs" lifting springs replace the car's original suspension. They raise the car at the front by approximately 30 to 35 mm, the exact lift for each car model appears in the product information. Suitable for those who wish to increase the car's ground clearance.
Before installing the MAD suspension kit, the following measurement must be taken.
Measure the distance "X" between the dust cover and the tire on both sides of the vehicle.
The smallest measured X dimension is decisive (see figure 1 in the instructions below).
Note the smallest measured dimension X: ……..mm.
X > 23 mm: The use of wheel spacers is not necessary.X = 11-22 mm: Use wheel spacers of at least 15 mm.
-
Suitable for the following vans:
- Mercedes Sprinter 2006+ The car must be equipped with front spacers for them to fit. Also suitable for 5.0T chassis and motorhomes.
We recommend performing a front wheel alignment after installing this product, otherwise your tires will wear out sideways. Drive approximately 2 to 3 km before adjusting the front suspension so that the car has time to settle with the new front springs.
The MAD suspension system is there to compensate for different load weights and to support and assist the car's original spring system so that you maintain safety and comfort even at the maximum allowed load. Suspensions never increase the maximum allowed load weight for the car.
ADVANTAGES:
- Increased safety for you and your fellow road users!
- Better road holding at maximum load.
- Better driving comfort at maximum load.
- The car maintains its original height under maximum (allowed) load.
- The car's original suspension offers more working space at maximum load.
- All springs are progressive.
- All assembly is done without affecting the bodywork, so the product does not affect the car's warranties
- Assembly time approximately 1H per side plus front axle adjustment.
- Package dimensions: 42 x 38 x 22.
- Weight: 11 kg
DELIVERY WITHIN 10-15 DAYS
