JEEP GLADIATOR 2020 TODAY Steering Damper Fox Factory Race 2.0 Reservoir adjustable ATS
Reference : ACJW02148
JEEP GLADIATOR JT
(2020 - TODAY-)

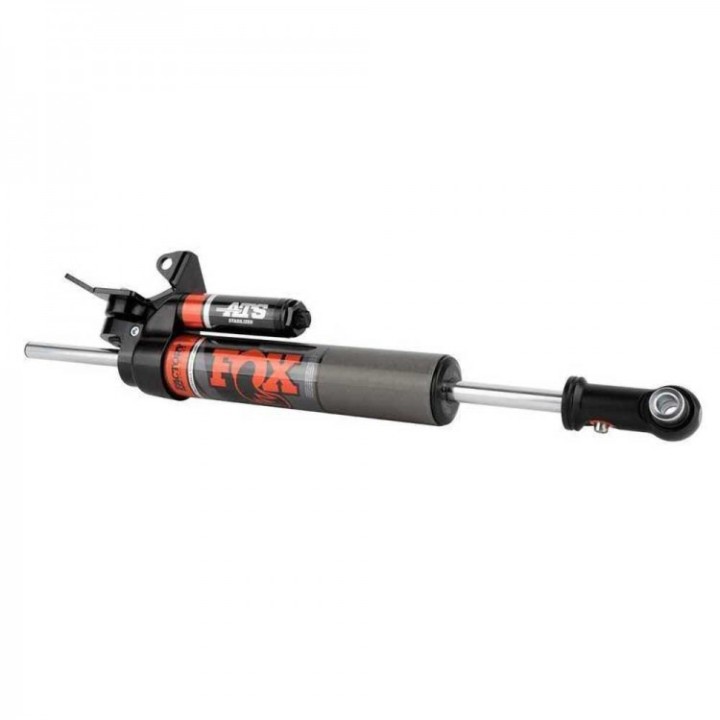

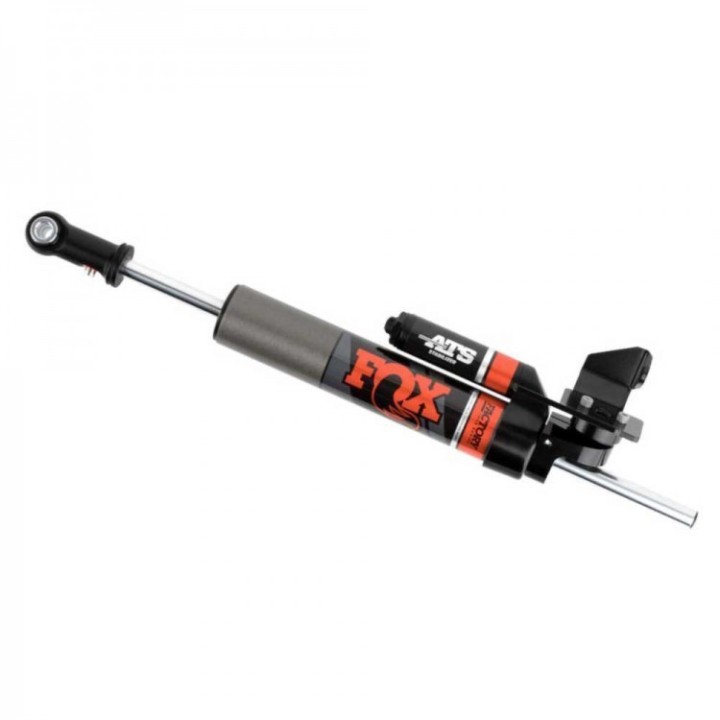

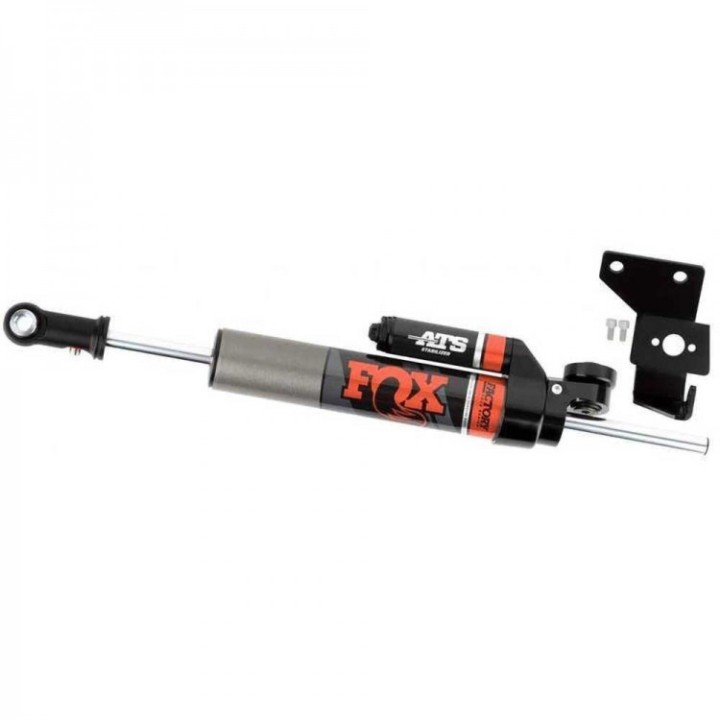

FOX PERFORMANCE DOUBLE STEERING DAMPER for JEEP GLADIATOR 2020-TODAY:
Fox Factory Race 2.0 Reservoir adjustable ATS
Fox Factory Race Series 2.0 shocks significantly improve car handling and control during intensive on-road and off-road use. Inspired by the high-performance shock series used in professional motorsports, they are designed to meet the needs of the most demanding off-road enthusiasts. Experience the incredible performance and control of your car.
The external reservoir provides additional fluid capacity and uses an internal floating piston (IFP) to separate the fluid from the Nitro nitrogen charge to eliminate cavitation. For increased control that can be adapted to any driving style and configuration, an external adjuster provides 24 clicks of adjustment to fine-tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single bolt-on stabilizer.
The ATS (Adjustable Through Shaft) architecture eliminates fluid displacement from the shaft throughout the stabilizer's stroke in both directions. The stabilizer is equipped with a slotted adjustment screw on the eyelet that affects steering damping. Turning the adjustment screw clockwise will increase damping, making the steering firmer, while adjusting counter-clockwise will decrease damping and steering resistance.
Specifications:
Body: 2.0-inch impact-extruded and CNC-machined 6061-T6 clear anodized aluminum body resists rust over time
Body: Hard anodized plating for a durable finish
Reservoir: External reservoir design separates shock oil from high-pressure nitrogen
Components: CNC-machined 6061-T6 aluminum, black anodized
Shaft: 5/8" hard chrome-plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings: Quiet nitrile rubber allows for increased suspension articulation
Adjustments: Adjuster - 24 clicks of adjustment
Steering system resistance and damping adjustment screw
Dimensions:
Extended: 23.19"
Compressed: 15.07"
Travel: 8.12"
Upper Mount: Axle mount
Lower Mount: Eyelet

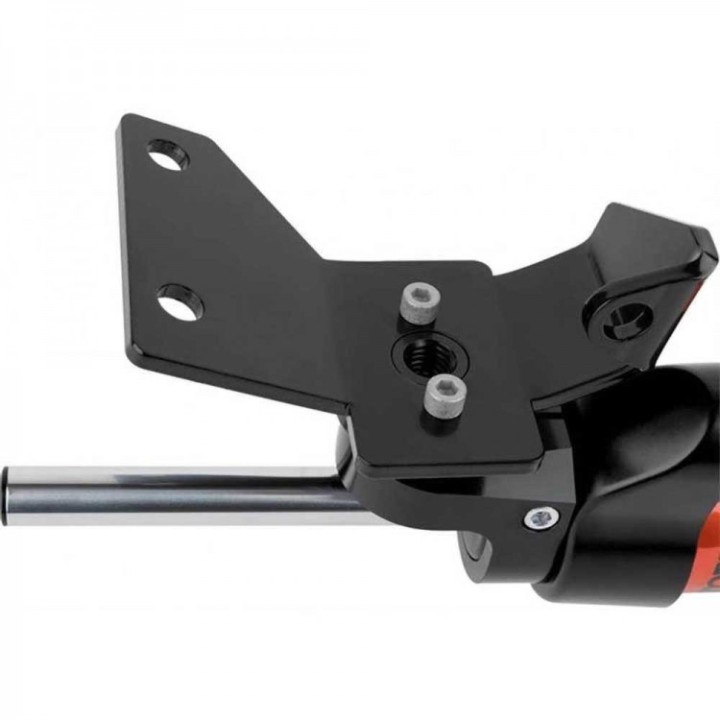

For 21-present models, requires an aftermarket steering stabilizer mounting bolt. We recommend K06510774AA (sold with this damper)
DELIVERY WITHIN 8-10 DAYS (limited quantity)
