Suspension Kit FORD RANGER 3.0 V6 2023 TODAY Lift + 5cms PEDDERS

FORD RANGER T9 3.0L V6

(2023 - TODAY-)

PEDDERS SUSPENSION LIFT KIT +5 cms for FORD RANGER 3.0L V6 2023-TODAY:

Improved aesthetics, driving comfort, ground clearance and loading. Are you considering upgrading your 2023+ Ford Ranger? Do you want a better driving experience? Then Pedders Suspension has the solution for you.

This kit includes our excellent Pedders TrakRyder Foam Cell front and rear shock absorbers, front coil springs, new rear leaf springs and the necessary bushings and U-bolts to install them. This is our Premium Lift kit and is primarily designed to lift your car by 50mm. The load capacity will be the same as original but you now get a taller car and the same comfort.

This kit will raise the vehicle by approx. 50 mm which gives better ground clearance and an improved appearance. Can be used to accommodate larger tires. The dimensions indicated assume a standard vehicle.

These components replace the original elements. No other vehicle modifications are necessary. After installation, we strongly recommend performing a wheel alignment for optimal performance of your vehicle.
Still not sure if this kit is for you? Do you have other questions? Then contact a member of our Lastantungt team who can help you.

Pedder Australia

Pedders is Australia's number 1 manufacturer of a complete range of products and services for all suspension, braking, towing, load carrying and steering needs, suitable for passenger cars, 4X4s, vans, pickups and race cars. For each new chassis, Pedders develops an integrated and technical suspension solution. Whether it's OEM quality replacement parts, performance parts or passenger cars or robust off-road suspensions, they are one of the few manufacturers to offer a complete solution.

While Pedders started as a shock absorber company, today it is unique in that it offers a "system" that it designs, manufactures, distributes and also installs in Australia under the Pedders brand.

TrakRyder Foam Cell Shock Absorber

Foam cell shock absorbers provide a larger cooling area to improve shock absorber performance and durability by allowing full oil contact with the inner and outer casing. The foam cell technology present in Pedders TrakRyder shock absorbers virtually eliminates all harsh impacts by eliminating oil and air mixing, thus ensuring optimal damping control in all conditions. The 40mm bore and piston are much larger than original shock absorbers and offer a significantly increased improvement in ride.

Pedders Coil Springs

Pedders coil springs belong to the premium variant and are manufactured according to ISO 9001 standard with a tolerance of only +/-2 mm at load height. Pedders springs are simply unmatched in terms of vehicle handling, appearance and performance.

The design and manufacture of coil springs is a craft that requires strict adherence to a series of rigorous procedures, all essential to the performance of the final product. The spring stiffness, or rate, must be adapted to the weight of the vehicle it is fitted to, as well as the weight of other suspension components and wheels the car is equipped with. Spring stiffness also controls roll stiffness or body roll.

By reducing roll, we reduce the number of wheel changes. Significant camber adjustments can significantly reduce the tire's contact patch with the road, thereby limiting the vehicle's handling potential in corners. The handling of most vehicles is greatly improved by increasing the initial spring stiffness to an optimal rate that maximizes tire grip and reduces roll for better handling. Increasing spring stiffness beyond the optimal value degrades handling potential as tires begin to skip over bumps, reducing grip and safety.

The kit contains the following items:

• 151407 - Pedders TrakRyder Foam Cell Shock Absorber
• 154407 - Pedders TrakRyder Foam Cell Shock Absorber
• 290407 - Pedders TrakRyder Coil Spring
• 434005 - Square U-bolt 60 x 13 x 225 mm
• 6299 - Pedders Trakryder Leaf Spring
• 75-0006 - Leaf Spring Adapter (pair) - PX3-P703
• EP8415 - Urethane Leaf Spring Rear Eye Bushing (4PKT)

Compatible with the following car models:

• Ford Ranger P703 3.0 V6 2023+ P703 3.0 V6

We recommend performing a front wheel alignment after installing this product, otherwise your tires will wear out. Drive the car 2 to 3 km before adjusting the front suspension.

• Increased safety for you and your fellow road users!
• Warranty: 2 years / 40,000 km
• Better handling at maximum load.
• Better driving comfort at maximum load.
• All springs are progressive.
• The entire assembly is carried out without affecting the bodywork, so the product does not affect the car's warranties
• Assembly time approximately 1 hour per side at the front and 2.5 hours at the rear.

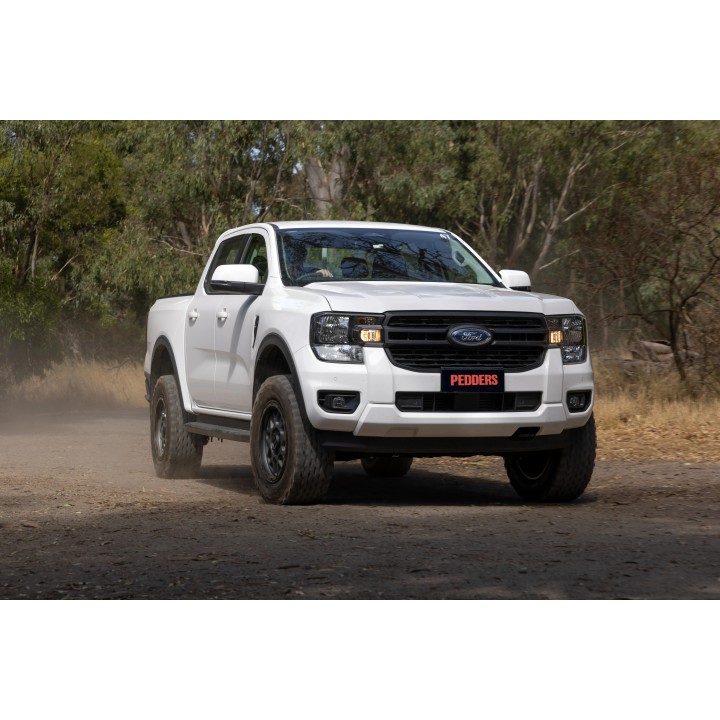

ILLUSTRATION IMAGE

This Australian brand offers the best products on the market: 60 years of research and development were necessary, a particular attention to the demands made by their customers allowed them to achieve this result. These shock absorbers offer you a High-end suspension, extraordinary performance whatever your use Road or Off-Road. Confident in the quality of their products, Pedders offers a warranty of 2 years or 40,000 km

DELIVERY WITHIN 8-10 DAYS
