FORD RANGER 3.0 V6 2023 TODAY Suspension Kit Lift + 5cms PEDDERS HD + 300kgs

FORD RANGER T9 3.0L V6

(2023 - TODAY-)

PEDDERS HD +300 kgs LIFT +5 cms SUSPENSION KIT for FORD RANGER 3.0L V6 2023-TODAY:

Improved aesthetics, driving comfort, ground clearance and loading. Are you considering upgrading your Ford Ranger 2023+? Do you want a better driving experience? Then Pedders Suspension has the solution for you.

This kit includes our excellent Pedders TrakRyder Foam Cell front and rear shock absorbers, front coil springs, new rear leaf springs and the necessary bushings and U-bolts to install them. This is our Premium Lift kit and is primarily designed to be able to load and tow heavy loads with the vehicle. So, if you load a lot today and often tow a heavy trailer, this kit is the ultimate for you and your car.

This kit does NOT reduce the load capacity compared to the standard Ford Ranger rear spring. However, our rear spring, combined with our specially vented shock absorber, improves unladen driving, removing some of the harshness that can be felt in the standard vehicle on poor road conditions. For more information on how we achieve this, please refer to our technical pages.

This kit will raise the vehicle by approx. 50 mm which gives better ground clearance and an improved appearance. Can be used to accommodate larger tires. The dimensions indicated assume a standard vehicle. If you have additional equipment mounted at the front such as a winch or a bull bar, this will affect the final installation height. If this is the case, please contact us as it may be necessary to provide different springs for your application.

These components replace the original elements. No other vehicle modifications are necessary. After installation, we strongly recommend performing a wheel alignment for optimal performance of your vehicle.
Still not sure if this kit is for you? Do you have other questions? Then contact a member of our Lastantungt team who can help you.

We recommend loading at least 300 kg at the rear at all times.

Pedder Australia

Pedders is Australia's number 1 manufacturer of a complete range of products and services for all suspension, braking, towing, load carrying and steering needs, suitable for passenger cars, 4X4s, vans, pickups and racing cars. For each new chassis, Pedders develops an integrated and technical suspension solution. Whether it's OEM quality replacement parts, performance parts for passenger cars or robust off-road suspensions, they are one of the few manufacturers to offer a complete solution.

While Pedders started as a shock absorber company, today it is unique in that it offers a "system" that it designs, manufactures, distributes and also installs in Australia under the Pedders brand.

TrakRyder Foam Cell Shock Absorber

Foam cell shock absorbers provide a larger cooling area to improve shock absorber performance and durability by allowing full oil contact with the inner and outer casing. The foam cell technology present in Pedders TrakRyder shock absorbers virtually eliminates all harsh impacts by eliminating oil and air mixing, thus ensuring optimal damping control in all conditions. The 40mm bore and piston are much larger than original shock absorbers and offer a significantly increased improvement in ride.

Pedders Coil Springs

Pedders coil springs belong to the premium variant and are manufactured according to ISO 9001 with a tolerance of only +/-2 mm at load height. Pedders springs are simply unmatched in terms of vehicle handling, appearance and performance.

The design and manufacture of coil springs is a craft that requires strict adherence to a series of rigorous procedures, all essential to the performance of the final product. The spring stiffness, or rate, must be adapted to the weight of the vehicle it is fitted to, as well as the weight of other suspension components and wheels the car is equipped with. Spring stiffness also controls roll stiffness or body roll.

By reducing roll, we reduce the number of wheel changes. Significant camber adjustments can significantly reduce the tire's contact patch with the road, thereby limiting the vehicle's handling potential in corners. The handling of most vehicles is greatly improved by increasing the initial spring stiffness to an optimal rate that maximizes tire grip and reduces roll for better handling. Increasing spring stiffness beyond the optimal value degrades handling potential as tires begin to skip over bumps, thereby reducing grip and safety.

The kit contains the following items:

•  - Pedders TrakRyder Foam Cell Shock Absorber
•  - Pedders TrakRyder Foam Cell Shock Absorber
•  - Pedders Trakryder Leaf Spring with Rubber Eye Bush. +350kg constant load
•  - Pedders TrakRyder Coil Spring
•  - Square U-bolt 60 x 13 x 225 mm
•  - Leaf Spring Adapter (pair) - PX3-P703
•   - Urethane Leaf Spring Rear Eye Bush (4PKT)

Compatible with the following car models:

• Ford Ranger P703 3.0 V6 2023+ P703 3.0 V6

We recommend performing a front wheel alignment after installing this product, otherwise your tires will wear out. Drive the car 2 to 3 km before adjusting the front suspension.

• Increased safety for you and your fellow road users!
• Warranty: 2 years / 40,000 km
• Better road holding at maximum load.
• Better driving comfort at maximum load.
• All springs are progressive.
• The entire assembly is carried out without affecting the bodywork, so the product does not affect the car's warranties
• Assembly time approximately 1 hour per side at the front and 2.5 hours at the rear.

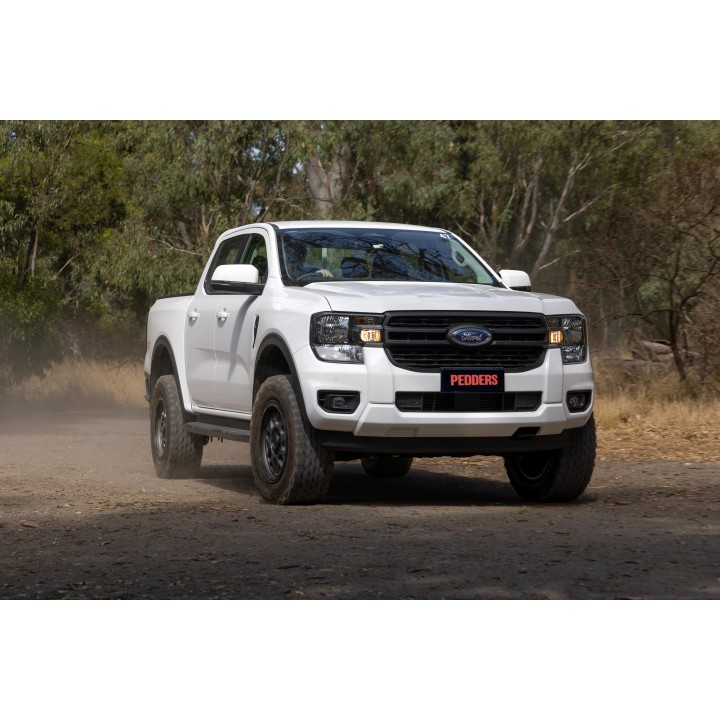

ILLUSTRATION IMAGE

This Australian brand offers the best products on the market: 60 years of research and development were necessary, a particular attention to the demands made by their customers allowed them to achieve this result. These shock absorbers offer you a high-end suspension, extraordinary performance whatever your use, Road or Off-Road. Confident in the quality of their products, Pedders offers a 2-year or 40,000km warranty

DELIVERY WITHIN 8-10 DAYS
