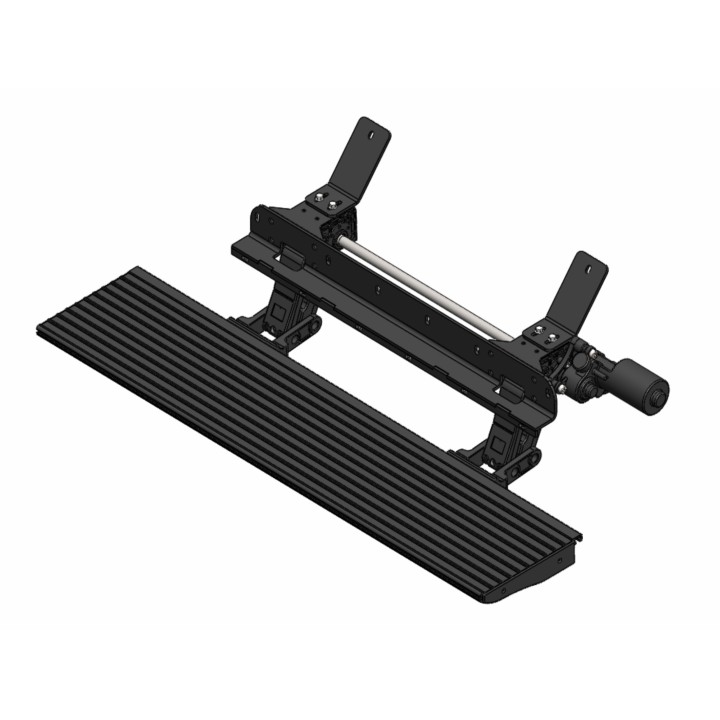

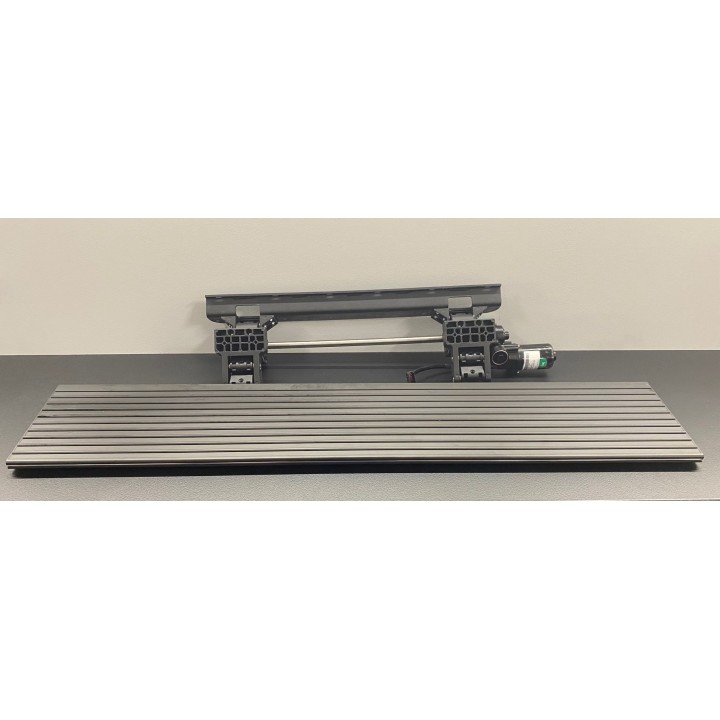

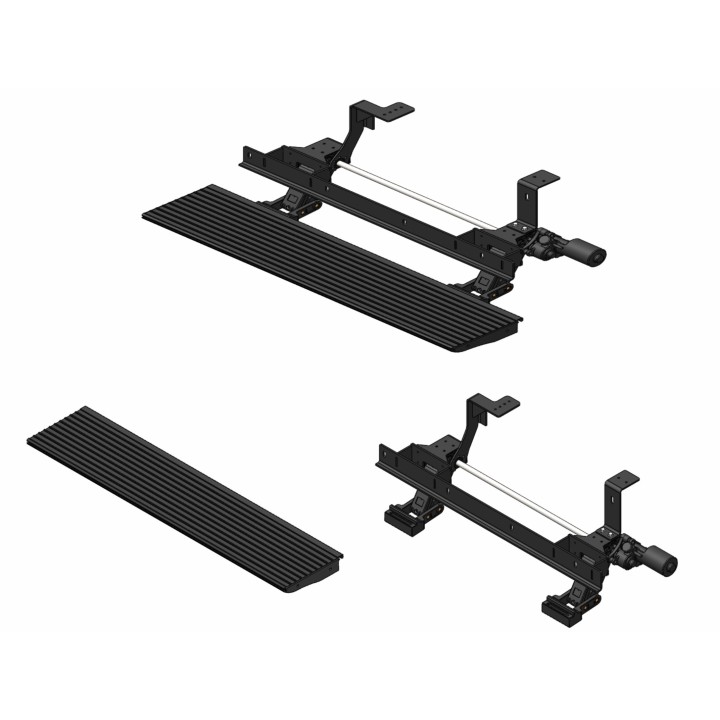

Electric Running Board VOLKSWAGEN CRAFTER Right Sliding Door 1200mm
Reference : AC200VD102
VOLKSWAGEN CRAFTER
Electric Running Board VOLKSWAGEN CRAFTER Right Sliding Door 1200mm:
Movement mechanism entirely in aluminum and stainless steel. It eliminates the risk of corrosion.
This electric running board system is designed to improve accessibility for passengers entering and exiting the Mercedes Sprinter
When the door opens, the 1200 mm long running board extends automatically, providing a stable platform.
it is an essential element for entering and exiting the vehicle.
When the door closes, the running board retracts seamlessly
maintaining the vehicle's aerodynamics and appearance
If the step encounters an obstacle during extension, it stops and retracts to its closed position,
ensuring safety.
When the doors and running board are open, the lighting starts to work and illuminates the step surface
If the step encounters an obstacle, it automatically stops and closes.
It offers high performance and trouble-free operation in all
weather conditions with a safety design.
Passenger and environmental safety is our priority.
The surface is made of aluminum and specially coated. With its rigid design, it can support a weight of 300 kg.
This system operates on a 12 VDC electric motor with a nominal power of 100 W.
Specifically designed for the right (passenger) side of the Mercedes Sprinter
The control unit is ECE R10 certified. IP67 protection class.
TECHNICAL DATA:
Electric current voltage: 12DCV
Rated current: 1.5 – 3 A
Electric motor: Bosch 18 W
Protection: IP67
Step length: 1200 mm
Step width: 230 mm
Maximum load: 300 kg
Opening time: 3 seconds
Weight (kg): 22 kg
MATERIAL
Coated aluminum
stainless steel
OPTIONAL:
LED backlight under the step
SHIPPING TIME 1 WEEK
