ROOF RACK TOYOTA LAND CRUISER 120 2002 2009 ALUMINUM 120 X 140 cms for rooftop tent
Reference : ACMES003
TOYOTA LAND CRUISER 120 5 DOORS
(2002 - 2009)
ALUMINUM ROOF RACK: 120 X 140 cms
IDEAL FOR ROOFTOP TENT
Dedicated to: TOYOTA LAND CRUISER 120, models 2002-2009
Dimensions of the roof rack: 120 cm x 140 cm

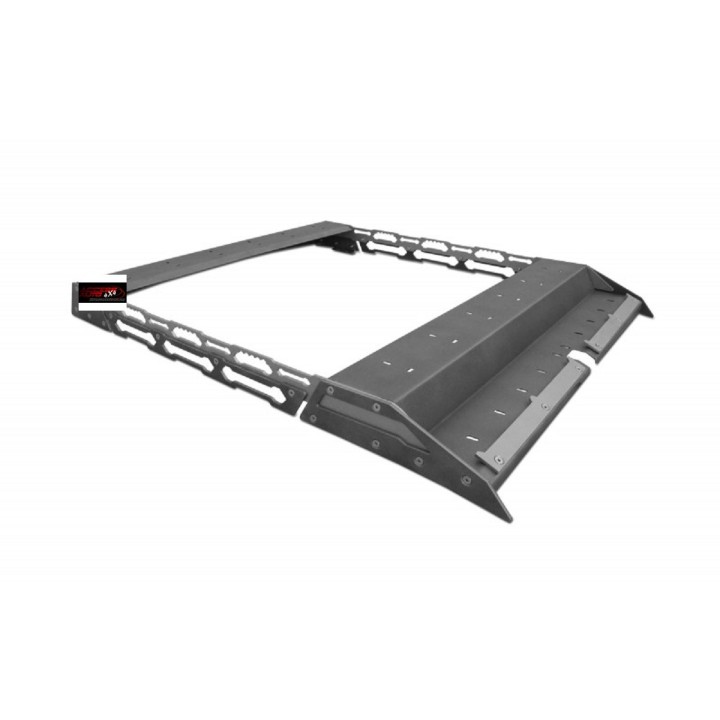

Its structure consists of two 2 mm steel crossbars, steel mounting brackets, 6 mm thick aluminum side elements, and a set of stainless steel screws for self-assembly of the rack.
The crossbars of the roof rack are equipped with holes allowing the installation, for example, of a rooftop tent.

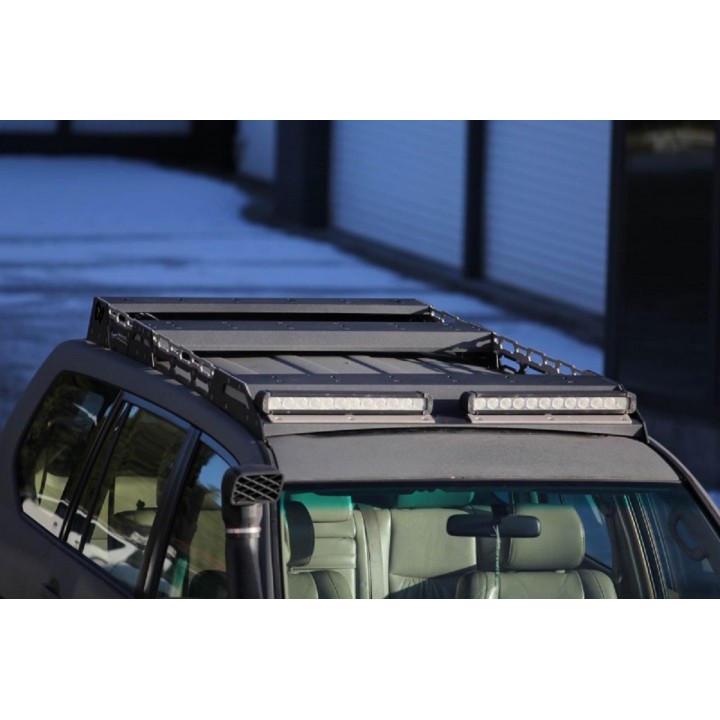

At the front of the roof rack, there is a location for mounting the vehicle's front lighting in the form of long-range halogen lamps or LED panels with a maximum width of 110 cm (optional).
There are also mounting locations for four dedicated work lights (ACBA006) mounted inside the rear and side parts of the rack. This solution protects the lights and their installation from mechanical damage.
The roof rack is coated with an epoxy primer applied using powder coating technique and a structural graphite paint, and some elements are painted in stainless steel.
- To mount the rack, holes must be drilled in the vehicle's roof
(inside the gutters) and attach the platform support using
rivet nuts (provided).
product delivered complete with vehicle-specific mounting brackets - assembly instructions
Delivery Times
Shipping within 3 to 15 working days depending on availability
GENERIC PHOTO
