REAR SPARE WHEEL CARRIER FORD TRANSIT 2014 TO PRESENT Hinge 180° 270°
Reference : ACWHMFT1424
FORD TRANSIT H2 and H3
(2014 - 2019 - PRESENT)

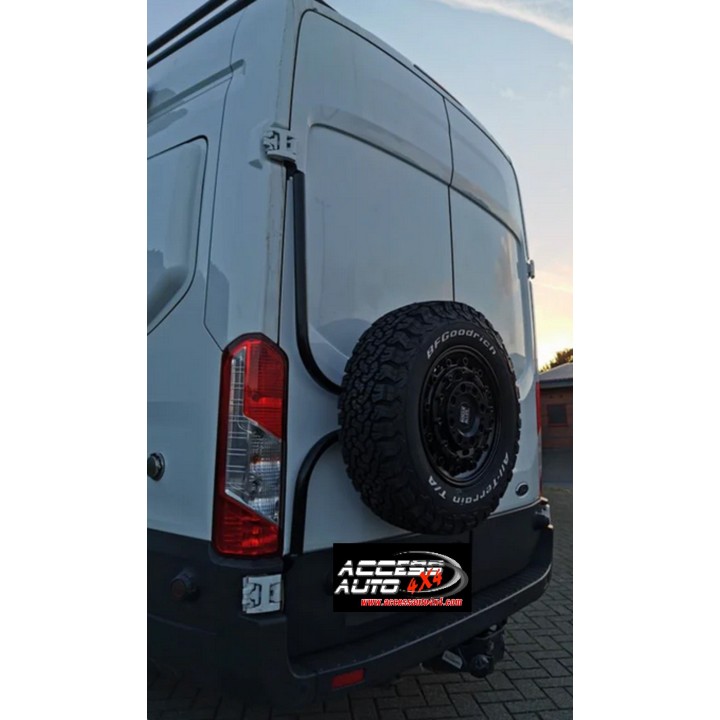

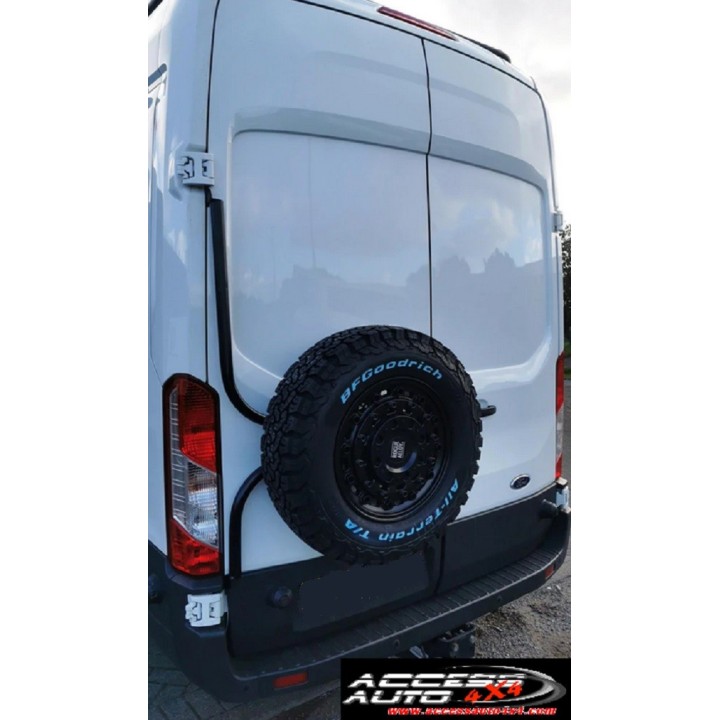

Rear Spare Wheel Carrier FORD TRANSIT 2014 TO PRESENT:
Designed for all double rear door models equipped with H2 or H3 ROOF.
This wheel carrier features an adjustable tower allowing the installation of wheels with 5x160, 6x180, or 6x120 bolt patterns. No need to worry about your van's bolt pattern: this wheel carrier is compatible with all bolt patterns.
The main advantages of our wheel carriers are:
The adjustment of the spare wheel at the rear of the vehicle keeps the wheel cleaning when installed underneath and makes access to the wheel safer and easier.
The wheel carrier swings with the opening of the rear door without any additional operation.
Our wheel carriers are fully compatible with parking sensors, rear van windows, and rear wipers.
No need to move the vehicle's license plate or badge.
You gain additional space under the van to adjust gas, fuel, or water tanks.
The wheel carriers can be used for wheels that are too large to fit in the standard under-van cradle.
- Steel product, READY TO PAINT
Details of the spare wheel carrier:
All wheel carriers are handcrafted and available within 14 working days. The construction is very robust, using a tube and a plate made of mild steel welded Mig manufactured in-house by our qualified staff.
The wheel carriers are carefully designed for each vehicle brand so that they do not obscure license plates or taillights.
The wheel carriers are supplied unfinished in bare metal so you can finish them as you wish.
The wheels are bolted to the carrier using standard wheel bolts, and we recommend using locking wheel bolts (M14x1.5 thread) for added security. Please note that these are not included with your product.
-
Installation of the wheel carrier
The necessary fasteners to adjust the wheel carrier on the van are provided.

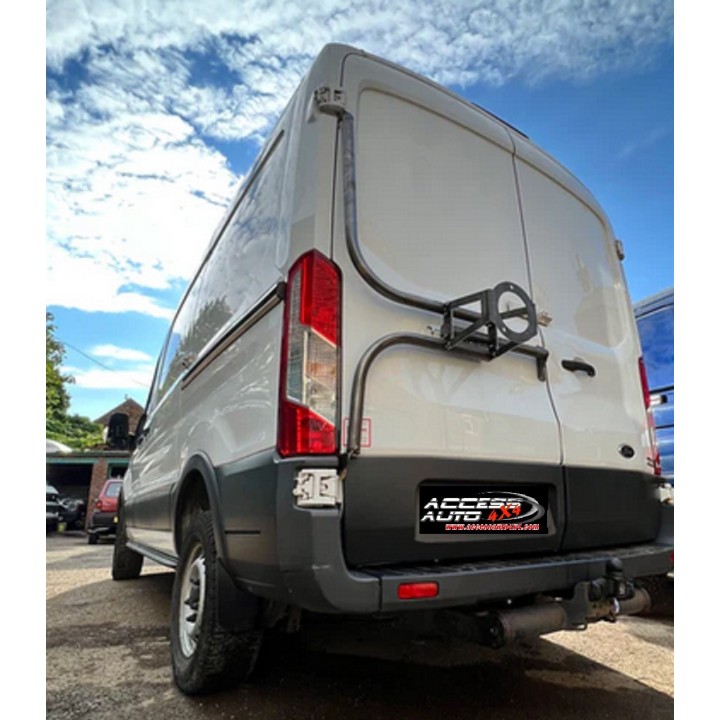

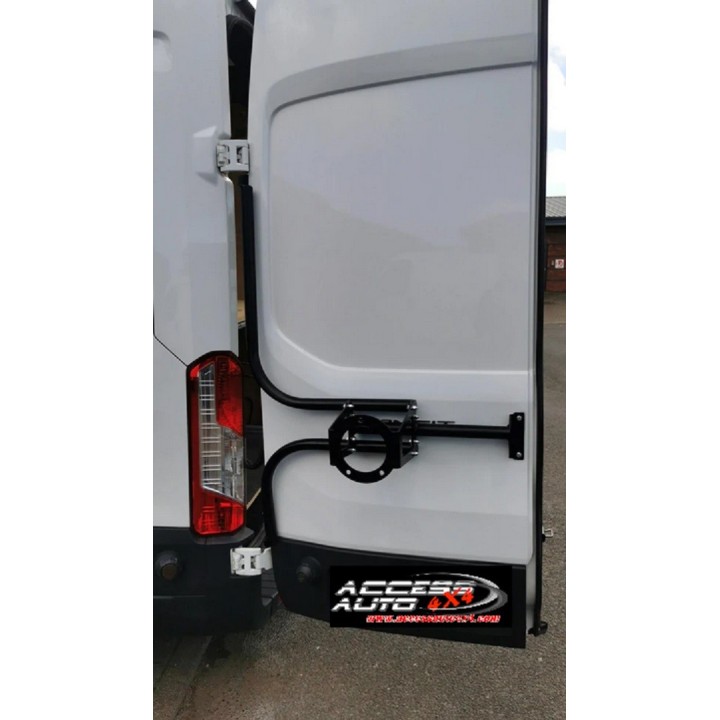

The wheel carriers pivot on the existing hinges on the door and require drilling a hole in the door skin. This wheel carrier can be installed on vans with 180 or 270-degree hinges.
The system attaches to the door using factory Ford door hinge bolts. The door does not need to be removed for this to fit.
Always test any bolted product before painting to ensure it fits.
All drilled holes will require bare metal painting to prevent corrosion. We also label the door skin support and the door skin, which eliminates the point load of the bolts while sealing the hole to prevent water penetration.
Product weight: 8 kg.
SHIPPING TIME (made-to-order product within 12/15 days)
