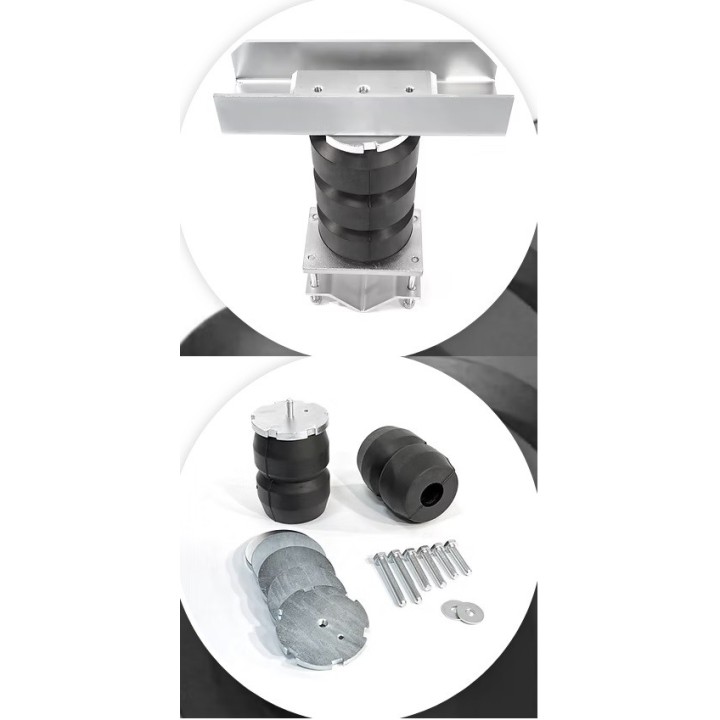

Suspension Bump Stop for PEUGEOT BOXER 2006 TO DATE Maxi Load
Reference : ACSTSJUMP130
Suspension Bump Stop for PEUGEOT BOXER 2006 TO DATE Maxi Load
How it works:

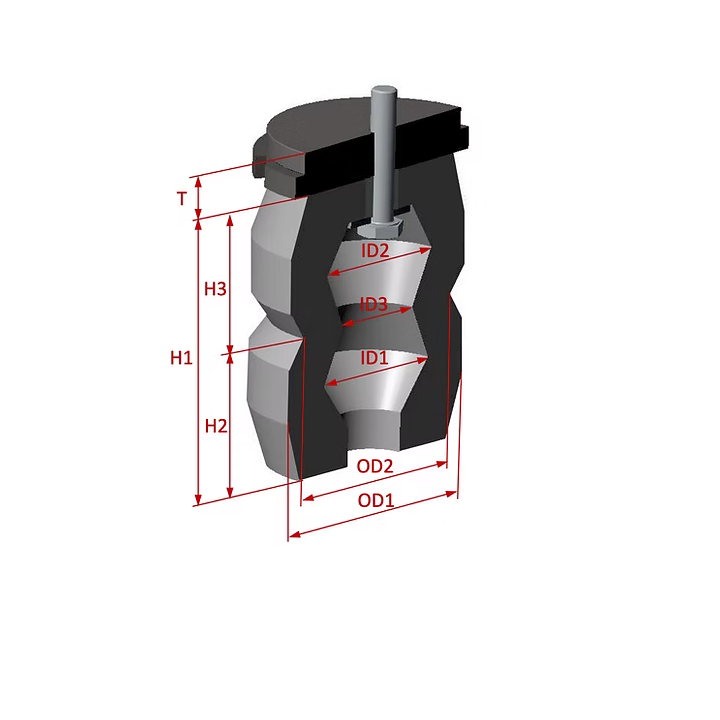

The hollow rubber spring is the main component of the Maxi-Load suspension upgrade kit. This is not a simple solid rubber piece like standard bump stops, but a masterpiece of engineering design. The stiffness and progressiveness of the spring are achieved through careful design of critical dimensions. The main dimensions influencing performance are the height (H1), the outer diameter (OD1) and the inner diameter (ID3). In addition, the difference between the two chambers (H2, H3, ID1, ID2) plays an important role. The result is characteristics impossible to achieve with a single leaf spring or a coil spring: progressive (variable) stiffness, self-damping through hysteresis and perfect vibration isolation. But that is not all, because after selecting the hollow rubber spring suited to your vehicle, its operation can be fine-tuned using different spacers (dimension T); the moment (or phase) at which the auxiliary spring should engage, for example at empty load or half load, according to your preferences.

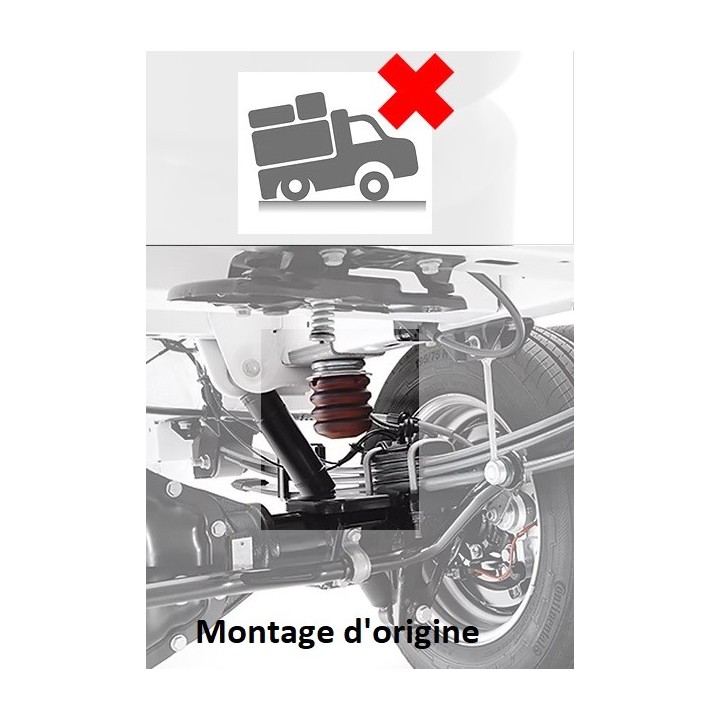

OEM System:
Your vehicle is fitted with OEM bump stops
Weak leaf springs: not optimised for heavy loads.
Spring rate: linear, non-adjustable.
A small and fragile suspension bump stop prevents harsh contact between the axle and the chassis.
The OEM bump stop is manufactured from flexible, low-cost synthetic polyurethane or solid rubber.
Poor ride comfort.

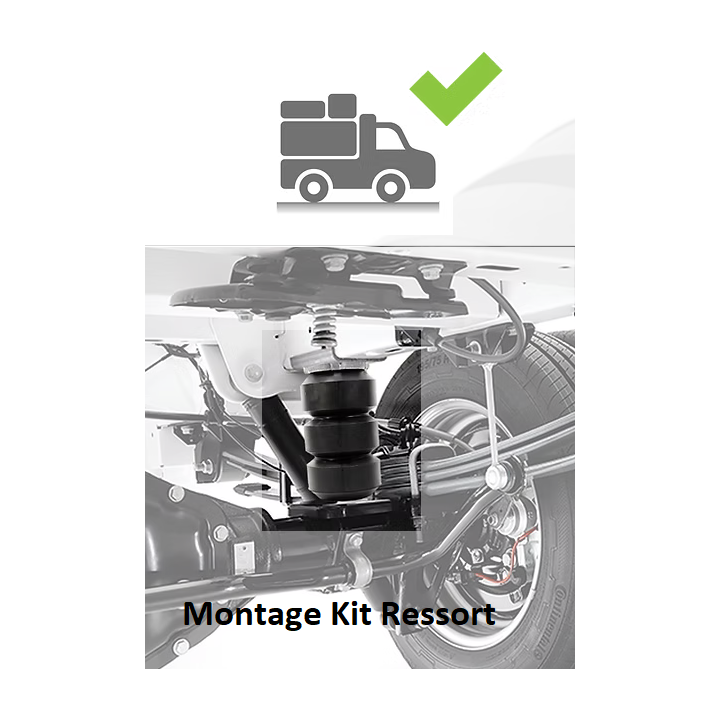

Benefits of this system:

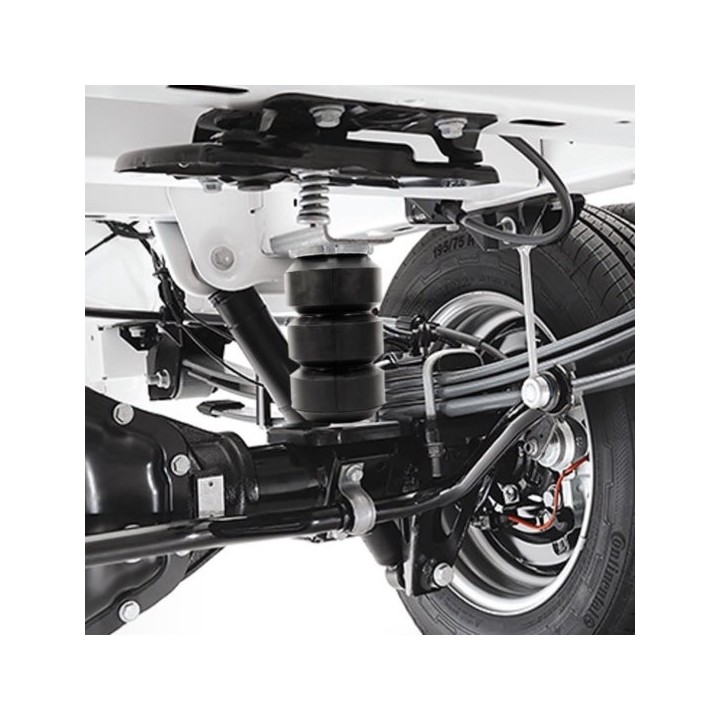

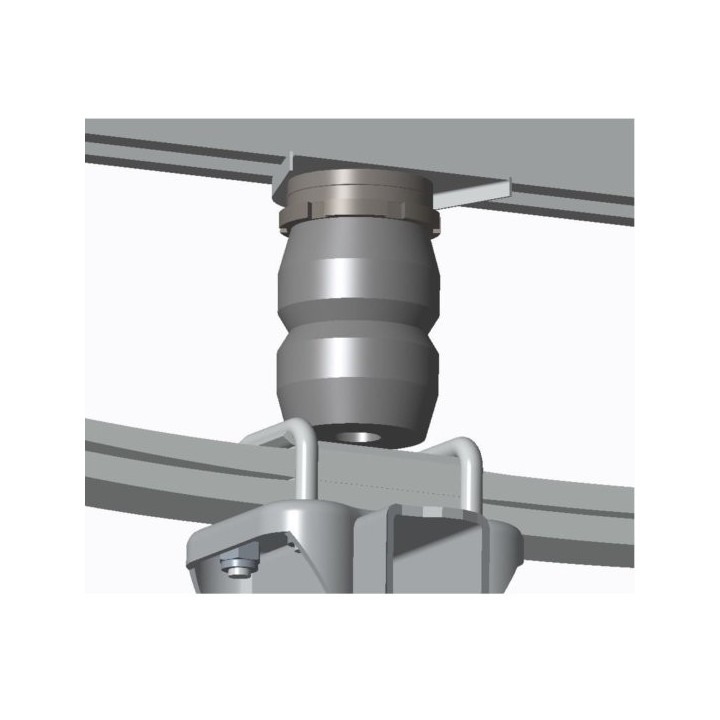

The auxiliary spring is fitted in place of the OEM bump stop. Spring rate: progressive and adjustable.
The heavy-duty auxiliary spring works in conjunction with the leaf spring, at no load or half load, depending on your configuration.
The heavy-duty auxiliary spring is manufactured from vulcanised natural rubber.
Stabilises the vehicle.
Provides additional load support
Stabilises sway
Reduces body roll
Improves ride comfort
Adjustable spring rate
Self-damping
Reduces vibrations
2 possible sizes:
-
Minimum height of assembled kit:
140 mm / 190 mm
-
Maximum height of assembled kit:
170 mm / 200 mm
-
Hollow rubber spring diameter:
100 mm / 110 mm
