Lift Kit MITSUBISHI L200 2015 2023 Suspension + 5 cms SUPERIOR
Reference : ACFRRHDT4MGM
MITSUBISHI L200
(2015 - 2023)
SUSPENSION LIFT KIT +5 cms FOR MITSUBISHI L200 2015-2023:
Nitrogen-charged RS-HDT4 shock absorbers feature a 4-stage adjustable damping control knob for even greater driving comfort and are useful both on challenging off-road terrain and on the road. The Twintube construction offers additional protection. The product features a special coating that provides even better protection against rust.
Leaf springs on the rear axle can withstand heavy loads, which makes them ideal for off-road vehicles. They have elastic properties, allowing them to better overcome road irregularities.
Easy bolt-on installation
Increased ground clearance
Allows for larger tires, improved stability on highways/paved roads.

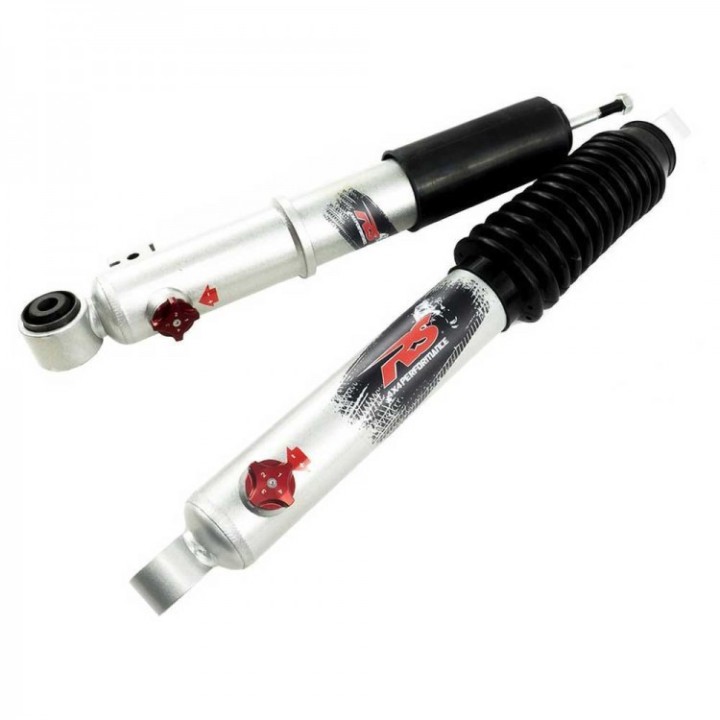

Shock Absorber Specifications:
Seamless eyelet – 360-degree robot welded to the piston rod for maximum strength and seal durability for off-road use.
Durable dust protector - to prevent dust and other foreign objects from entering the internal damping cylinder for maximum durability
Nitrogen gas charged - designed to prevent shock fade and for better damping control
Hard chrome piston rod - 18mm precision induction - hardened rod for maximum durability and strength
Oven-hardened coating – for maximum corrosion resistance and protection.
Fun and flexible damping valve control – 4 adjustable levels to meet the driver's dynamic driving needs. Made of high-quality anodized aluminum for maximum rust resistance
Robust multi-layer seal: prevents oil leaks and dirt penetration into the internal shock absorber cylinder for maximum durability.
External reservoir cylinder - 57mm solid and seamless cylinder construction suitable for robust off-road applications
Sintered piston with Teflon lining – Robust 35mm piston design for maximum driving comfort and precise, smooth piston movement.
Custom-designed rebound valve - improved driving comfort and precise rebound damping control
Internal damping cylinder - twin-tube construction to protect and prevent any dents caused by external factors for precise piston movements
Compression valve - custom-designed for precise oil damping control

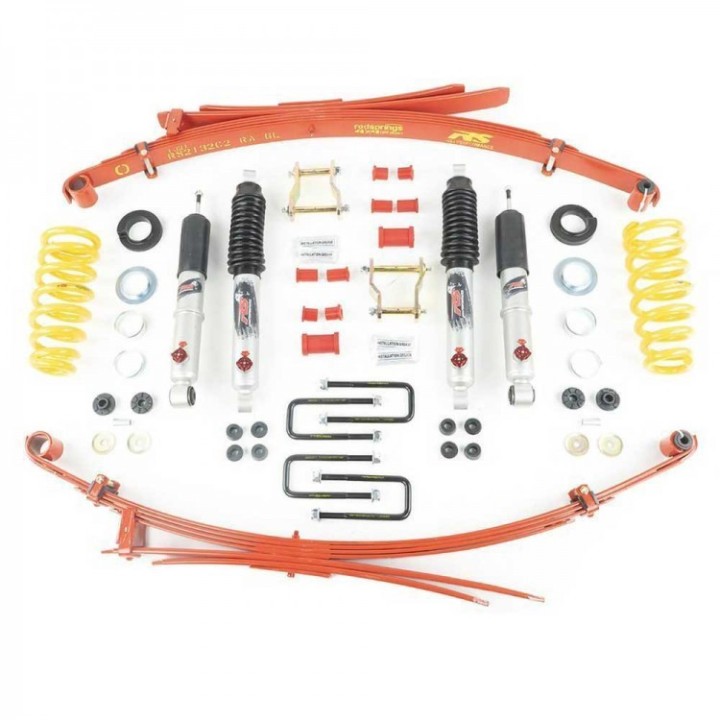

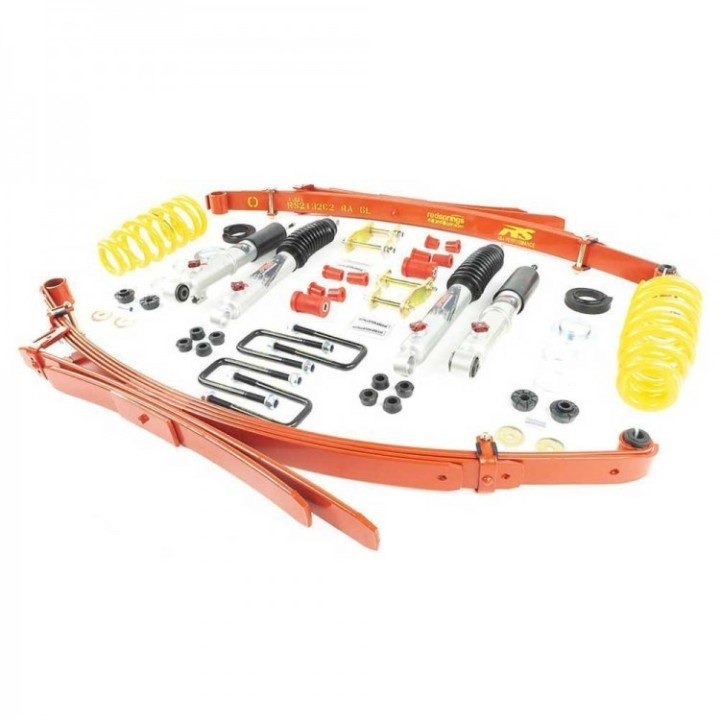

The Lift Kit consists of the following elements:
(2) Front gas shock absorber
(2) Rear gas shock absorber
(2) Front coil spring
(2) Shackle
(2) Leaf spring
Loading:
Front: 40 mm with a load of 0 to 50 kg
Rear: 40 mm with a load of 200 kg
Notes:
Compatible only with double cab models.
DELIVERY WITHIN 8-10 DAYS
