HOOD SOLAR PANEL 60W for MAN TGE 2017 PRESENT SET

MAN TGE

(2017 - PRESENT-)

HOOD SOLAR PANEL 60 Watts for MAN TGE 2017 PRESENT SET :

No more flat battery problems!

The solar panel is perfect for camping or travel. No more worries about a flat battery when camping without a power connection!

Slim and lightweight design:

The flexible module simply mounts on the hood of your new Land Rover Defender and - without having to start the engine - offers ecological power to charge 12V devices such as refrigerators, laptops, cell phones, cameras, radios, lights, etc. because this custom solar panel is mounted directly on your hood, no additional roof rack or similar is required for installation.

The complete plug-and-play system is easy to install.

Unlike a portable solar panel, you don't have to set it up or store it in the vehicle, which could waste valuable cargo space.

High efficiency and excellent performance:

The solar system provides a constant supply of clean solar energy to your primary and/or secondary vehicle batteries during the day. This allows you to run 12V accessories without starting the engine and without fear of draining your battery and leaving you stranded.

Simple installation:

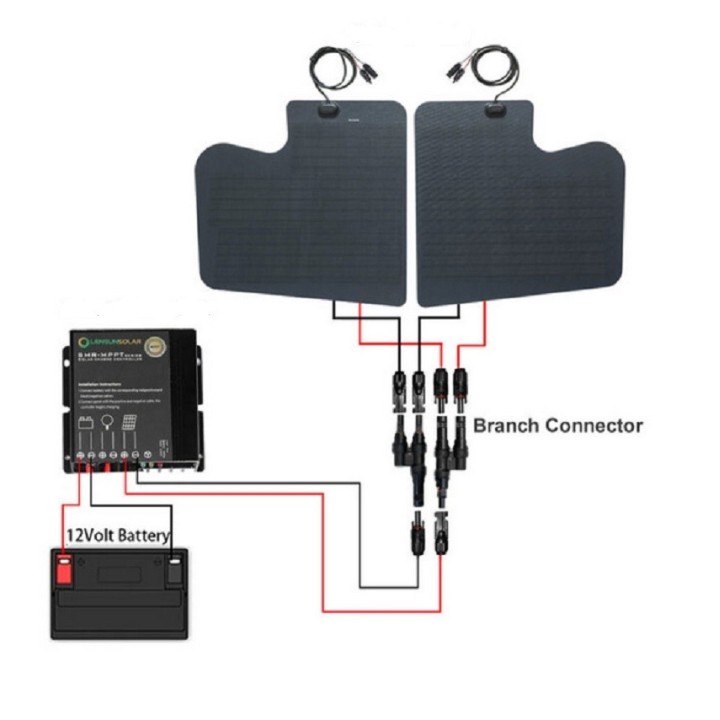

This solar panel solution is a complete plug-and-play system when paired with our optional MPPT solar charge controller and can be installed in just 1.5 hours.

Durable and robust construction:

Composed of a semi-flexible, strong and durable module construction, the solar panels are guaranteed to withstand extreme environmental conditions for years without maintenance.

Reduced hood glare:

The favorable surface finish of the panels reduces glare while driving due to their light-absorbing properties.

FEATURES:

suitable for

- VW Crafter from 2017

- MAN TGE :

Maximum power : 60W

Operating voltage (Vmp) : 18 V

Operating current (Imp): 3.33A

Short-circuit current (Isc) : 3.67A

Open circuit voltage (Voc) : 21 V

Power tolerance range : +/-3 %

Maximum system voltage : 500 V

Dimensions per panel : 725 x 535 x 3 mm

Total weight : approx. 2 kg

Solar cell efficiency : 23.5 %

Junction box protection class : IP 68 / 2 m cable / MC4 plug

Values under standard test conditions : Air mass : AM1.5 / Irradiance : 1000W/m2 / Cell temperature : 25°C

FEATURES:

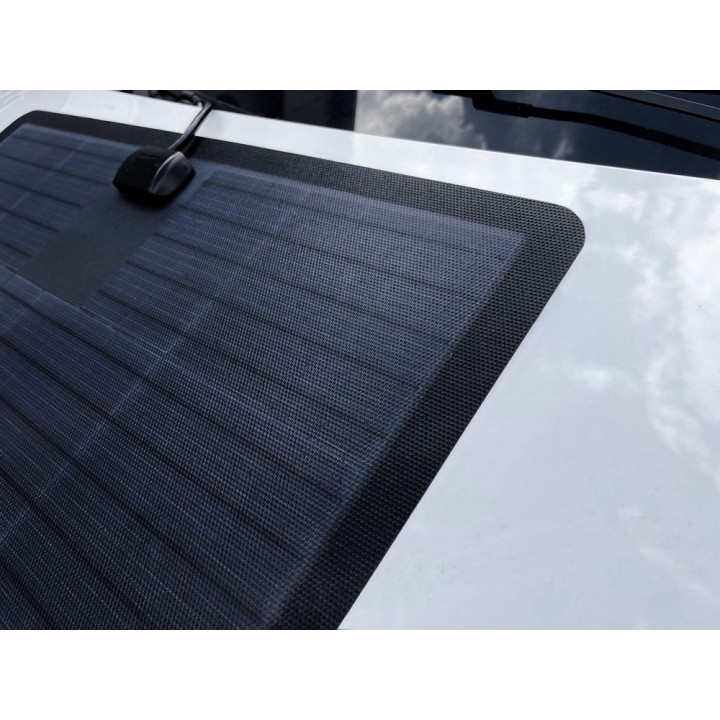

Our solar module consists of monocrystalline solar cells in PERC technology, which have much higher efficiency and more durability than other mono solar cells. The extremely high-quality ETFE film is characterized by excellent light transmission and weather resistance and is also heat, corrosion and UV resistant. ETFE has self-cleaning properties that ensure the best performance day after day.

The panels have a durable fiberglass substrate backsheet that offers better heat dissipation than PET backsheets. The ETFE film and fiberglass backsheet can withstand extreme environmental conditions and are maintenance-free for years.

With a thickness of only 3 mm, the solar module is powerful, waterproof and ultra-light (60% less than conventional solar modules). You carry 90 watts of energy from solar modules only 3 mm thick on the hood of your new Land Rover Defender, which in no way affects the vehicle's aerodynamics and the weight of the solar system is also negligible. Our panels withstand severe environmental conditions such as sun, rain, snow, ice, mud, stone chips, branches, etc. without any problem and are therefore perfectly suited for off-road vehicles.

Optional Plug-and-Play MPPT Solar Charge Controller: This waterproof device is mounted in the engine compartment and is extremely resistant to heat and vibrations. The regulator automatically controls the amount of current reaching the battery and prevents overcharging. The charge controller is pre-wired with fuses, terminals and plugs to eliminate unnecessary guesswork when setting up the system in advance (not included - please order separately under item no. 21622 if necessary).

The custom protective film provided with the set protects the underlying vehicle paint from damage and allows the system to be removed from the hood without leaving residue if necessary.

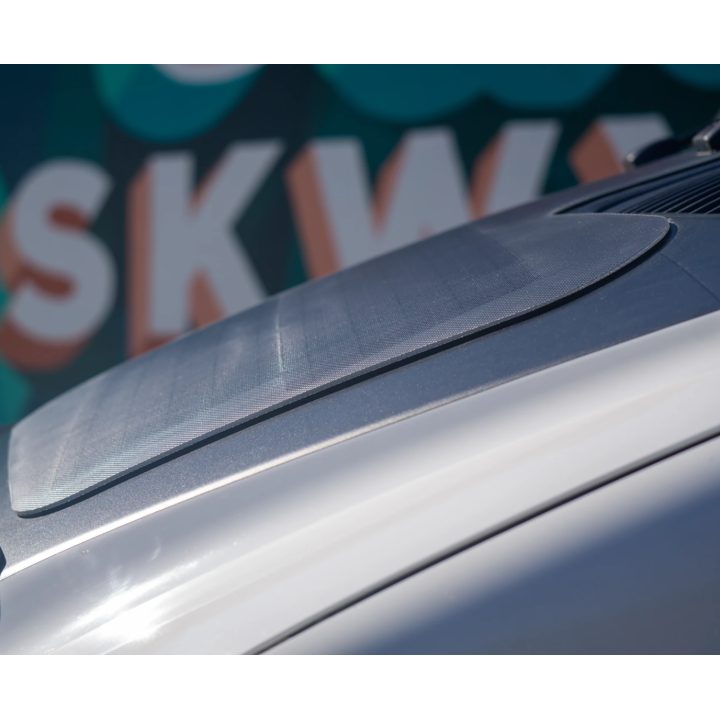

Factory appearance: The flexible solar panels perfectly adapt to the contours and edges of the new Defender's hood for a seamless and elegant aesthetic.

INSTALLATION:

To minimize paint damage, we recommend combining the solar panels with our vehicle-specific protective films, which are applied under the panels.

The film is applied to your vehicle's hood in the same way as conventional hood films or car film stickers.

The film acts as a moisture and dirt barrier to protect the paint underneath. It is then advisable to attach each panel to the vinyl film using 3M acrylic foam adhesive tape (item no. 21606).

Alternatively, you can also attach the solar panels directly to the hood using the adhesive .

Note: Installation of the flexible hood solar panel system takes approx. 1.5 hours and must be carried out in a dry environment and at a temperature between 18° and 35°C.

At cold temperatures, the solar panel is not flexible enough to adapt to your hood and the adhesive does not adhere properly.

In addition, the cable guides (optional) available from us can provide the finishing touch to cable organization in the engine compartment.

If in doubt, we recommend having the installation carried out by a professional .

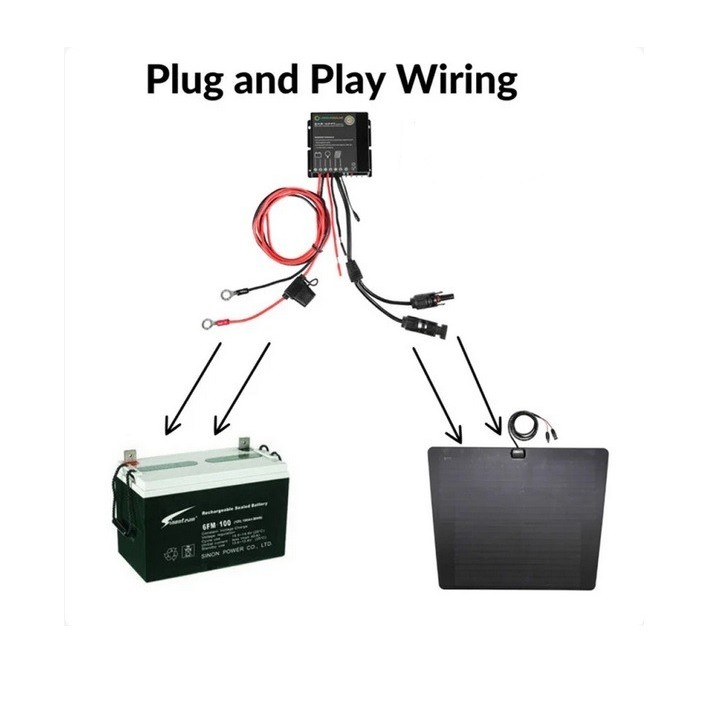

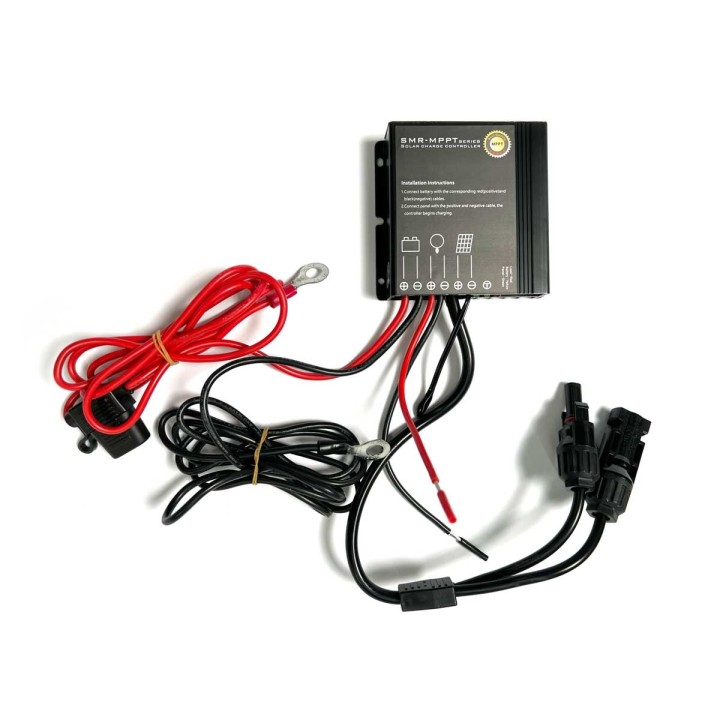

MPPT SOLAR REGULATOR 12V / 130W : (plug and play mounting) :

Product properties:

- Splash-proof according to IP67

- Mainly MPPT charging technology

- 4-stage charging curve

- Integrated desulfator

- LED charge control lights

- MC4 connector plug

Technical details:

Solar panel input voltage (VOS): 16V-27V

Maximum superior performance for each input: 130W

Starter charge activation device: <12.5 V

Nominal battery voltage: 12V

Standby consumption: 6mA

Length: 86 mm

Width: 81 mm

Height: 63 mm

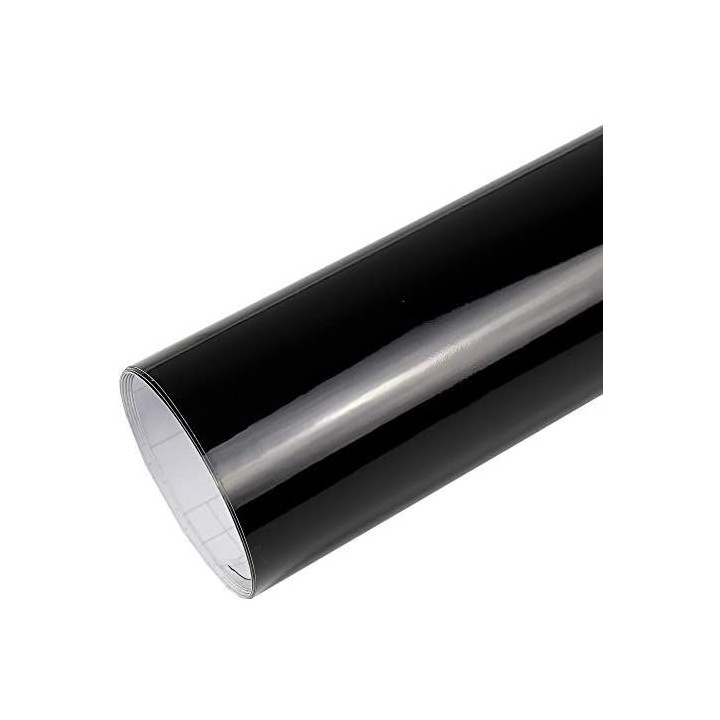

Protective film for the hood solar module :

In order not to damage the hood paint if possible, we recommend mounting the Bonnet solar module on this self-adhesive protective film.

The film is applied to your vehicle's hood in the same way as conventional hood films or car film stickers.

The film acts as a moisture and dirt barrier to protect the paint below. If necessary, the solar module can be removed from the hood without residue.

Protective film for the hood, corresponding to our Bonnet solar module

is glued to the hood under the solar module

can be removed at any time

Color: black

Suitable for cutting the solar module to shape

Note: The film must be glued in a dry environment and at a temperature between 18° and 35°C. The hood must be cleaned beforehand, keeping it dry and grease-free.

The set includes :

Hood Solar Panel Set

MPPT Solar Regulator 12V / 130W

Protective film for the hood solar module

SHIPPING TIME 1 WEEK
