Rear Air Suspension Kit for FORD TRANSIT 2019+ LINNEPE with Compressor without Electric Brake
Reference : 201042
Rear Air Suspension Kit for FORD TRANSIT 2019+ LINNEPE with Compressor without Electric Brake:
Ford Transit from 05/2019 with ABS, only for front-wheel drive vehicles and single tires, without electric handbrake.
Includes a basic 12 V compressor, a double cabin dashboard, and a loading certificate.
The Linnepe AirLift Maxi dual circuit air suspension system offers significantly improved driving safety at an affordable price. Thanks to its large chamber volume, this system supports a wide range of loads. The AirLift Maxi comes with a compressor and a dual circuit system. With a lifting capacity of up to 2.5 tons per air spring, this system is extremely efficient. It is suitable for heavy vehicles with leaf spring suspension, with either single or dual wheels. The high-quality Linnepe AirLift systems are always delivered complete and TÜV certified. The road behavior and ground clearance are easily adjustable from the driver's seat using the control located on the dashboard.
Highlights:
- Improved road safety
- Optimal driving comfort
- Enhanced suspension
- Improved steering response
- Steel spring support
- 100% maintenance-free
- Compensation for uneven loads
- Reduces sensitivity to crosswinds
- Installation requires no modifications to the chassis.
Available Variants:
- From model year 2006, front-wheel drive
- From model year 2006, rear-wheel drive/single
- From model year 2006, rear-wheel drive/dual
- From model year 05/2019, front-wheel drive
- From model year 04/2014, front-wheel drive
Scope of Delivery:

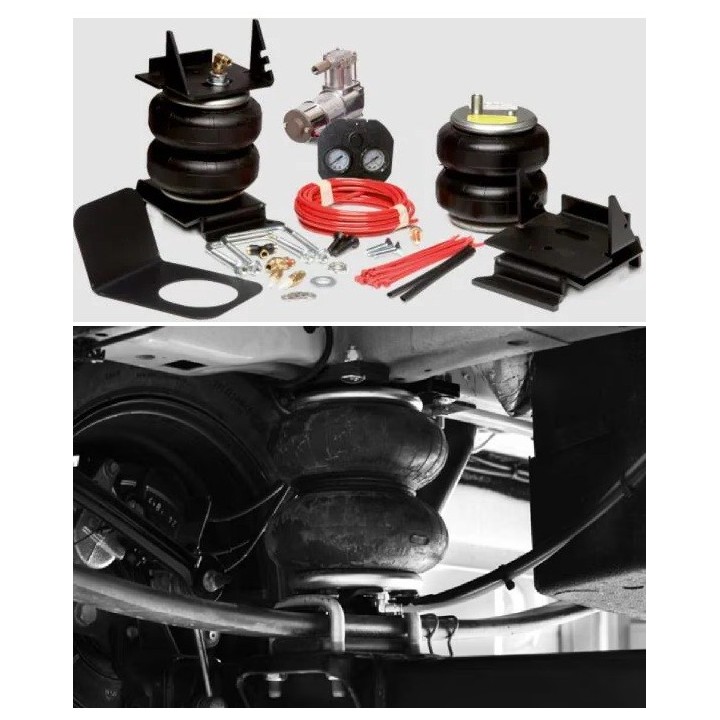

- Control unit with 2 pressure gauges and 2 operating switches, compressor, fuse, 2 15 cm bellows with mounting hardware, valves, and hoses. Installation instructions and TÜV certification included.
Delivered with TÜV Certificate
All images are universal for the respective mounting system. The appearance of the bellows and supports may slightly differ from the images shown, but they will always fit the vehicle for which the kit is designed.
DELIVERY WITHIN 10/15 DAYS
