Lift Kit JEEP GLADIATOR 2020 TO PRESENT Suspension + 2.5" Teraflex
Reference : ACJW75200
JEEP GLADIATOR JT
(2020 - TO PRESENT-)
SUSPENSION LIFT KIT + 2.5" FOR JEEP GLADIATOR 2020-TO PRESENT:
If you are looking for a reliable and proven kit to lift your car, TeraFlex has prepared the perfect solution. The kit allows you to mount larger tires and improves off-road performance with the fewest possible modifications. It offers a compromise between a larger wheel size and increased ground clearance on your JT Gladiator. The kit allows for aligning the front and rear of the vehicle.
Increases ground clearance
Allows installation of larger tires
Gives an aggressive look
Maximum tire diameter:
Sport/ Overland: 35 inches
Rubicon: 37 inches

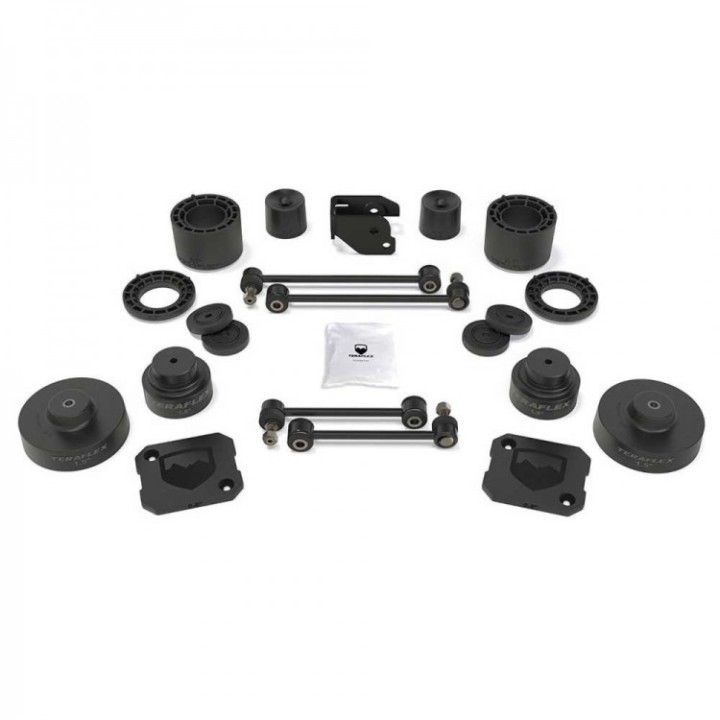

The lift kit consists of the following elements:
(2) Front coil spring spacer 0.5" lift
(2) Front coil spring spacer, 3" lift
(2) Rear coil spring spacer 1.5" lift
(2) Front lower bump stop spacer, 2 in lift
(2) Rear upper bump stop spacer 0.5"
(2) Rear upper bump stop spacer 1.5" lift
(4) Front bump stop spacer 0.5" lift
(4) Rear lower bump stop spacer 0.5" lift
(2) Front sway bar link
(2) Rear sway bar link
(2) 1" spacer
All necessary hardware
Caster correction required: front lower sport control arm kit (TX1253000), or front control arm sport frame bracket kit (TX1938125), or 8-arm adjustable short control arm kit (Alpine: TX1417550 or Alpine IR: TX1417500) and/or HD forged adjustable front track bar(s) (TX1753420)
Requires aftermarket wheels with 4.75 inches or less backspacing – or offset wheel adapters (TX1057000) for original wheels (sold separately)
Models with plastic bumpers require removal of the air deflector/splash guard between the bumper and fender to fit 35 inch or larger tires.
Requires 2 in rear bump stop pad extensions for the front top, 1.5 inch for the rear top, and 0.5 inch for the rear bottom to accommodate 35 to 37 inch tires
All OEM fenders require 2 in front and 2 in rear shock bump stop extensions (INCLUDED) to fit 35 inch tires
Requires longer shocks. We recommend Falcon Performance shocks (sold separately)
Requires alignment
DELIVERY IN 8-10 DAYS (limited quantity)
