RAM 1500 Lift Kit 2013-2026 Advanced Revel Performance Air Suspension Lift 2.5"
Reference : ACRP-14-Package-201
Advanced Revel Performance Air Suspension Lift Kit with 2.5-inch Lift Spacers + Revel Links + Upper Control Arms:
Lifts the vehicle without compromising ride comfort or load capacity.
Compatible with all Ram models with air suspension (2013-2026).
Instantly give your Ram 1500 a height advantage without sacrificing ride comfort or air suspension functions. The Revel Performance Advanced kit combines precision-machined upper control arms, adjustable Revel Links, and robust 2.5-inch lift spacers, raising your vehicle while maintaining original driving modes such as Aero, OR1, and OR2. Its smart design utilizes the Ram's air suspension system to increase ride height without compromising comfort or load capacity. Designed for easy installation and unbeatable reliability, it’s the ideal solution to level your Ram and enhance its appearance on and off the road. Upgrade your vehicle today and enjoy a taller, more capable Ram ready for all adventures.
Features:
Ride height up to 2.5 inches (6.35 cm)
Machined aluminum Revel Links with rubber bushings and front/rear adjustment
Steel upper control arms with robust ball joints
High-density polyurethane or aluminum spacers for increased durability
Unchanged ride comfort and load capacity
Quick installation in 1 to 2 hours with basic tools

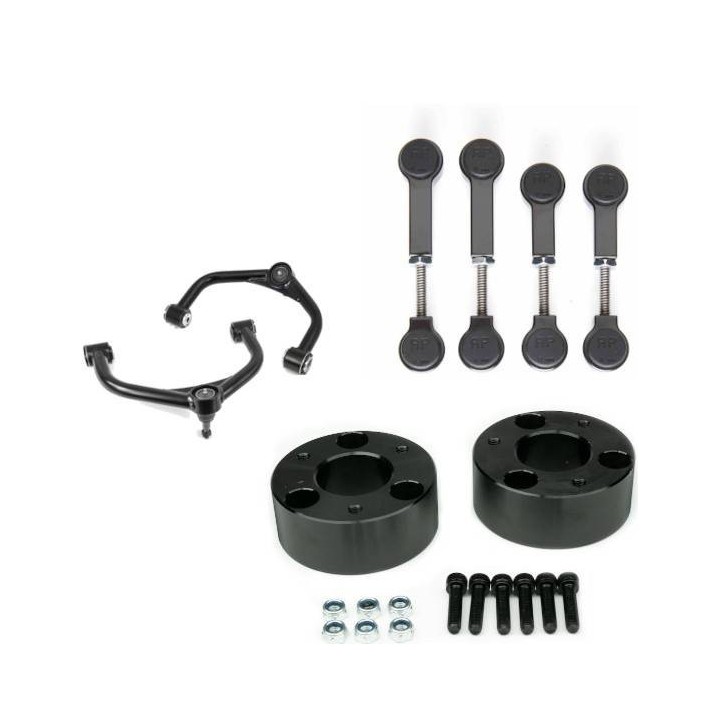

Box contents:
(2) Upper control arms
(4) Adjustable links
(2) Front spacers

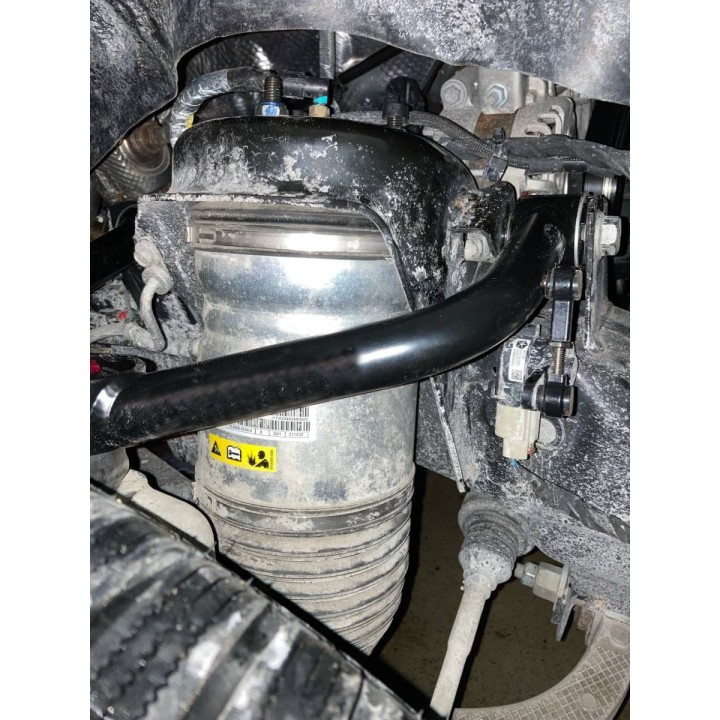

Mounting showcase
Notes:
Compatible only with models with air suspension
The links are not preset:
The front links should be adjusted slightly shorter than the original links.
The rear links should be adjusted slightly longer than the original links.
The shortest links should be installed at the front of the vehicle, and the longest at the rear. Maintains all pre-programmed ride heights on the dashboard.
Fully functional in aerodynamic mode.
Allows for the installation of 35 12.50 R20 tires on the original 20-inch wheels (depending on offset).
Retains all air suspension functions (Aerodynamic, Entry/Exit, Normal, OR1, OR2) only on base model configurations.
A lift greater than 2.5 inches (6.35 cm) with Revel Links may trigger a payload warning and limit the use of the highest off-road settings. An alignment may be necessary to optimize link performance when using OR2 mode as normal ride height.
The Revel Links modify the tension of the Ram's original air suspension system. When the link length is shortened at the front and lengthened at the rear, the onboard computer registers a ride height lower than factory settings and compensates by generating an additional lift of 2.5 inches (6.35 cm). It sounds complicated, but it’s actually very simple.
SHIPPING WITHIN 4-7 DAYS
For Rebel models or those equipped with the factory off-road package, the rear links may not be necessary and can be used for precise adjustments if needed.
