RAM 1500 DT 2019 2024 Air Ride Revel Performance Lift Kit 2.5" (air suspension)
Reference : ACRPBP1500DT
RAM 1500 DT 2019 2024 Air Ride Revel Performance Lift Kit 2.5" (air suspension):
Instantly lift your Ram 1500 without compromising ride comfort or air suspension functionality. The Revel Performance base kit combines precision-machined adjustable Revel links and a robust 6.35 cm (2.5 inch) spacer, lifting the vehicle while retaining original modes such as Aero, OR1, and OR2. Its ingenious design uses the Ram's air suspension system to increase its ride height while preserving comfort and load capacity. Designed for easy installation and rock-solid reliability, it's the ideal solution to level your Ram and enhance its look on and off-road. Upgrade your Ram today and get a taller, more capable vehicle ready for any adventure.
Lifts up to 6.35 cm (2.5 inches)

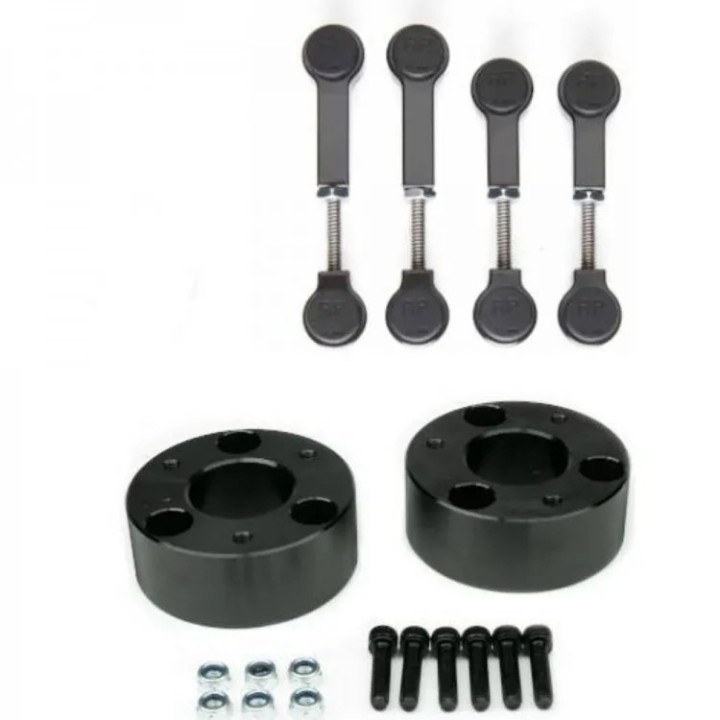

Includes machined aluminum Revel links with rubber fittings and front/rear adjustment
High-density polyurethane or aluminum spacer for increased durability
Unchanged ride comfort and load capacity
Quick installation in 1 to 2 hours with basic tools
Notes:
Compatible only with models equipped with air suspension
Links are not preset:
Front links should be set slightly shorter than original
Rear links should be set slightly longer than original
The shortest links should be installed at the front of the vehicle, and the longest at the rear.
Retains all pre-programmed ride heights on the dashboard
Fully functional in aerodynamic mode
Allows mounting of 35x12.50 R20 tires on original 20-inch rims (depending on offset)
Retains all air suspension functions (Aerodynamic, Entry/Exit, Normal, etc.) (OR1, OR2) only on base pack models.
A lift greater than 6.35 cm (2.5 inches) with Revel Links may result in a payload warning and limit the use of the highest off-road driving settings. An alignment may be necessary to optimize link performance when the OR2 setting is used as normal ride height.
Revel Links modify the tension of the Ram's original air suspension system. When the length of the links is shortened at the front and lengthened at the rear, the onboard computer registers a ride height lower than factory settings and compensates by generating an additional 6.35 cm (2.5 inch) lift. This may sound complicated, but it's actually very simple.
For Ram Rebel or models equipped with the factory off-road package, the rear links may not be necessary and can be used for precise adjustments if needed.
SHIPPING TIME 4-8 DAYS (consult us)
