Lift Kit DODGE RAM 1500 DT 2019 TODAY Suspension + 4" Standard Suspension
Reference : ACRCN1663H
DODGE RAM 1500 DT
(2019 - TODAY-)
4" SUSPENSION LIFT KIT FOR DODGE RAM 1500 DT 2019-TODAY:
The 4" suspension lift kit offers easy installation and an aggressive look at an incredible price.
. Specifically designed for 2019-today RAM 1500 DT, this lift kit joins existing 2"/6" lift kits to improve stance with clearance for larger tires.
These kits are built right here in the USA to the highest quality standards for everyone for improved on-road and off-road performance.

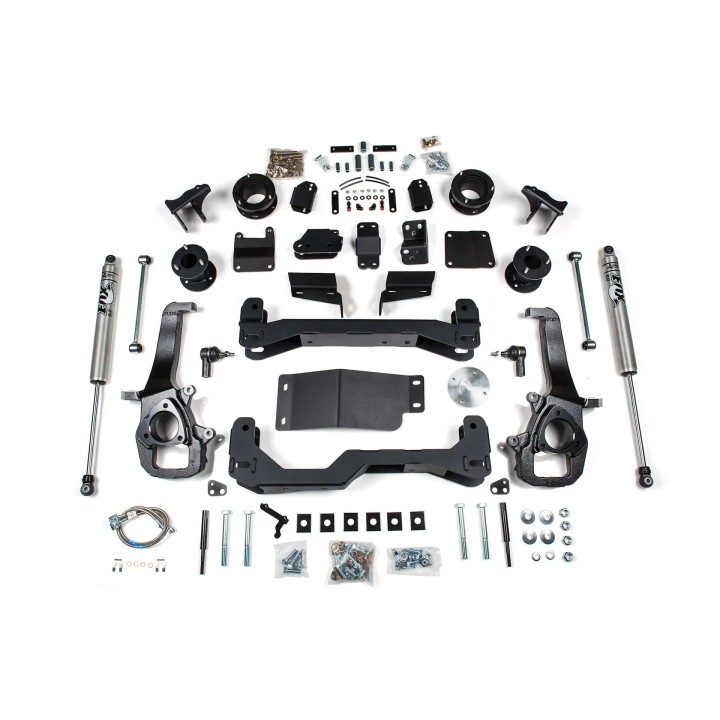

At the heart of this 4-inch system, it uses a pair of 1/4" thick laser-cut high-clearance crossmembers to maximize clearance and provide a strong mounting point for the OE lower control arms.
These, combined with the robust front skid plate system, create a rigid subframe while adding protection to vital steering and drivetrain components. In place of the factory steering knuckles, a pair of specially designed ductile iron replacement steering knuckles are provided to maintain proper steering geometry for ESC system compatibility.
These connect to the factory steering with a pair of heavy-duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multi-point relocation bracket system to secure the front differential and keep CV axle angles to a minimum. A billet aluminum front driveshaft spacer is also provided with longer hardware to allow for reinstallation of the factory driveshaft. The additional ride height on this particular kit comes from a set of top-mounted fabricated steel strut spacers to maintain ride quality and handling characteristics.
To complete the front of this kit, a pair of stainless steel braided brake line and sway bar relocation brackets. At the rear of this 4-inch lift system, the factory coil springs are replaced with 3-inch ProRide coil springs to level the stance. With the additional ride height, the rear suspension geometry is corrected with control arm relocation brackets, a bolt-on rear track bar relocation bracket to recenter the axle, extended length sway bar links to correct the operating angle, and bump stop extensions to properly limit travel.
The rear of these kits is completed with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to provide improved damping performance. All kits are finished in a durable textured black powder coat and shipped with all hardware packs to complete the installation with step-by-step installation instructions.
Features :
4 inches front / 3 inches rear
Maintain factory ride and handling while improving performance
Heavy-duty high-clearance crossmembers
Upper strut spacer
Differential skid plate included for additional protection
CNC machined steering knuckles
5 year / 100,000 mile powertrain warranty
Installation time: 8 hours
Difficulty level 1-5: 3
Does NOT fit 2019-2021 RAM 1500 Classic models
2. Does NOT fit models equipped with the thermal axle option (reference build code DSK-P).
3. Does NOT fit Ram 1500 Rebel or Ram 1500 with the Off-Road Group option.
4. Vehicles equipped with the off-road group option require the Ram 1500 Rebel 4-inch kit to achieve correct ride height. To find out if your truck is equipped with the off-road group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the “Optional Equipment” section, there will be a line item indicating “Off-Road Group” if your truck is equipped with it.
5. RAMs with factory 22" wheels require larger bore knuckles due to a larger wheel bearing assembly. Reference build code WPM or WPZ.
Original 17" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
6. This kit will NOT work on Diesel models.
7. Compatibility: does not work for models with factory rear airbag suspension.
DELIVERY WITHIN 8-10 DAYS
