ISUZU D-MAX 2012 2021 Lift Kit + 4 cms PEDDERS COMFORT Suspension
Reference : ACIDMX803229
ISUZU D-MAX
(2017 - 2021)
PEDDERS COMFORT SUSPENSION LIFT KIT + 4cms FOR ISUZU D-MAX 2017-2021:
Improved appearance and ground clearance.
Looking to lift your D-Max?
Then Pedders Suspension has the solution for you.
This kit includes our excellent Pedders TrakRyder shock absorbers, front coil springs, new rear leaf springs, and the bushings and U-bolts required for installation.
This kit is our entry-level lift kit and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, consider one of our heavy-duty kit options.
This kit will raise the vehicle by approximately 40mm (see actual dimensions below), allowing for better ground clearance and appearance. Can be used to accommodate larger tires. The dimensions indicated assume a standard vehicle. If you have additional equipment on board at the front, such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as different springs may need to be supplied for your application.
For those who use the vehicle in a continuous load state, please consider one of our heavy-duty options.
Note: From the 2019 model year, some D-Max vehicles come new with a softer, more flexible rear spring. Fitting this kit to these vehicles will result in a firmer ride at the rear of the vehicle. Please consider our improved ride kit 803243.
You can identify the spring you have by counting the number of spring leaves.
The new softer spring has 3 leaves, 2 primary and one secondary. The other stiffer spring has 5 leaves, 3 primary and 2 secondary.
These components replace the original items. No other vehicle modifications are necessary. After fitting, we strongly recommend performing a wheel alignment for optimal vehicle performance.
Still not sure if this is the right kit for you? Do you have other questions? Do not hesitate to contact us
Key Features
- 1.75 inch lift kit
- Increased off-road ground clearance
- Sintered iron piston shock absorbers with large 35mm bore
- Premium quality steel coils
- All covered by our 2 year / 25,000 mile warranty
Vehicle Height Information
Front: 800mm with 17 inch wheels
Rear: approximately 40mm higher than standard.
Notes: heights should be measured as shown in the secondary image.

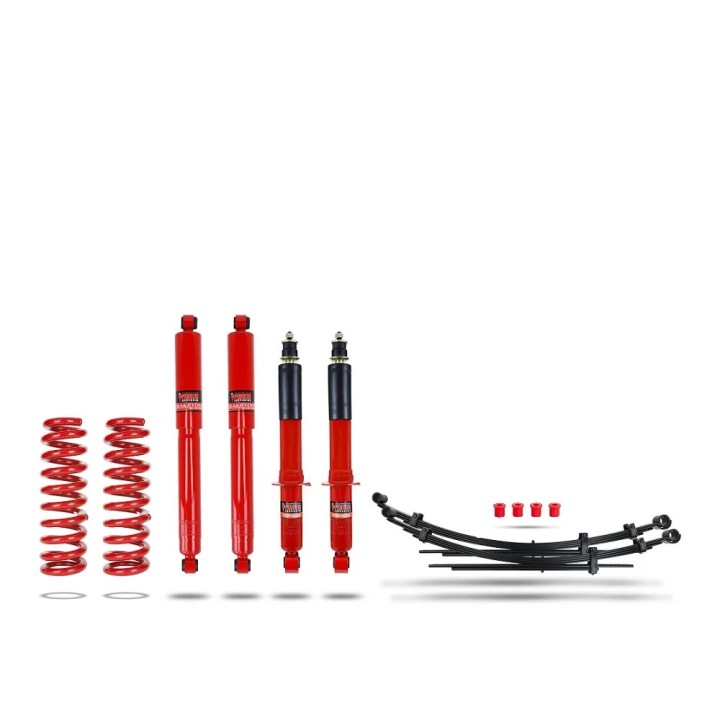

THIS KIT INCLUDES:
- 1 - Axle Shim Kit
- 2 - Pedders Gas Sports Ryder Spring Seat
- 2 - Pedders Trakryder Foam Cell Shock Absorber
- 2 - Pedders Trakryder Leaf Spring
- 2 - Pedders Heavy Duty Coil Spring
- 1 - Urethane Leaf Spring Shackle Bush (4 PKT)
- 1 - Urethane Leaf Spring Bush
This kit is suitable for vehicles equipped with a bumper with high beams, standard wheels and tires, and general equipment such as a refrigerator or toolbox.
ILLUSTRATION IMAGE
This Australian brand offers the best products on the market: 60 years of research and development have been necessary, and a particular attention to customer demands has led to this result. These shock absorbers offer you a high-end suspension, with extraordinary performance regardless of your use, whether on road or off-road. Confident in the quality of their products, Pedders offers a 2-year or 40,000km warranty
DELIVERY WITHIN 8-10 DAYS
