ISUZU D-MAX 2012 2021 Lift + 4 cms PEDDERS COMFORT Suspension Kit

ISUZU D-MAX

(2012 - 2017 - 2021)

PEDDERS SUSPENSION KIT LIFT + 4cms FOR ISUZU D-MAX 2012-2021:

Improved appearance, comfort, and increased ground clearance. Do you want to upgrade your 2012-2017 D-Max? Do you want better driving comfort? Then Pedders Suspension has the solution for you.
This kit includes our incredible Pedders TrakRyder Foam Cell shock absorbers, front coil springs, new rear leaf springs, as well as the bushings and U-bolts required for installation.
This kit is our Premium lift kit and is primarily designed to raise the vehicle and improve ride comfort on vehicles that do not normally carry much weight. If you regularly carry heavy loads or tow a trailer, consider one of our heavier kit options.

This kit does NOT reduce load capacity compared to standard D-Max leaf springs. However, our leaf springs combined with our specially vented shock absorbers provide an improvement in unladen ride, thus reducing some of the harshness that can be felt in the standard vehicle on poor road surfaces. For more information on how we achieve this, please consult our technical pages.
This kit will raise the vehicle by approximately 40mm (see actual measurements below), providing better ground clearance and an improved appearance. Can be used to accommodate larger tires. The dimensions indicated assume a standard vehicle. If you have additional equipment, such as a winch or an off-road front bumper, this will affect the final installed height. If this is the case, please contact us as it may be necessary to provide different springs for your application.

For those who use the vehicle in a continuous load state, consider one of our heavier options.
The fully assembled Ezifit struts in this kit allow for quick and easy installation on your vehicle. These are equipped with a Pedders Foam Cell shock absorber, Pedders springs, as well as new strut bearings and a protective cover. No need to use spring compressors or reuse old parts. Just bolt it on.
These components replace the original parts. No other vehicle modifications are necessary. After installation, we strongly recommend performing a wheel alignment for optimal vehicle performance.

Still not sure if this kit is for you? Have additional questions? Then do not hesitate to contact one of our Lastatungt staff, who can help you.

Pedders Australia

Pedders is Australia's number 1 manufacturer of a comprehensive range of products and services for all suspension, braking, towing, load carrying, and steering needs, suitable for passenger cars, 4X4s, vans, pickups, and race cars. For each new chassis, Pedders develops an integrated and technical suspension solution. Whether it's OEM quality replacement parts, performance parts, passenger cars, or heavy-duty off-road suspensions, they are one of the few manufacturers to offer a complete solution.

While Pedders started as a shock absorber company, today it is unique in that it offers a "system" that it designs, manufactures, distributes, and also installs in Australia under the Pedders brand.

TrakRyder Foam Cell Shock Absorber

Foam cell shock absorbers provide a larger cooling area to improve shock absorber performance and durability by allowing full oil contact with the inner and outer casing. The foam cell technology present in Pedders TrakRyder shock absorbers virtually eliminates all harsh impacts by eliminating oil and air mixing, thus ensuring optimal damping control in all conditions. The 40mm bore and piston are much larger than original shock absorbers and offer a significantly increased improvement in ride.

Pedders Coil Springs

Pedders coil springs belong to the premium variant and are manufactured according to ISO 9001 standard with a tolerance of only +/-2 mm at load height. Pedders springs are simply unmatched in terms of vehicle handling, appearance, and performance.

The design and manufacture of coil springs is a craft that requires strict adherence to a series of rigorous procedures, all essential to the performance of the final product. The spring stiffness, or rate, must be adapted to the weight of the vehicle it is fitted to, as well as the weight of other suspension components and wheels the car is equipped with. Spring stiffness also controls roll stiffness or body roll.

By reducing roll, we reduce the number of wheel changes. Significant camber adjustments can greatly reduce the tire's contact patch with the road, thereby limiting the vehicle's handling potential in corners. The handling of most vehicles is greatly improved by increasing the initial spring stiffness to an optimal rate that maximizes tire grip and reduces roll for better handling. Increasing spring stiffness beyond the optimal value degrades handling potential as tires begin to skip over bumps, thereby reducing grip and safety.

• Isuzu D-Max 2012-21 4WD

We recommend performing a front wheel alignment after installing this product, otherwise your tires will wear sideways. Drive the car 2 to 3 km before adjusting the front suspension.

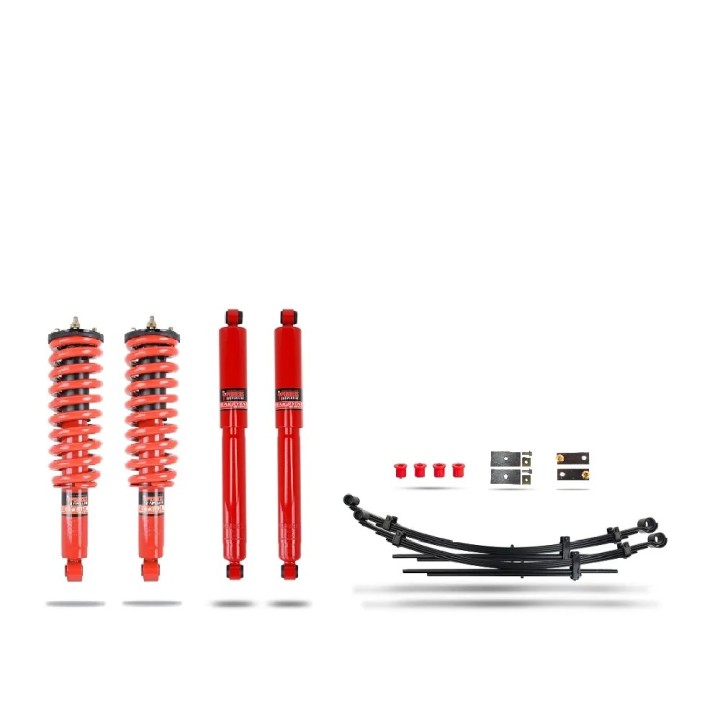

THIS KIT INCLUDES:

•   - Pedders EziFit Foam Strut
•  - Pedders Trakryder Leaf Spring
•   - Pedders Trakryder Foam Cell Shock Absorber
•   - Urethane Leaf Spring Bushing
•   - Urethane Leaf Spring Shackle Bushing (4 P)
•  - Pedders U-Bolt

• Increased safety for you and your fellow road users!
• Warranty: 2 years
• Better road holding at maximum load.
• Better driving comfort at maximum load.
• All springs are progressive.
• All mounting is done without affecting the bodywork, so the product does not affect car warranties.
• Mounting time approximately 1 hour per side at the front and 2.5 hours at the rear.

This Australian brand offers the best products on the market: 60 years of research and development were necessary, a particular attention to the demands made by their customers allowed them to achieve this result. These shock absorbers offer you a High-end suspension, extraordinary performance whatever your use Road or Off-Road. Confident in the quality of their products, Pedders offers a 2-year or 40000km warranty.

DELIVERY WITHIN 8-10 DAYS
