ISUZU D-MAX 2021 TO TODAY Suspension Kit + 4cms Lift PEDDERS COMFORT
Reference : ACTR803112
ISUZU D-MAX
(2021 - TODAY-)
PEDDERS COMFORT SUSPENSION KIT + 4cms FOR ISUZU D-MAX 2021-TODAY :
Improved appearance and ground clearance.
Looking to lift your D-Max?
Then Pedders Suspension has the solution for you.
This kit includes our excellent Pedders TrakRyder shock absorbers, front coil springs, new rear leaf springs, and the necessary bushings and U-bolts for installation.
This kit is our entry-level lift kit and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, consider one of our heavy-duty kit options.
This kit will raise the vehicle by approximately 40mm (see actual dimensions below), allowing for better ground clearance and appearance. Can be used to accommodate larger tires. The dimensions shown assume a standard vehicle. If you have additional equipment on board at the front, such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as different springs may need to be supplied for your application.
For those who use the vehicle in a continuously loaded state, please consider one of our heavy-duty options.
These components replace the original items. No other modifications are necessary on the vehicle. After fitting, we strongly recommend a wheel alignment for optimal performance of your vehicle. You
are still not sure if this kit is right for you? Have other questions? Then do not hesitate to contact one of our team members here at Pedders who can assist you.
Key Features
- 4 cm lift kit
- Increased off-road ground clearance
- Sintered iron piston shock absorbers with large 35 mm bore
- Premium quality steel coils
- All covered by our 2-year warranty
-
Vehicle Height Information
Front: 800 mm with 17-inch wheels
Rear: approximately 40 mm higher than standard.
Notes: heights should be measured as shown in the secondary image.

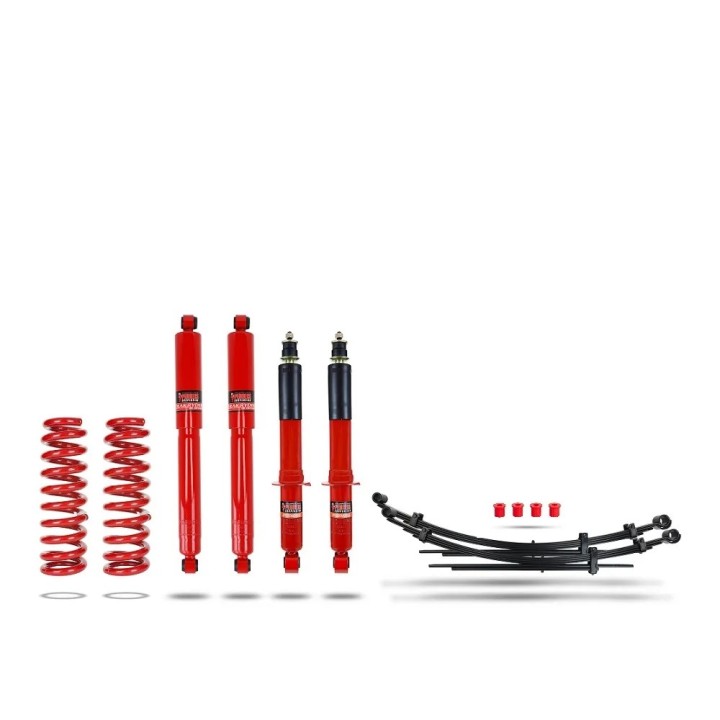

- 4 - SQ U-bolt 62 x 14 x 185 mm
2 - Pedders Gas Sports Ryder FRONT Shock Absorbers
2 - Pedders Trakryder REAR Foam Cell Shock Absorbers
2 - Pedders Trakryder Leaf Spring
2 - Pedders Heavy Duty Coil Spring
1 - Urethane Leaf Spring Shackle Bush (4 P)
ILLUSTRATIVE IMAGE
This Australian brand offers the best products on the market: 60 years of research and development were necessary, a particular attention to the demands made by their customers allowed them to achieve this result. These shock absorbers offer you a High-end suspension, extraordinary performance whatever your use Road or Off-Road. Confident in the quality of their products, Pedders offers a 2-year or 40000kms warranty
DELIVERY WITHIN 8-10 DAYS
