ISUZU D MAX 2020 TODAY Suspension Lift + 5 cms
Reference : ACHDTID3H4
ISUZU D-MAX
(2020 - TODAY-)

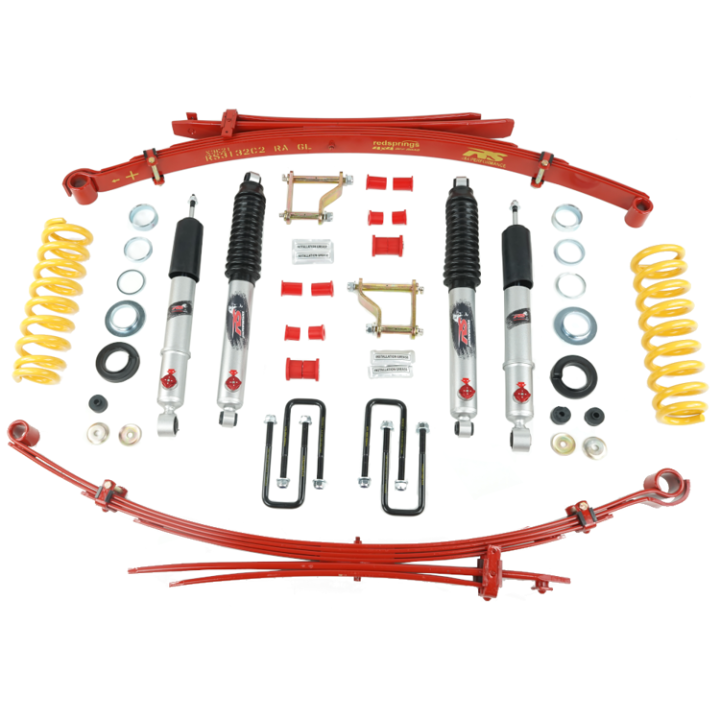

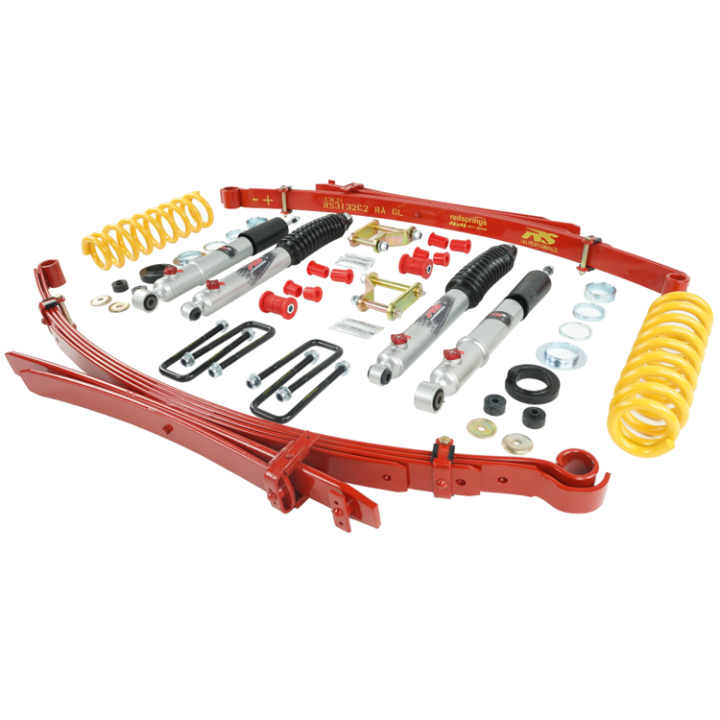

SUSPENSION LIFT KIT FOR ISUZU D-MAX 2020-TODAY:
Suitable ONLY for Double Cab models
Give your ISUZU D-MAX a great aggressive look while providing enough ground clearance to fit larger tires with the Red Springs 5 cms suspension lift kit.
This easy-to-install kit offers a total transformation, giving your ISUZU D-MAX a more imposing presence while maintaining smoothness. Like all Red Spring products, the kit has been designed, manufactured, and tested for extremely difficult off-road applications with comfort and firm ride concepts in mind.
Progressive springs combine greater driving comfort with safe handling even in extreme situations. Depending on the suspension tuning, they have different operating characteristics. Their special construction allows for smooth driving and, if necessary, will ensure difficult suspension work.
Nitrogen-charged RS-HDT4 shock absorbers have a 4-step adjustable damping control knob for even greater driving comfort, and are useful both on difficult off-road terrain and on the road. The Twintube construction offers additional protection. The product has a special coating that protects even better against rust.
Specifications:
Easy bolt-on installation
Increased ground clearance
Ideal for larger tires, Improved highway/paved road stability
Seamless eye-ball joint - 360-degree robotic welded to the piston shaft for maximum strength and joint durability for off-road use.
Durable dust protection - to prevent dust and other foreign bodies from entering the internal damping cylinder for maximum durability
Nitrogen gas charged - designed to prevent shock fade and for better damping control
Hard chrome piston rod - 18 mm precision induction - hardened rod for maximum durability and strength
Oven-hardened coating - for maximum resistance and protection against rust and corrosion
Fun and flexible damping valve control - 4 adjustable steps to adapt to the dynamic driving needs of any driver. Made of high-quality anodized aluminum for maximum rust resistance
Robust multi-layer seal - prevents oil leaks and dirt penetration into the internal shock absorber cylinder for maximum durability
External reservoir cylinder - 57 mm seamless solid cylinder construction suitable for heavy-duty off-road applications
Sintered piston with Teflon coating - 35 mm robust piston design for maximum driving comfort and precise, smooth piston movement
Custom-designed rebound valve - improved driving comfort and precise rebound damping control
Inner damping cylinder - twin-tube construction to protect and prevent dents caused by external factors for precise piston movements
Compression valve - custom-designed for precise oil damping control
Front: 50 mm with a load of 50 to 80 kg
Rear: 40 mm with a load of 200 kg
Suitable ONLY for Double Cab models
DELIVERY IN 8-10 DAYS
