Basic Rear Air Suspension KIT for HYMER SLC B-MC T with Compressor and Specific Control Panel
Reference : ACNR097HV034B
Hymer SLC B-MC T & B-MC I 550 - 690
MAD air suspension for Hymer SLC B-MC T & B-MC I 550 - 690 with AL-KO chassis. The ultimate suspension for those seeking better comfort!
Basic Rear Air Suspension KIT for HYMER SLC B-MC T with Compressor and Specific Control Panel:

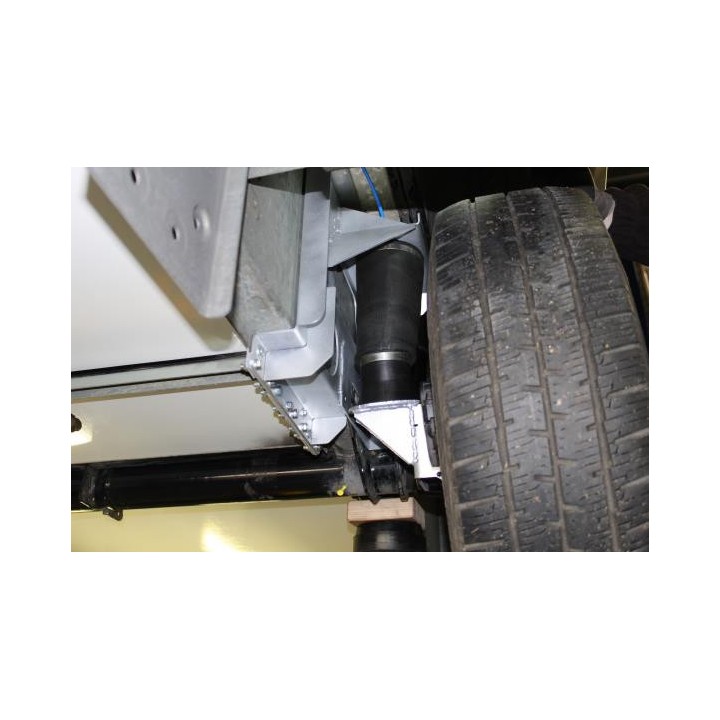

1 set of additional air springs for the rear axle to reinforce the standard suspension. The air suspension is installed between the chassis and the axle (Figure System 4).
Whether the suspension is hard or soft, high or low, the vehicle adapts to the driver's needs by adjusting the air pressure. The air suspension raises and maintains the rear of the vehicle at standard height, regardless of the load. This operation can be performed either with a tire inflator when stopping at a service station, or with the integrated compressor (optional).
Advantages :
Better suspension behavior due to increased travel.
Less sensitivity to crosswinds.
Better road holding.
Maximum height gain under maximum load.
Reduced braking distance thanks to optimized braking pressure.
Reduced tire wear.
Production and development in accordance with ISO 9001 and TÜV standards.
The set is supplied with a parts certificate from RWTÜV Essen. Correct installation must be confirmed by an approved inspection body.
Click here to request the parts certificate and/or installation instructions.
Installation time is approximately 240 minutes (basic kit) or 300 minutes (compressor kit for dual-circuit systems).
Specifics :
The air suspension consists of two rolling bellows:
Thanks to the rolling bellows, your van, minivan, or SUV drives comfortably and safely. These vehicles behave more and more like a car. This is suitable as long as the vehicle is lightly loaded. However, with heavy loads or with a trailer, handling can become problematic. In this case, the rolling bellows offer increased comfort and safety.
The air suspension consists of two rolling bellows:
Thanks to the rolling bellows, your van, minivan, or SUV drives comfortably and safely. These vehicles behave more and more like a car. This is suitable as long as the vehicle is lightly loaded. However, handling can become problematic with heavy loads or with a trailer. In these cases, the rolling bellows offer increased driving comfort and safety.
Available in the following versions:

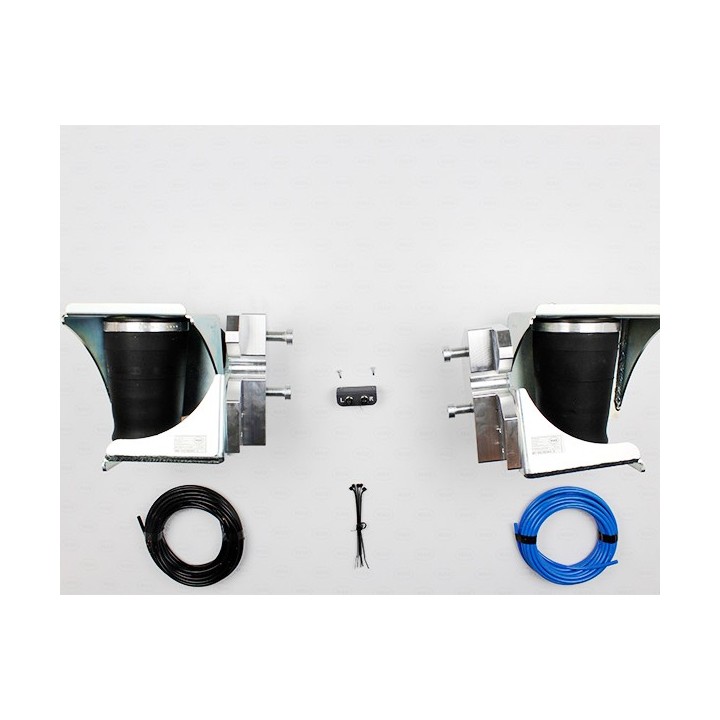

Basic: Includes additional mounting hardware (air hose, T-fittings, etc.) and an inflation valve for inflation with a tire inflator.
MAD's suspension system is there to compensate for different load weights and to support and assist the car's original spring system
so that you maintain safety and comfort even at the maximum allowed load. Suspensions never increase the maximum allowed load weight for the car.

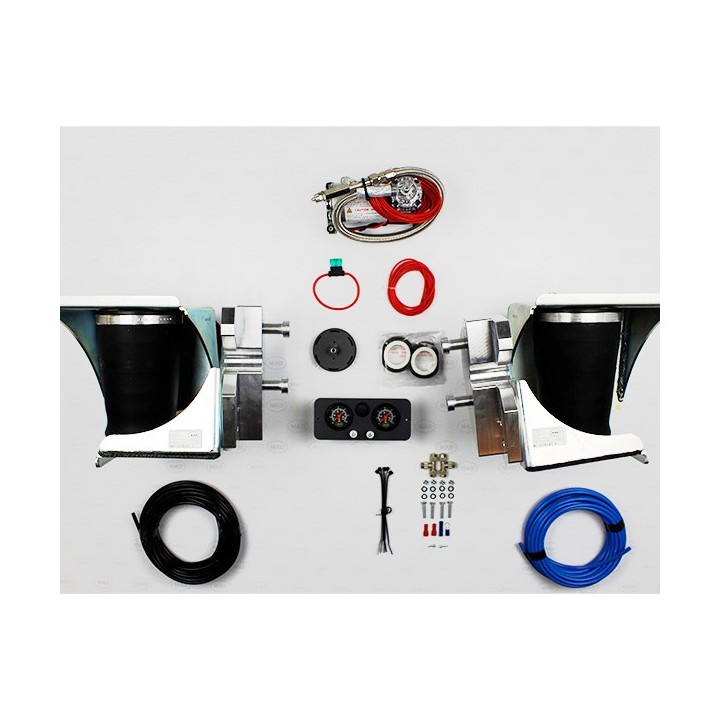

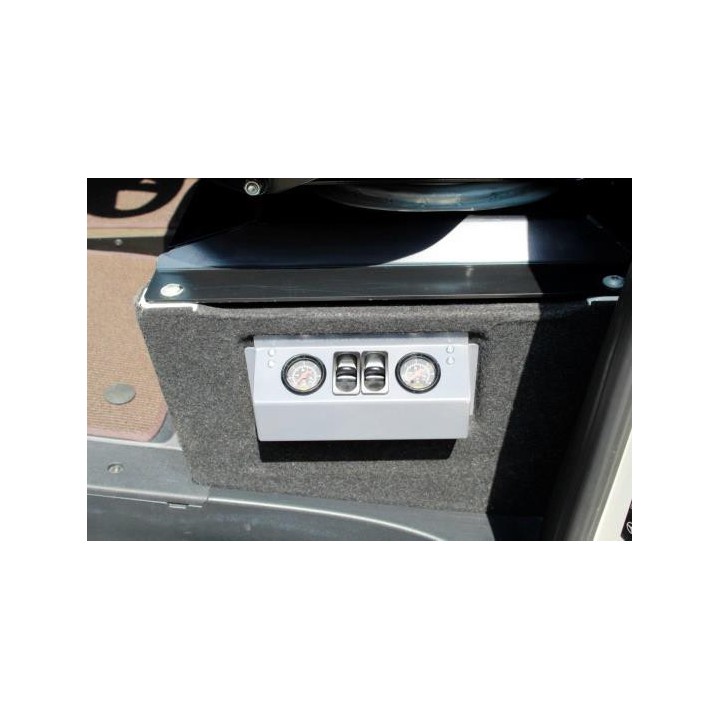

Dual-circuit compressor kit: it includes additional mounting hardware (air hose, T-fittings, etc.), a 45-liter compressor, and a dual control panel in the cabin, allowing easy control of the air springs from the cabin. Both bellows can be inflated independently to maximum pressure and deflated to minimum pressure. This allows balancing different loads and ensuring vehicle stability in corners.
SHIPPING LEAD TIME WITHIN 1-2 WEEKS
