Rear Air Suspension for MERCEDES SPRINTER 2006 2018 4.6 5.0t without compressor
Reference : ACNR197HV544B
MERCEDES SPRINTER W906 4.6 5.0t
(2006 - 2018)
Rear Air Suspension for MERCEDES SPRINTER 2006 2018 4.6 5.0t without compressor:
Manual air suspension for Mercedes Sprinter / Volkswagen Crafter 5.0T: ideal for those who wish to adjust the firmness of the suspension themselves.
The MAD air suspension is generally designed to work in conjunction with the vehicle's original rear suspension. Available in different versions, it is suitable for drivers who want to adjust the firmness of their suspension themselves. Inflation can be manual (requiring access to compressed air to inflate the bellows to the desired pressure) or done with a compressor and a pressure gauge (allowing adjustment while driving). A full air suspension compensates for the original suspension and automatically adjusts the load level. Installing an air suspension radically transforms the driving experience, whether the vehicle is loaded or not. Each suspension is specifically designed to fit your car model. It also allows for raising the rear of the vehicle if necessary, for example, to increase ground clearance. With MAD air suspension, comfort and safety reach a whole new level.
Compatible with the following car models:
- Mercedes Sprinter dual wheels 2018+ (Non FWD & 4-wd)
- Mercedes Sprinter 509 - 519 CDI, chassis included, from 2006 (also available with dual wheels, but not in 4x4 version).
- VW Crafter 5.0T chassis included 2006-2016 (except dual wheels and 4x4)
For optimal results, install the air bellows with a compressor. This way, you can adjust the air pressure of the bellows at the touch of a button in the cabin, while avoiding damaging the bellows due to too high or too low pressure.
Advantages:
- Minimum pressure in unloaded air bellows: 0.5 bar
- Minimum and maximum pressure under load from 1.0 to 3.0 bar
- Your tires will wear less.
- The best air bellows on the market
- Never affects automotive warranties
- Reduced sensitivity to crosswinds
- All MAD products are TÜV approved.
- Best quality and fit
- All kits are available with and without compressor.
- 2-year warranty on materials (excluding compressor)
- 3-year warranty on materials with compressor (electronics: 1 year)
The MAD suspension system is designed to compensate for load variations and to support and assist the vehicle's original suspension system, ensuring safety and comfort even at the maximum authorized load. The suspensions never exceed the vehicle's maximum authorized load.

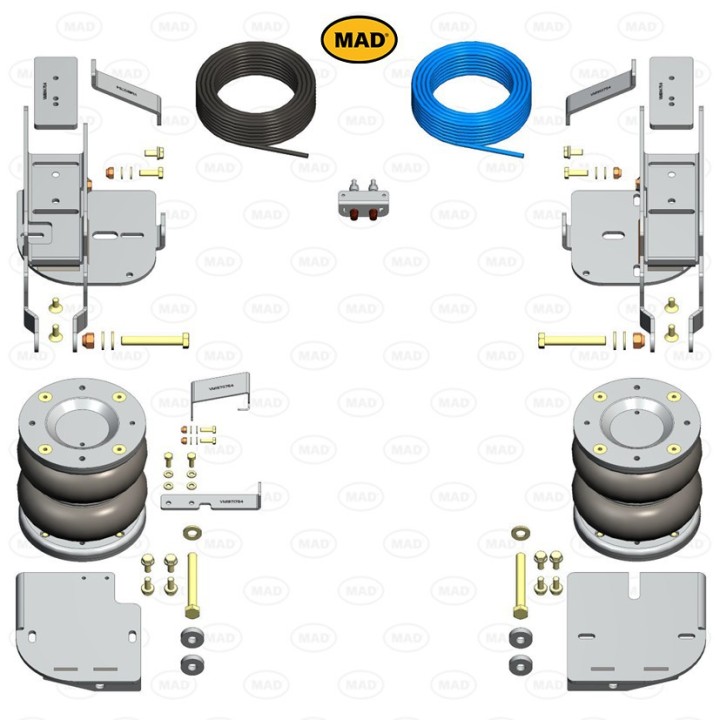

All images are universal for the respective mounting system. The appearance of the bellows and supports may slightly differ from the images shown, but they will always fit the vehicle for which the kit is designed.
