Rear Air Suspension for HYMER 570 with Compressor and Specific Control Panel
Reference : ACNR097HV094CS1
MERCEDES SPRINTER 4x4 - HYMER MLT 570 / 580 / DOVA etc
(2018 - PRESENT)
Rear Air Suspension for HYMER 570 / 580 with Compressor and Specific Control Panel:

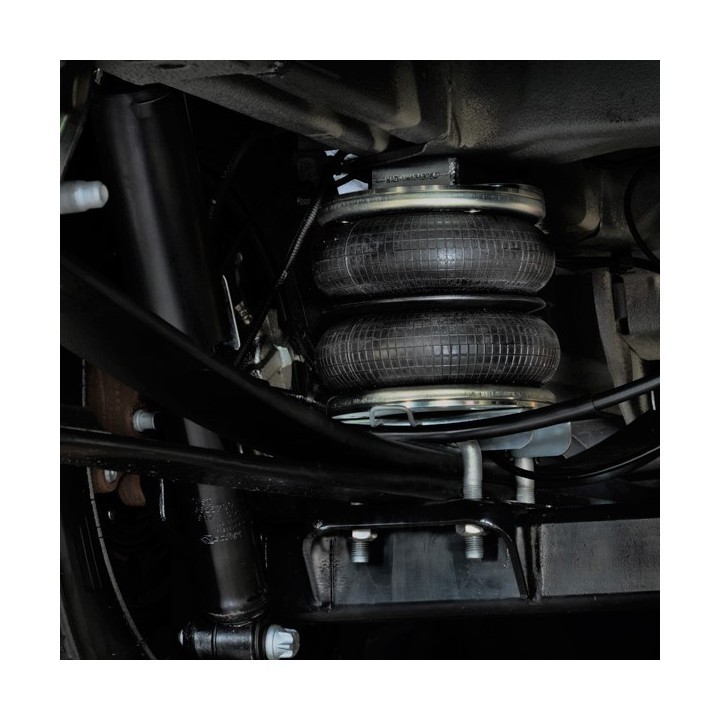

MAD has developed a special version of its popular air suspension that fits perfectly with the raised versions of the Mercedes Sprinter 4X4 2018+. This air suspension is designed to eliminate the sagging that all these motorhomes experience when built at the factory. We let the images speak for themselves!

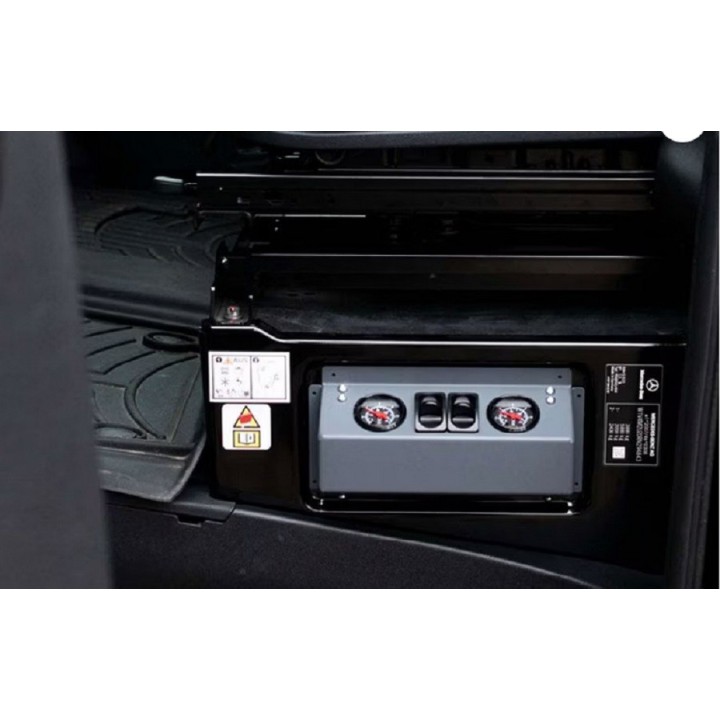

This version of air suspension includes the MAD compressor and a model-specific control panel that attaches to the side of the driver's seat, as shown in the image.

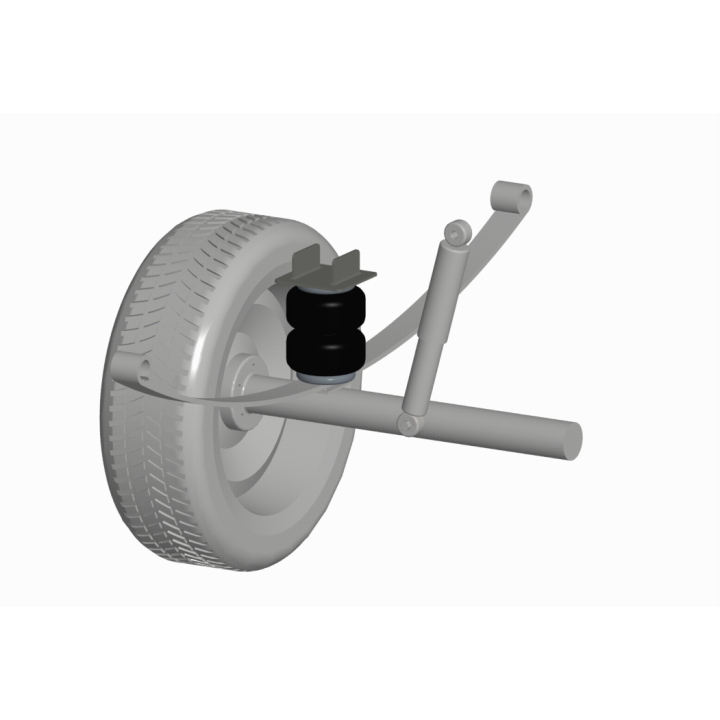

The MAD air suspension is in most cases designed to work with the car's original rear suspension. The air suspension comes in different variants and is suitable for the car owner who wants to adjust the hardness of their suspension themselves. The air suspension is available in manual fill as you need access to air to fill the bellows to the desired pressure. It is also available with a compressor and a pressure gauge so you can adjust the desired pressure yourself, even while driving. There is then a complete air suspension that compensates for the car's original suspension and automatically adjusts the load level. By installing an air suspension on your car, you get a completely different driving experience, whether you are loaded or unloaded. All air suspensions are model-specific to match your particular car model. With the air suspension, you can also adjust the height of the rear of your vehicle for specific occasions if you need higher ground clearance. Comfort and safety reach a whole new level with MAD air suspension. All MAD air suspension kits are TUV approved. This pricing does not affect the car's warranties or vehicle inspection.
Compatible with the following car models:
- Mercedes Sprinter 4-wheel drive incl. 2018+ (for single wheel vehicles)
- Perfectly suited for Hymer MLT 570/580/Dovra etc.
- RWD models 4x2
You achieve the best results if the air bellows are mounted with a compressor. You can then partially adjust the air pressure in your bellows with a simple push of a button located inside the car's cabin, but you also avoid the risk of damaging the bellows with too high or too low pressure in them as you are constantly aware of what the pressure you have.
The air suspension has the advantage of being able to have different hardness in the left and right bellows, which can be a big advantage if, for example, you have more load on one side of your vehicle. The air suspension also generally supports heavier loads than a steel spring, but it should be noted that an air spring does not feel good under a constant and heavy load, so in these cases, e.g. a robust steel spring would be preferable.
Why should you choose MAD air suspension?
- Minimum pressure in the air bellows when empty 0.5 BAR
- Minimum and maximum pressure under load 1.0 - 3.0 BAR
- All MAD products are TUV approved
- Less wear on your tires
- Never affects car warranties
- The best air bellows on the market
- Reduced sensitivity to crosswinds
- Better quality and fit
- All kits are available with and without compressor
- 2-year material warranty without compressor
- 3-year material warranty with compressor (Electronics 1 year)
SHIPPING TIME WITHIN 1-2 WEEKS
