Comfort Rear Air Suspension for HYMER SLC B-MC I with Compressor and Specific Control Panel
Reference : ACNR097HV034C
Hymer SLC B-MC T & B-MC I 550 - 690
MAD air suspension for Hymer SLC B-MC T & B-MC I 550 - 690 with AL-KO chassis. The ultimate suspension for those seeking better comfort!
COMFORT REAR AIR SUSPENSION KIT + COMPRESSOR AND SPECIFIC CONTROL PANEL FOR HYMER SLC B-MC T :
MAD Air suspension including a compressor and a model-specific control panel, specially developed for Hymer SLC B-MC T and B-MC I 550 - 690 motorhomes with AL-KO chassis.
In most cases, MAD is designed to work with the car's original rear leaf spring suspension (semi-air suspension). Air suspension is available in different variants and is suitable for car owners who want to be able to adjust the stiffness of their suspension themselves. Air suspension is available with manual filling as you need access to air to fill the bellows to the desired pressure. It is also available with a compressor and a pressure gauge so you can adjust the desired pressure yourself, even while driving.
By installing air suspension on your car, you get a completely different driving experience, whether you are driving loaded or unloaded. All air suspensions are model-specific to match your particular car model. With air suspension, you can also adjust the height of the rear of your vehicle on specific occasions if you need higher ground clearance. Comfort and safety reach a whole new level with MAD air suspension. Good examples of cases where it might be good for you to be able to gain more height at the rear are when you need to get on and off a ferry, park the motorhome in a parking space, or have to cross a high obstacle.

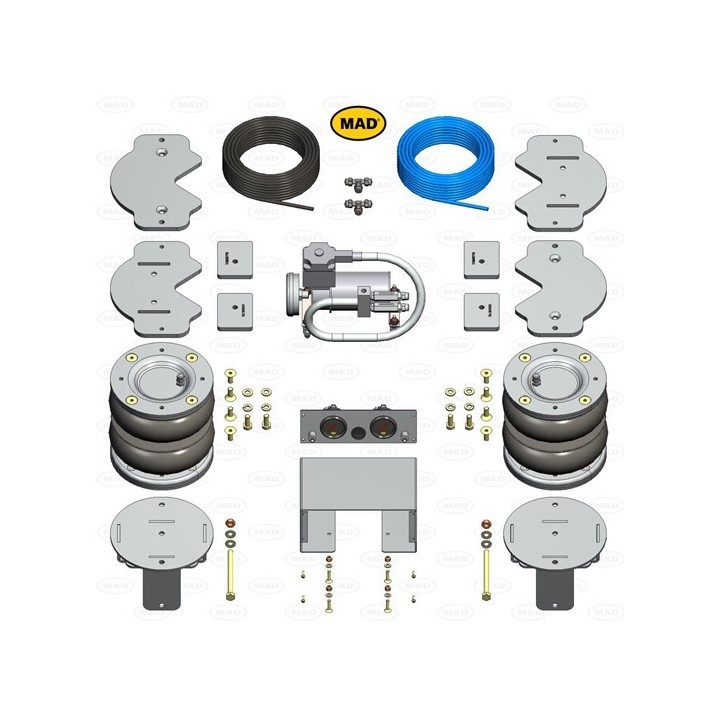

This kit includes a 2-way compressor and pressure gauges as shown in the image. The control panel is model-specific. You can easily adjust the right and left bellows individually while driving and, with a simple press of a button downwards, you can also release air from the bellows if necessary.
MAD in Holland has existed since 1976 and specializes in suspension and air suspension for passenger cars, vans, motorhomes, and other special transports. MAD has a large development department that works solely to produce the best materials and the most suitable fixings for your vehicle model without affecting other details or car warranties. The quality at MAD is the highest of all manufacturers, and by producing large series of products, you can maintain prices at a very good level for the end customer.
Compatible with the following car models:
- Hymer SLC B-MC T & B-MC I 550 - 690
You get the best results if the air bellows are mounted with a compressor. You can then partially adjust the air pressure in your bellows with a simple press of a button inside the car's cabin, but you also avoid the risk of destroying the bellows with too high or too low pressure in them because you are constantly aware of the pressure you have.
Air suspension has the advantage of being able to have different stiffness in the right and left bellows, which can be a big advantage if, for example, you have more load on one side of your vehicle. Air suspension also generally supports heavier loads than a steel spring, but it should be noted that an air spring does not feel good under constant and heavy load, so in these cases, e.g., a robust steel spring would be preferable.
Product Specifications:
- Minimum pressure in empty air bellows 0.5 BAR
- Minimum and maximum pressure under load 1.0 - 3.0 BAR (6.0 BAR for shorter occasions)
- Less wear on your tires
- The best air bellows on the market
- Does not affect car warranties
- Easy to install
- Reduced sensitivity to side winds
- All MAD products are TUV approved and inspection approved
- Best quality and fit
- All kits are available with and without compressor
- 2-year material warranty without compressor
- 3-year material warranty with compressor (Electronics 1 year)
MAD's suspension system is there to compensate for different load weights and to support and assist the car's original spring system
so that you maintain safety and comfort even at the maximum allowed load. Suspensions never increase the maximum allowed load weight for the car.
SHIPPING TIME WITHIN 1-2 WEEKS
