BASIC Rear Air Suspension KIT for HYMER 910 AMC 2022 TO TODAY
Reference : ACNR097HV064B
Hymer 910 Amc
(2022 - Today-)

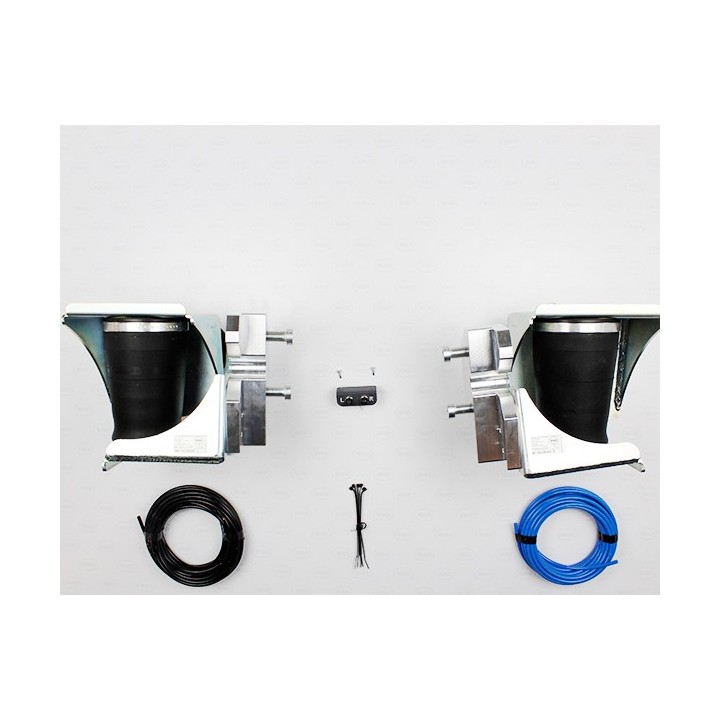

BASIC Rear Air Suspension KIT for HYMER 910 AMC :

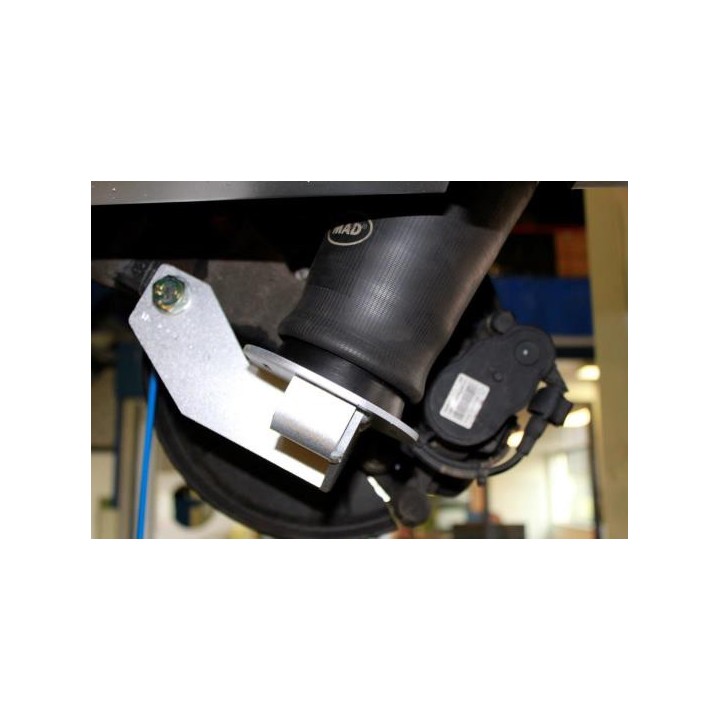

1 set of additional air springs for the rear axle to reinforce the standard suspension. The air suspension is installed between the chassis and the axle (System Figure 4).
Whether the suspension is hard or soft, high or low, the vehicle adapts to the driver's needs by adjusting the air pressure. The air suspension raises and maintains the rear of the vehicle at standard height, regardless of the load. This operation can be performed either with a tire inflator during a stop at a service station, or with the integrated compressor (optional).
Advantages:
Better suspension behavior thanks to increased travel.
Less sensitivity to crosswinds.
Better road holding.
Maximum height gain under maximum load.
Reduced braking distance thanks to optimized braking pressure.
Reduced tire wear.
Production and development compliant with ISO 9001 and TÜV standards.
The set is supplied with a parts certificate from RWTÜV Essen. Correct installation must be confirmed by an approved inspection body.
Click here to request the parts certificate and/or installation instructions.
Installation time is approximately 240 minutes (basic) or 300 minutes (compressor kit for dual-circuit systems).
Specifics:
- Only for vehicles equipped with an electric handbrake and a track width of 1,980 mm
The air suspension consists of two rolling bellows:
Thanks to the rolling bellows, your van, minivan, or SUV drives comfortably and safely. These vehicles behave more and more like a car. This is suitable as long as the vehicle is lightly loaded. However, with heavy loads or with a trailer, road holding can become problematic. In this case, the rolling bellows offer increased comfort and safety.
The air suspension consists of two rolling bellows:
Thanks to the rolling bellows, your van, minivan, or SUV drives comfortably and safely. These vehicles behave more and more like a car. This is suitable as long as the vehicle is lightly loaded. However, handling can become problematic when carrying heavy loads or towing a trailer. In this case, forced rolling bellows offer increased driving comfort and safety.
Available in the following versions:
Basic: Includes additional mounting hardware (air hose, T-fittings, etc.) and an inflation valve for tire inflation.
Dual-circuit compressor kit: it includes additional mounting hardware (air hose, T-fittings, etc.), a 45-liter compressor, and a dual control panel in the cabin, allowing easy control of the air springs from the cabin. Both bellows can be inflated independently to maximum pressure and deflated to minimum pressure. This allows for balancing different loads and ensuring vehicle stability in corners.
SHIPPING TIME WITHIN 1-2 WEEKS
