Right Pivoting Module VAN-SWING FIAT DUCATO for Bike Rack REF 25500R
Reference : 25500R
Right Pivoting Module VAN-SWING FIAT DUCATO for Bike Rack REF 25500R :

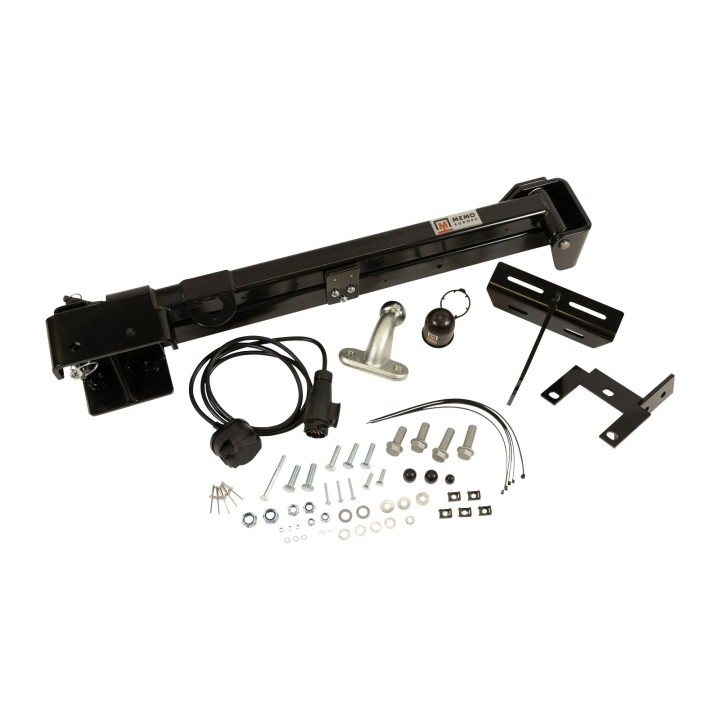

9320258 1 x Right pivoting Van-Swing module
9320259 | 1 x Trailer hitch ball Van-Swing-Right

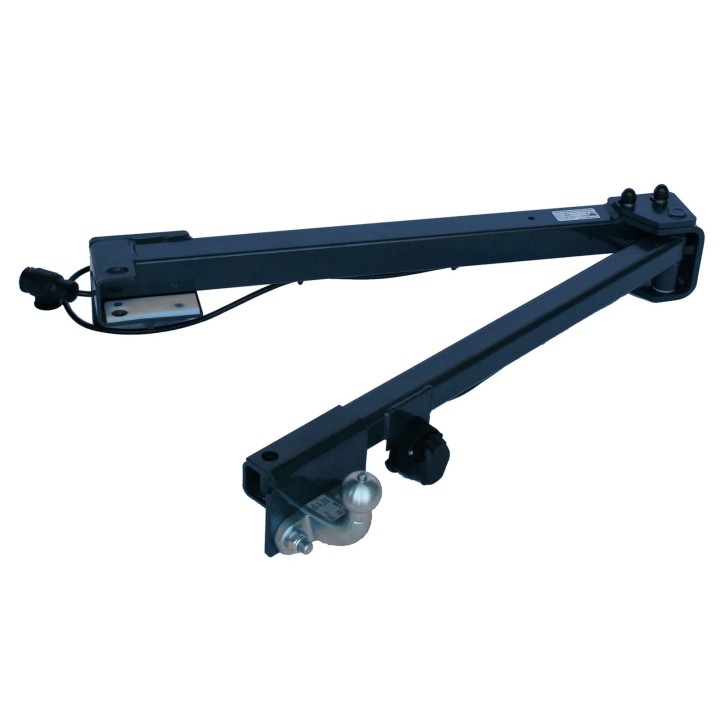

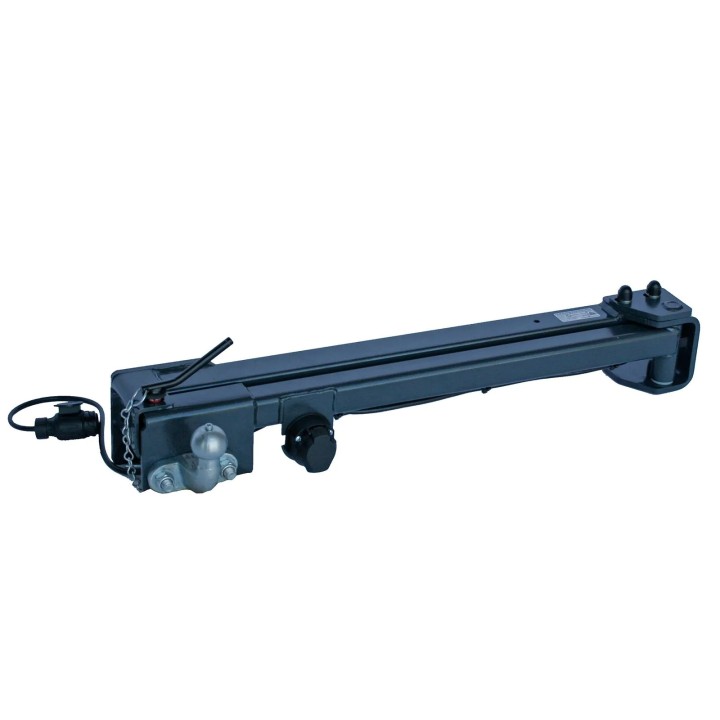

Van-Swing, pivoting module for panel vans with left or right hinge
A well-known problem with panel vans is finding a suitable bike rack. Bike racks on the tow ball obstruct the opening of the rear doors. Additionally, the bikes are too heavy for rear door bike racks, and the bikes need to be lifted too high.

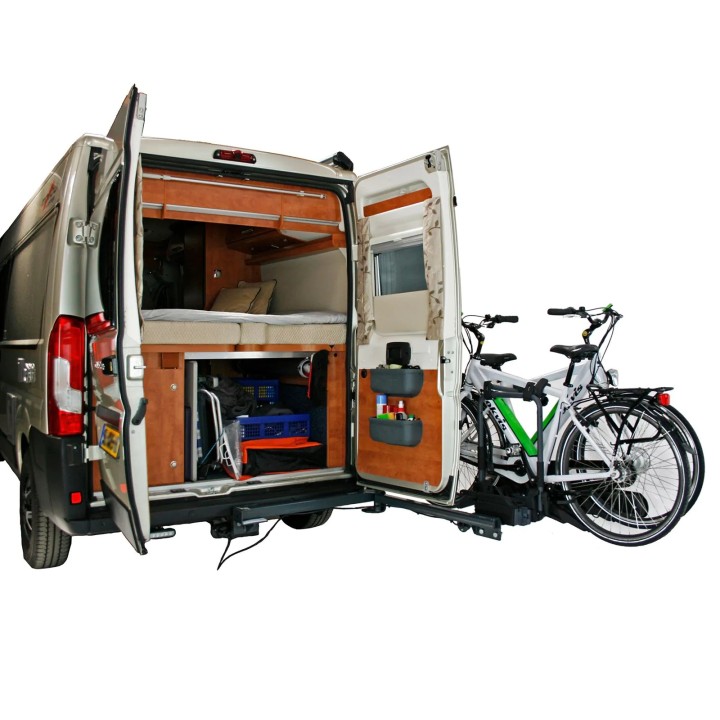

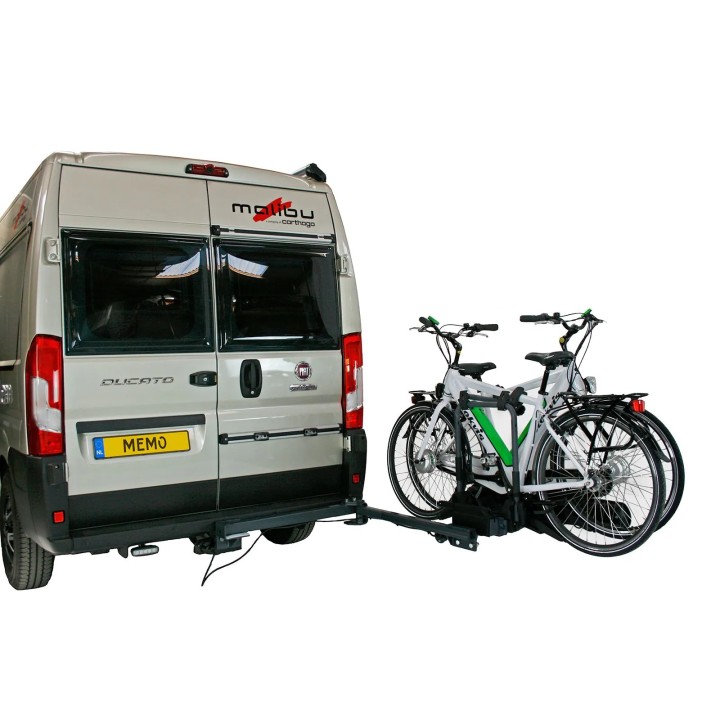

The perfect solution for this is the Van-Swing pivoting module. By mounting the simple pivoting module on an existing or to-be-installed hitch, you can use your own bike rack. You do not need to remove the bikes and the bike rack to open the rear doors. The pivoting module allows you to swing the bike rack with the bikes to the side so that both rear doors can be opened simultaneously.

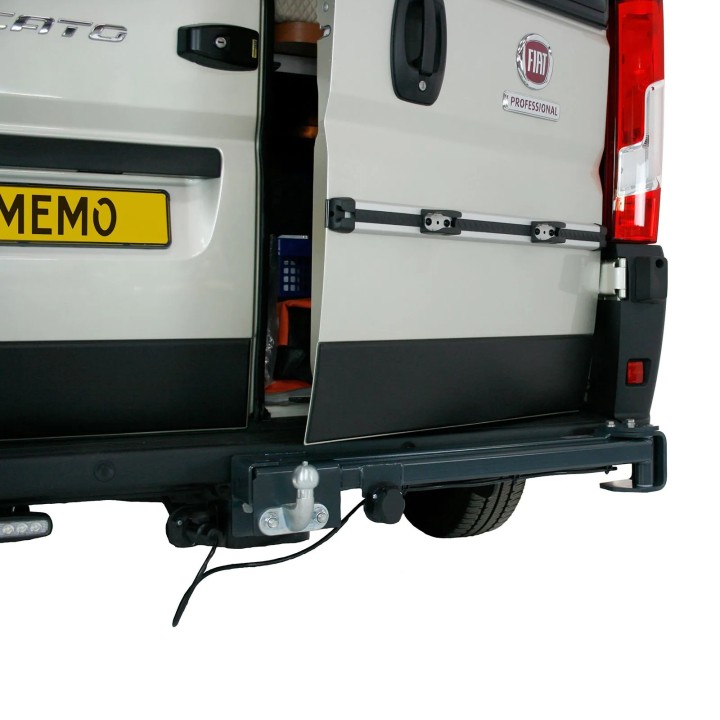

The VAN-Swing uses the existing mounting points of your trailer hitch. In some cases, the module can be mounted on an existing trailer hitch. If you have doubts about the suitability of your tow hitch, please contact your dealer or Memo in advance. If a tow hitch is not yet available, we can provide it separately if necessary. The Van Swing pivoting module is not designed for towing trailer loads.
The advantages of the hinge on the right side of the van: + Safety, the rotating rod turns towards the "curb side" and not towards the road. + Convenience, the right door opens first, no need to fully open the luggage rack.
The advantages of the hinge on the left side of the van: + Convenience, there is no need to go around the rotating bar to access the rear doors. + Practical, the right door opens easily to quickly grab something.
The load capacity of the Van-Swing is 60 kg. This includes the bikes and the bike rack. This means that if the bike rack weighs 15 kg, the bikes can still weigh a maximum of 45 kg. Is the combination of bikes and bike rack too heavy? Then we recommend the Van-Star bike rack, which can carry (electric) bikes weighing up to 60 kg.
Because the module is placed above the hitch, the bike rack is at knee height, which is ideal for bikes that do not need to be lifted high. Due to the use of existing mounting points, no modifications need to be made to the vehicle itself. The module is suitable for all Ducato models from 2006 onwards. Upon request, you can also purchase the module for Volkswagen T5 and T6, Renault Master from 2003 to 2010, and Ford Transit Custom from 2014 onwards. In this case, just contact us. The VAN-Swing comes with a built-in 13-pin socket to extend the existing socket. The Van-Swing can now only be ordered in black.
Equipped with European approval. First in its class!\
-
Suitable for van models:
-
Fiat: Ducato
