Suspension Kit FORD RANGER 2019 2022 Lift + 7.6 cms SUPERIOR
Reference : ACFRRH36285M
FORD RANGER
(2019 - 2022)
SUPERIOR SUSPENSION KIT FRONT REAR LIFT + 7.6 cms FOR FORD RANGER 2019-2022:
This complete suspension kit from Superior Engineering is the key to a unique combination of power, reliability, and driving comfort. Enhance your off-road adventures with Superior Engineering leaf springs. Designed to provide superior support, these leaf springs play a crucial role in determining your vehicle's ride height, travel limits, and overall handling. The progressive front coil springs, thanks to their slightly softer linear design and characteristics, offer optimal ground pressure and stability for your off-road vehicle, even in situations close to full race.
Superior Engineering's Monotube IFP strut is manufactured from the highest quality materials, including CR3+ plated bored and honed cylinder tubes, aerospace-grade billet aluminum components, and high-pressure seals. The 20mm hard chrome shafts are designed for maximum strength and durability, making them ideal for lift and performance applications.

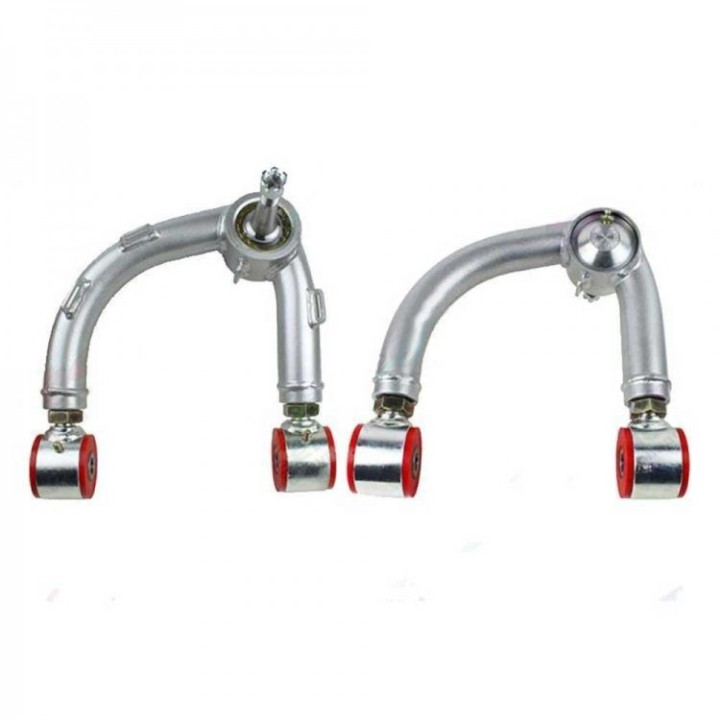

These heavy-duty upper control arms will correct camber and caster after a lift is installed. They also have the advantage of providing coil clearance, eliminating the problem of the coil binding on the arm causing wear during travel.
Specifications:
Ensures correct driving characteristics on the lift
Suitable for on-road and off-road environments
Improves the handling of the lifted car
Monotube IFP nitro shock absorber with 46mm Teflon-coated piston and 20mm hard chrome shaft
These progressive coil springs offer consistent performance and predictable handling
Upper control arms will correct camber and caster after a lift is installed.

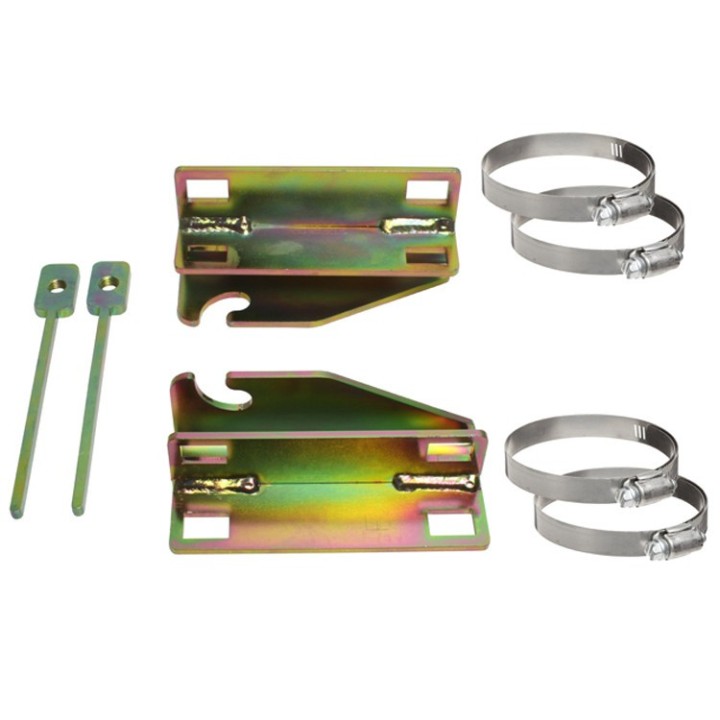

The center bearing spacer kit lowers the driveshaft, reducing its vibrations due to suspension lift.

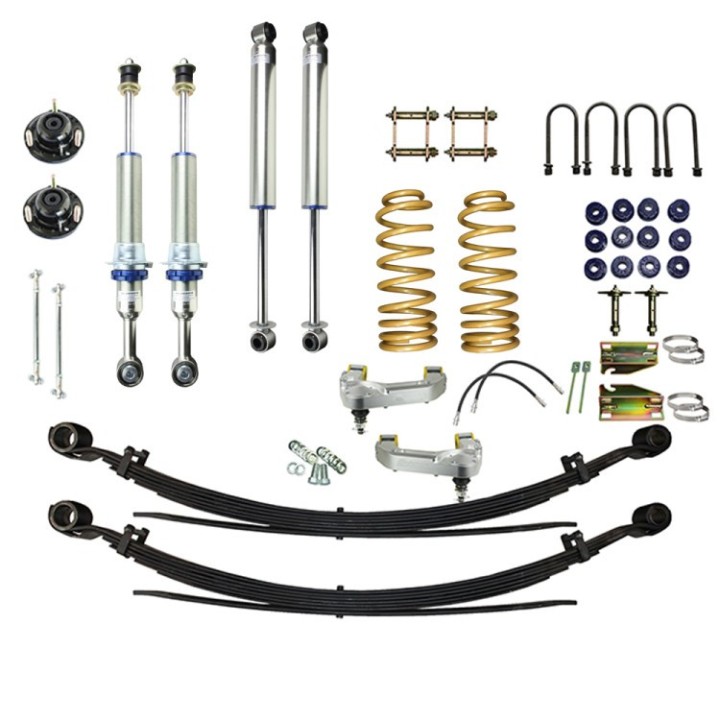

The Lift Kit consists of the following elements:
(2) Front Monotube IFP nitro shock absorber
(2) Front King Springs coil spring
(2) Rear shackle
(2) Braided rear brake line
(2) Rear Monotube IFP nitro shock absorber
(2) Rear 1.5" leaf spring
(4) Rear U-bolt
(12) Polyurethane bushing

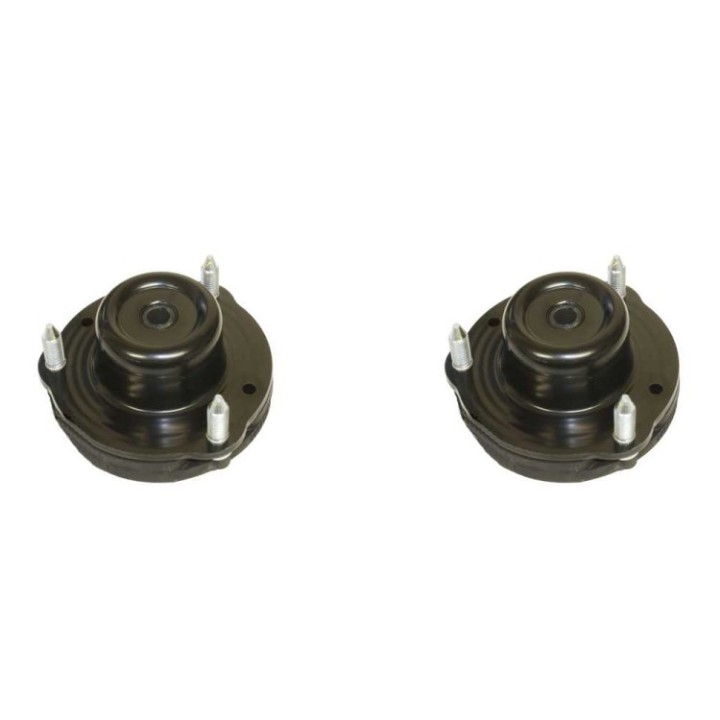

(2) Replacement strut top cap
Center bearing spacer kit
(2) Adjustable upper control arm
(2) Efs greaseable fixed pin
Loading:
Ford Ranger 19-22 | Front 50-100 kg | Rear 100 kg
