Rear Air Suspension KIT for FORD RANGER 2023 TODAY with Special Specific Panel Compressor
Reference : ACNR067CS124CSM
FORD RANGER
(2023 - TODAY-)

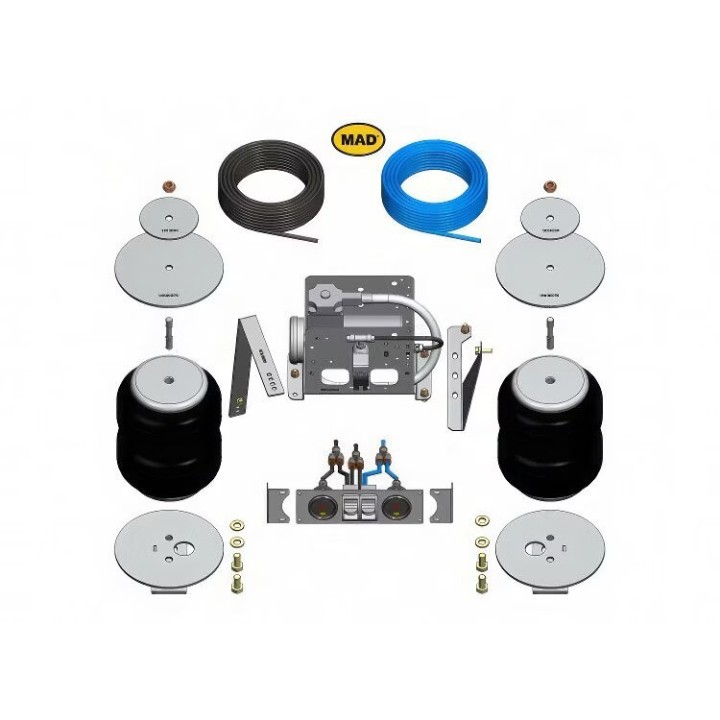

Rear Air Suspension KIT for FORD RANGER
with Special Specific Panel Compressor :
-
MAD air suspension kits, specially designed for the Ford Ranger 2023+, are engineered to work seamlessly with the vehicle's original rear suspension in most cases. Perfect for Ford Ranger owners seeking a customized solution, this kit offers the unique ability to adjust suspension stiffness as needed. Whether you prefer manual filling, where air access is required, or a system with a compressor and pressure gauges for on-the-go adjustments, MAD has the right solution for you. This kit is a suitable model for mounting the compressor under your car's hood.
By choosing the MAD model-specific air suspension for your Ford Ranger 2023+, you will transform your driving experience. Feel the difference in comfort and control, both loaded and unloaded. Additionally, when terrain demands it, the system offers the ability to adjust the vehicle's rear height for improved ground clearance. With MAD's air suspension, you achieve a superior balance of comfort and safety. Another advantage is the ease of installation; no drilling or additional modifications are required, and best of all, the MAD kit does not affect your Ford Ranger's warranty. Make a smart choice for your car - choose MAD's model-specific air suspension kit.
Suitable for the following car model below:
- FORD Ranger IX Diesel Turbo 2.0TDCi-16V 4WD Pick-Up 2023 170HP P02X
- FORD Ranger IX Diesel BiTurbo 2.0TDCi-16V 4WD Pick-Up 2023 206HP YN2X
- FORD Ranger IX Diesel Turbo 3.0TDCi-24V 4WD Pick-Up 2023 240HP BF2X
You get the best results if the air bellows are mounted with a compressor. You can then partly adjust the air pressure in your bellows by simply pressing a button inside the car's cabin, but you also avoid the risk of destroying the bellows with too high or too low pressure in them because you are constantly aware of the pressure you have.
Air suspension has the advantage of being able to have different hardness in the right and left bellows, which can be a big advantage if, for example, you have more load on one side of your vehicle. Air suspension also generally supports heavier loads than a steel spring, but it should be emphasized that an air spring does not feel good under constant and heavy load, so in these cases, e.g. a robust steel spring would be preferable.
- Minimum pressure in empty air bellows 0.5 BAR
- Minimum and maximum pressure at load 1.0 - 3.0 BAR
- Reduced wear on your tires
- The best air bellows on the market
- Does not affect car warranties
- Reduced sensitivity to side winds
- All MAD products are TUV approved
- Better quality and fit
- All kits are available with and without compressor
- 2-year material warranty without compressor
- 3-year material warranty with compressor (Electronics 1 year)
SHIPPING TIME 1 - 2 WEEKS
MAD's suspension system is there to compensate for different load weights and to support and assist the car's original spring system so that you maintain safety and comfort even at the maximum permitted load. Suspensions never increase the maximum permitted load weight for the car.

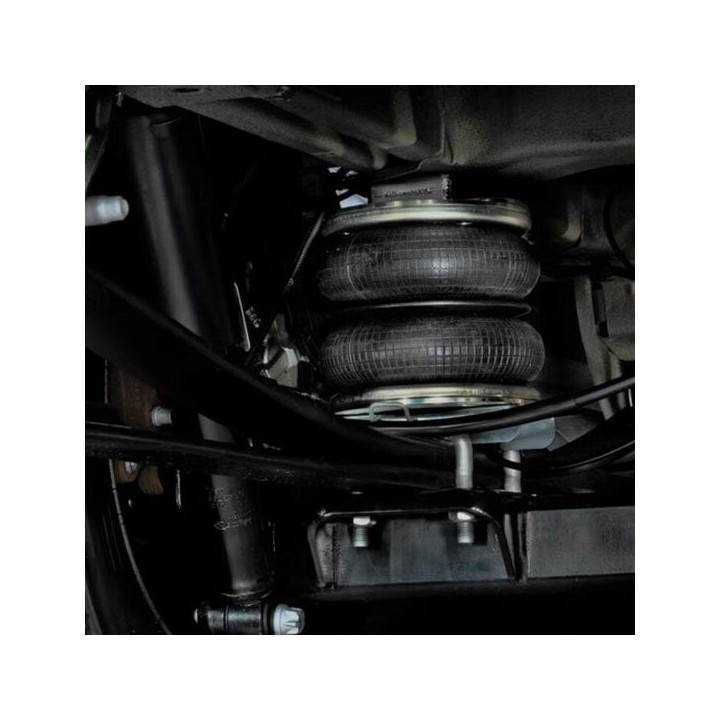

All images are universal for the respective mounting system. The appearance of the bellows and brackets may differ somewhat from the available images, but they always correspond to the intended car kit.
