Rear Air Suspension Kit for FORD RANGER 2023 TODAY with Specific Panel Compressor
Reference : ACNR067CS124C
FORD RANGER except PHEV model
(2023 - TODAY-)
Rear Air Suspension Kit for FORD RANGER
with Specific Panel Compressor:
-
MAD's air suspension kits are mostly designed to work in conjunction with the car's original rear suspension. The air suspension is available in different variants and is suitable for the car owner who wants to adjust the stiffness of their suspension themselves. The air suspension is available in manual fill as you need access to air to inflate the bellows to the desired pressure. It is also available with a compressor and a pressure gauge so you can adjust the desired pressure yourself, even while driving. There is then a complete air suspension that compensates for the car's original suspension and automatically adjusts the load level.
By installing an air suspension on your car, you get a completely different driving experience, whether you are driving loaded or unloaded. All air suspensions are model-specific to match your particular car model. With air suspension, you can also adjust the height of the rear of your vehicle for specific occasions if you need a higher ground clearance. Comfort and safety reach a whole new level with MAD air suspension. MAD air suspension requires no modifications to the car for installation, and you never need to drill holes or anything else to install supports for air bellows. MAD rates never affect the car's warranty.
Fits the following car models below:
- FORD Ranger IX Diesel Turbo 2.0TDCi-16V 4WD Pick-Up 2023 170HP P02X
- FORD Ranger IX Diesel BiTurbo 2.0TDCi-16V 4WD Pick-Up 2023 206HP YN2X
- FORD Ranger IX Diesel Turbo 3.0TDCi-24V 4WD Pick-Up 2023 240HP BF2X
You achieve the best results if the air bellows are mounted with a compressor. You can then partially adjust the air pressure in your bellows with the push of a button located inside the car's cabin, but you also avoid the risk of damaging the bellows with too high or too low pressure in them as you are constantly aware of the pressure you have.
The air suspension has the advantage of being able to have different stiffness in the left and right bellows, which can be a big advantage if, for example, you are carrying more load on one side of your vehicle. Air suspension also generally supports heavier loads than a steel spring, but it should be noted that an air spring does not feel good under a constant heavy load, so in those cases, for example, a robust steel spring would be preferable.
- Minimum pressure in the air bellows when empty 0.5 BAR
- Minimum and maximum pressure under load 1.0 - 3.0 BAR
- Reduced wear on your tires
- The best air bellows on the market
- Does not affect car warranties
- Reduced sensitivity to crosswinds
- All MAD products are TUV approved
- Best quality and fit
- All kits are available with and without compressor
- 2-year material warranty without compressor
- 3-year material warranty with compressor (1-year electronics)
SHIPPING TIME 1 - 2 WEEKS
The MAD suspension system is designed to compensate for different load weights and to support and assist the car's original spring system so that you maintain safety and comfort even at the maximum allowed load. Suspensions never increase the maximum allowed load weight for the car.

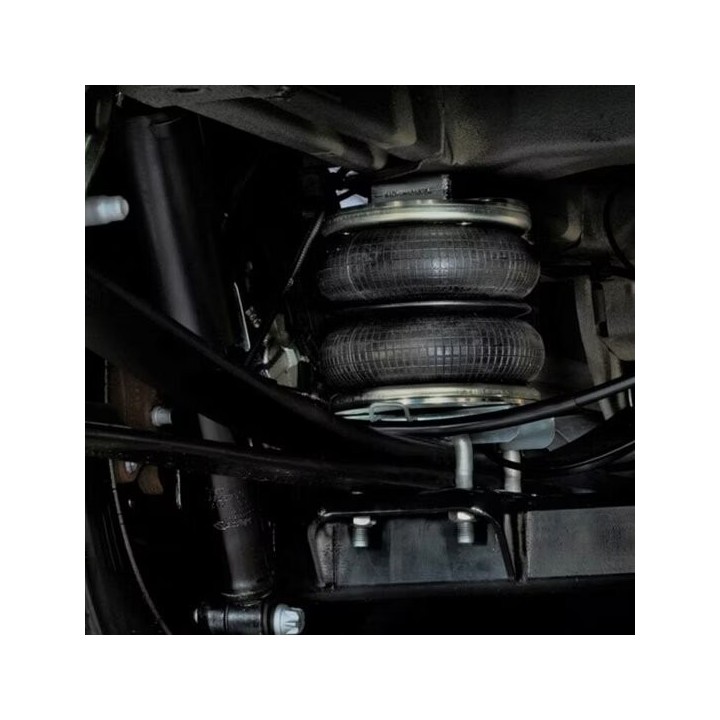

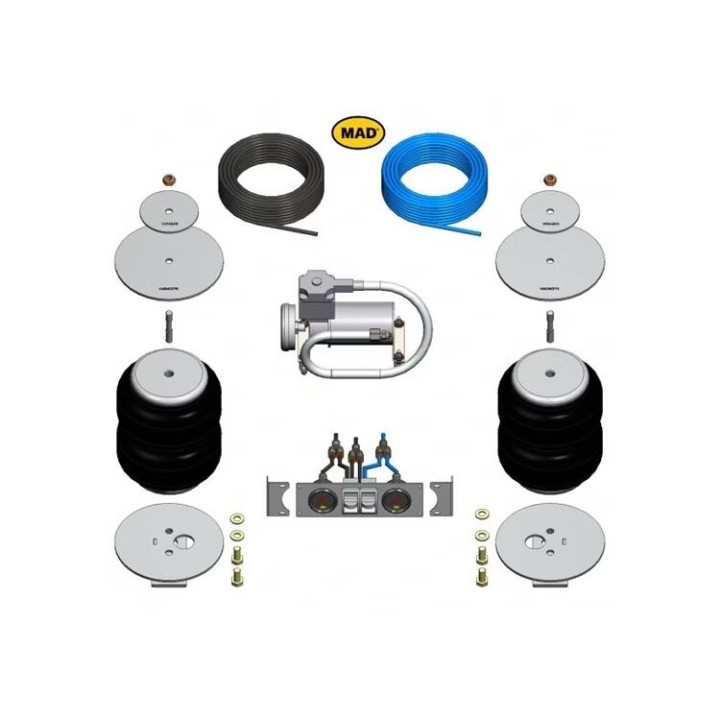

All images are universal for the respective mounting system. The appearance of the bellows and supports may differ somewhat from the available images, but they always correspond to the intended car kit.
