Rear Spare Wheel Carrier FORD CUSTOM 2012 2024 Hinge 180° 270°
Reference : ACWHMFCT1224
FORD TRANSIT / TOURNEO CUSTOM
(2012 - 2024)
Rear Spare Wheel Carrier FORD CUSTOM 2012 2024 :
Designed for all double rear door models with high roof or low roof
The main advantages of our wheel carriers are:

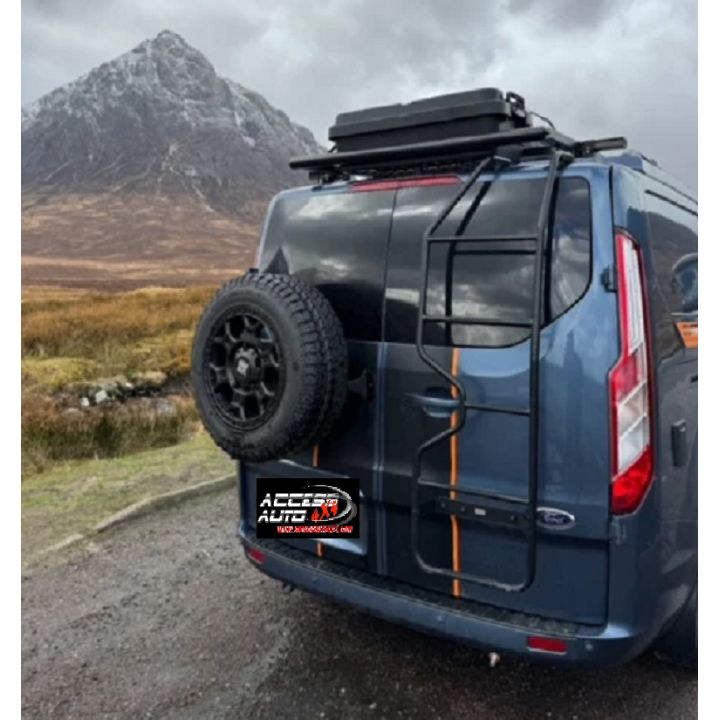

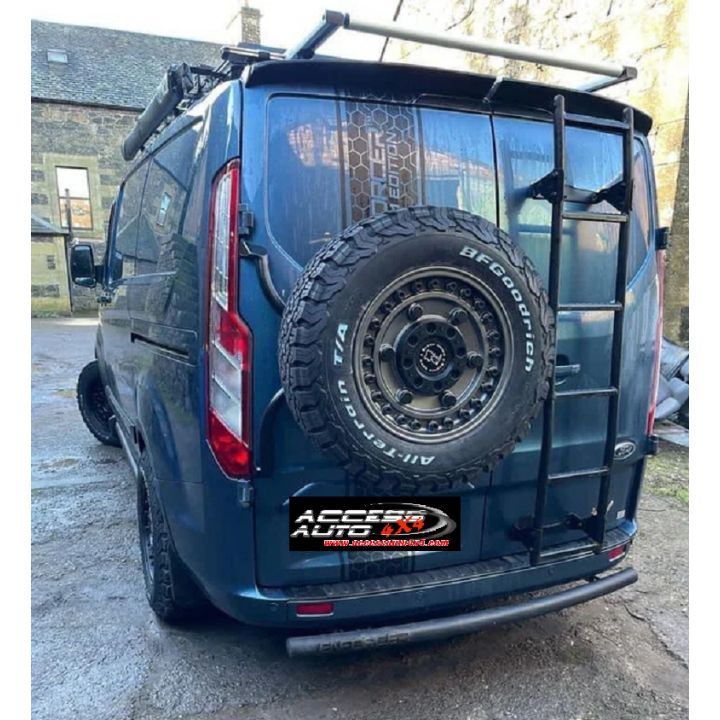

Fitting the spare wheel to the rear of the vehicle keeps the wheels clean compared to when it is installed underneath and makes access to the wheel safer and easier.
The wheel carrier swings with the opening of the rear door without any additional operation.
Our wheel carriers are fully compatible with parking sensors, rear van windows, and rear wipers.
No need to move the vehicle's license plate or vehicle badge.
You gain extra space under the van to fit gas, fuel, or water tanks.
Wheel carriers can be used for wheels too large to fit the standard under-van cradle.
-
Spare wheel carrier details :

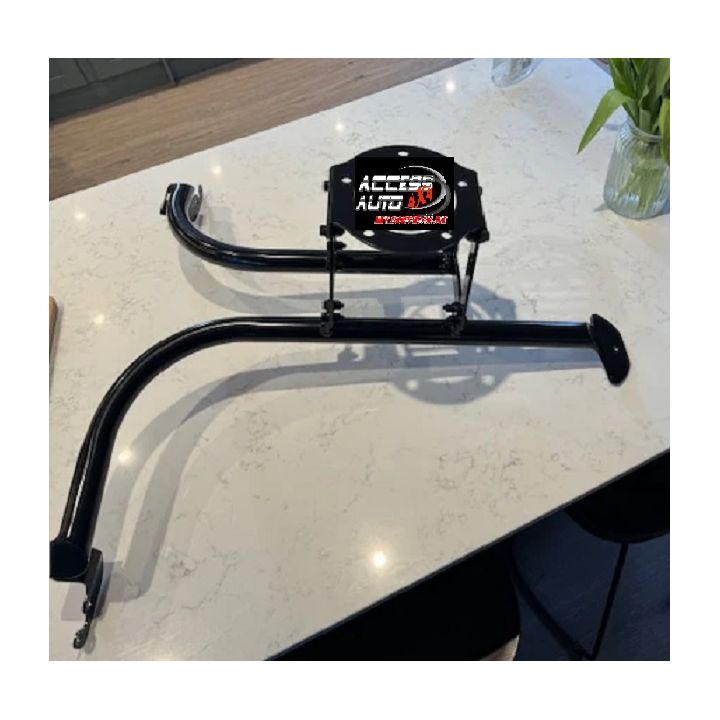

All wheel carriers are hand-built and are available within a 14 working day lead time. The construction is very robust, using Mig welded mild steel tube and plate manufactured in-house by our skilled staff.
The wheel carriers are carefully designed for each vehicle make so that they do not obscure license plates or taillights.
Wheel carriers are supplied unfinished in bare metal for you to finish as you wish.
Wheels are bolted to the carrier using standard wheel bolts and we recommend using locking wheel bolts (M14x1.5 thread) for added security. Please note that these are not included with your product.
-
Wheel carrier installation
The necessary fixings to fit the wheel carrier to the van are supplied.
The wheel carriers pivot on the existing hinges on the door and require drilling a hole in the door skin. This wheel carrier can be installed in vans with 180 or 270 degree hinges.
The system attaches to the door using the factory Ford door hinge bolts. The door does not need to be removed to fit this.
Always test fit any bolted product before painting to ensure it fits.
All drilled holes will require any bare metal painting to prevent corrosion. We also seal the door skin support and the door skin which eliminates point loading of the bolts while sealing the hole to prevent water ingress.
Product weight: 8 kg.
SHIPPING TIME (product made to order within 12/15 days)
