BONNET SOLAR PANEL for LAND ROVER DEFENDER 2020 TO TODAY SET

LAND ROVER DEFENDER 90 110 130

(2020 - TODAY-)

BONNET SOLAR PANEL for LAND ROVER DEFENDER 2020 TO TODAY SET:

No more flat battery problems!

The solar panel is perfect for camping or travel. No more worries about a flat battery when camping without a power connection!

Slim and lightweight design:

The flexible module simply mounts on the bonnet of your new Land Rover Defender and - without having to start the engine - provides ecological power to charge 12V devices such as refrigerators, laptops, mobile phones, cameras, radios, lights, etc. because this custom solar panel is mounted directly on your bonnet, no additional roof rack or similar is required for installation.

The complete plug-and-play system is easy to install.

Unlike a portable solar panel, you don't have to set it up or store it in the vehicle, which could waste valuable cargo space.

High efficiency and excellent performance:

The solar system provides a constant supply of clean solar energy to your primary and/or secondary vehicle batteries during the day. This allows you to run 12V accessories without starting the engine and without fear of draining your battery and leaving you stranded.

Simple installation:

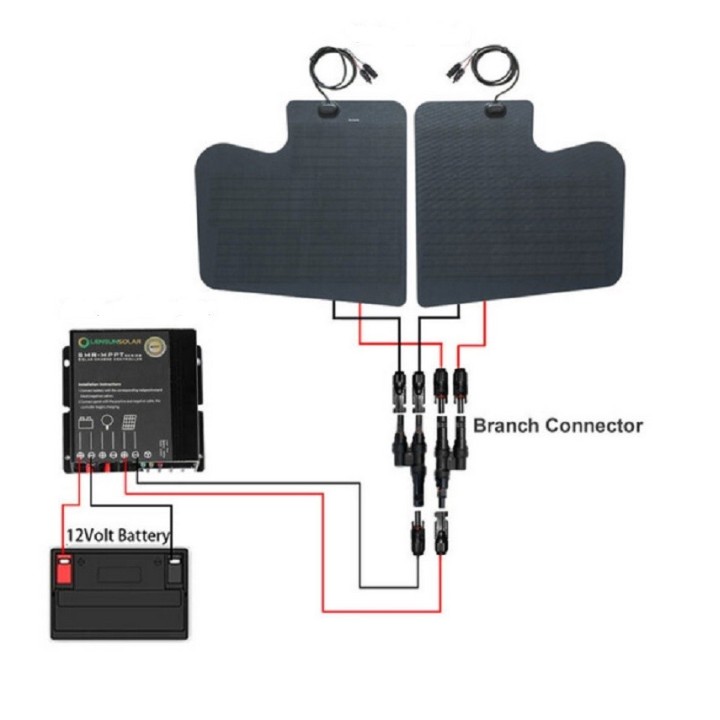

This solar panel solution is a complete plug-and-play system when paired with our optional MPPT solar charge controller and can be installed in just 1.5 hours.

Durable and robust construction:

Composed of a semi-flexible, strong and durable module construction, the solar panels are guaranteed to withstand extreme environmental conditions for years without maintenance.

Reduced bonnet glare:

The favorable surface finish of the panels reduces glare while driving due to their light-absorbing properties.

FEATURES:

Suitable for Land Rover New Defender for 90W:

Maximum power: 90W

Working voltage (VMP): 17.5V

Working current (IMP): 5.1a

Short-circuit current (ISC): 5.65a

Open circuit voltage (VOC): 21V

Power tolerance range: +/- 3%

Maximum system voltage: 500 V

Total weight: approx. 3.5 kg

Solar cell efficiency: 22.5%

Junction box protection class: IP 68/2 m Cable / Mc4 Plug

Values under standard test conditions: air mass: AM1.5 / Irradiance: 1000W / M2 / Cell temperature: 25 ° C

FEATURES:

Our solar module consists of monocrystalline solar cells in PERC technology, which have much higher efficiency and more durability than other mono solar cells. The extremely high-quality ETFE film is characterized by excellent light transmission and weather resistance and is also heat, corrosion and UV resistant. ETFE has self-cleaning properties that ensure the best performance day after day.

The panels have a durable fiberglass substrate backsheet that offers better heat dissipation than PET backsheets. The ETFE film and fiberglass backsheet can withstand extreme environmental conditions and are maintenance-free for years.

With a thickness of only 3 mm, the solar module is powerful, waterproof and ultra-light (60% less than conventional solar modules). You transport 90 watts of energy from solar modules only 3 mm thick on the bonnet of your new Land Rover Defender, which in no way affects the vehicle's aerodynamics and the weight of the solar system is also negligible. Our panels withstand severe environmental conditions such as sun, rain, snow, ice, mud, stone chips, branches, etc. without any problems and are therefore perfectly suited for off-road vehicles.

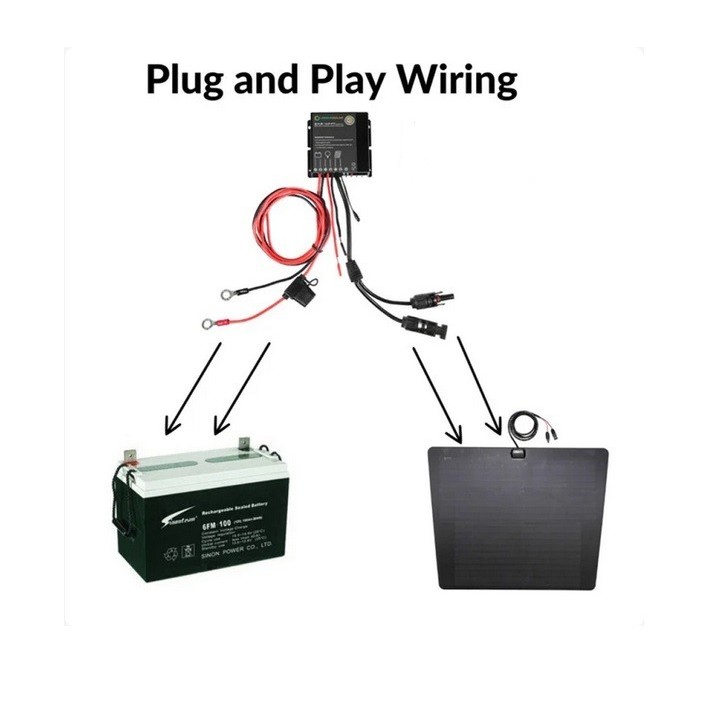

Optional Plug-and-Play MPPT Solar Charge Controller: This waterproof device is mounted in the engine compartment and is extremely resistant to heat and vibrations. The regulator automatically controls the amount of current reaching the battery and prevents overcharging. The charge controller is pre-wired with fuses, terminals and plugs to eliminate unnecessary guesswork when setting up the system in advance (not included - please order separately under item no. 21622 if necessary).

The custom protective film provided with the set protects the underlying vehicle paint from damage and allows the system to be removed from the bonnet without leaving any residue if necessary.

Factory appearance: the flexible solar panels fit perfectly to the contours and edges of the new Defender's bonnet for a seamless and elegant aesthetic.

INSTALLATION:

To minimize paint damage, we recommend combining the solar panels with our vehicle-specific protective films, which are applied under the panels.

The film is applied to your vehicle's bonnet in the same way as conventional bonnet films or car film stickers.

The film acts as a moisture and dirt barrier to protect the paint underneath. It is then advisable to attach each panel to the vinyl film using 3M acrylic foam adhesive tape (item no. 21606).

Alternatively, you can also attach the solar panels directly to the bonnet using adhesive.

Note: Installation of the flexible bonnet solar panel system takes approx. 1.5 hours and must be carried out in a dry environment and at a temperature between 18° and 35°C.

At cold temperatures, the solar panel is not flexible enough to adapt to your bonnet and the adhesive does not adhere correctly.

In addition, the cable guides (optional) available from us can provide the finishing touch to cable organization in the engine compartment.

If in doubt, we recommend having the installation carried out by a professional.

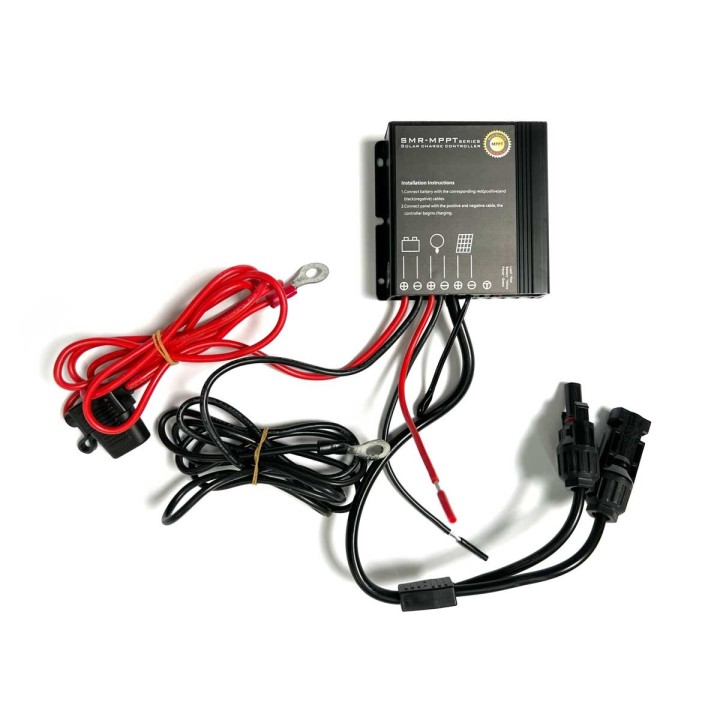

MPPT SOLAR REGULATOR 12V / 130W : (plug and play mounting) :

Product properties:

- Splash-proof according to IP67

- Mainly MPPT charging technology

- 4-stage charging curve

- Integrated desulfator

- LED charge control lights

- MC4 connector plug

Technical details:

Solar panel input voltage (VOS): 16V-27V

Maximum superior performance for each input: 130W

Starter charging device activation charge: <12.5 V

Battery nominal voltage: 12V

Standby consumption: 6mA

Length: 86 mm

Width: 81 mm

Height: 63 mm

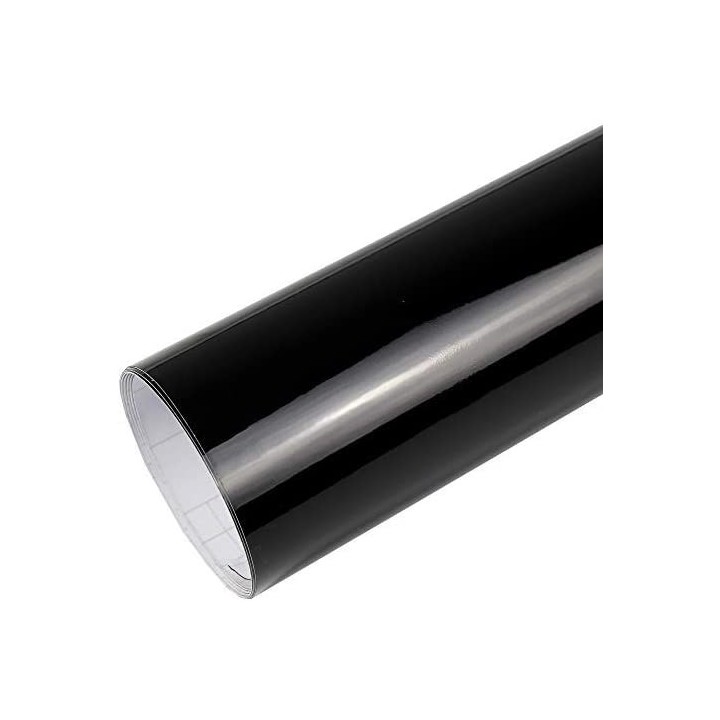

Protective film for the bonnet solar module:

In order not to damage the bonnet paint if possible, we recommend mounting the Bonnet solar module on this self-adhesive protective film.

The film is applied to your vehicle's bonnet in the same way as conventional bonnet films or car film stickers.

The film acts as a moisture and dirt barrier to protect the paint underneath. If necessary, the solar module can be removed from the bonnet without residue.

Protective film for the bonnet, matching our Bonnet solar module

is glued to the bonnet under the solar module

can be removed at any time

Color: black

Suitable for custom cutting of the solar module

Note: The film must be glued in a dry environment and at a temperature between 18° and 35°C. The bonnet must be cleaned beforehand, keeping it dry and grease-free.

The set includes:

Bonnet Solar Panel Set

MPPT Solar Regulator 12V / 130W

Protective film for the bonnet solar module

SHIPPING TIME 1 WEEK
