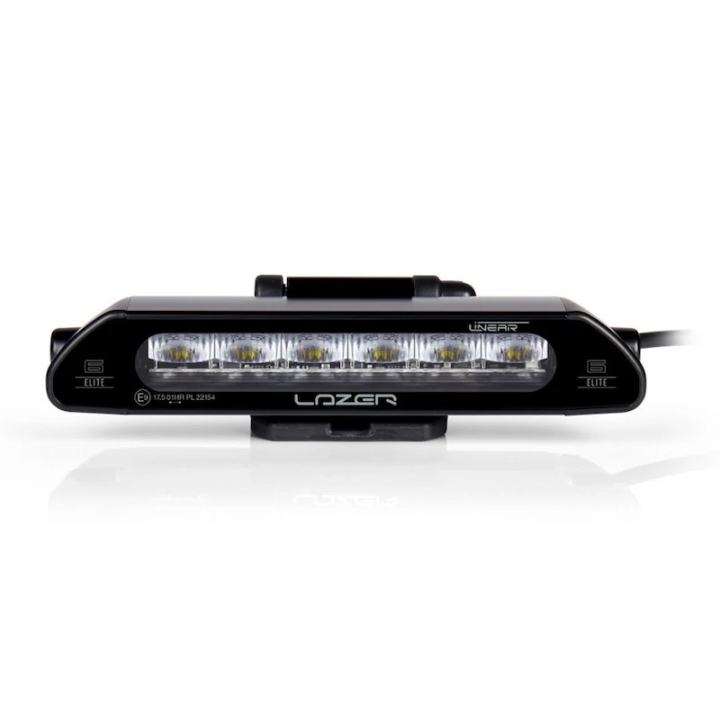

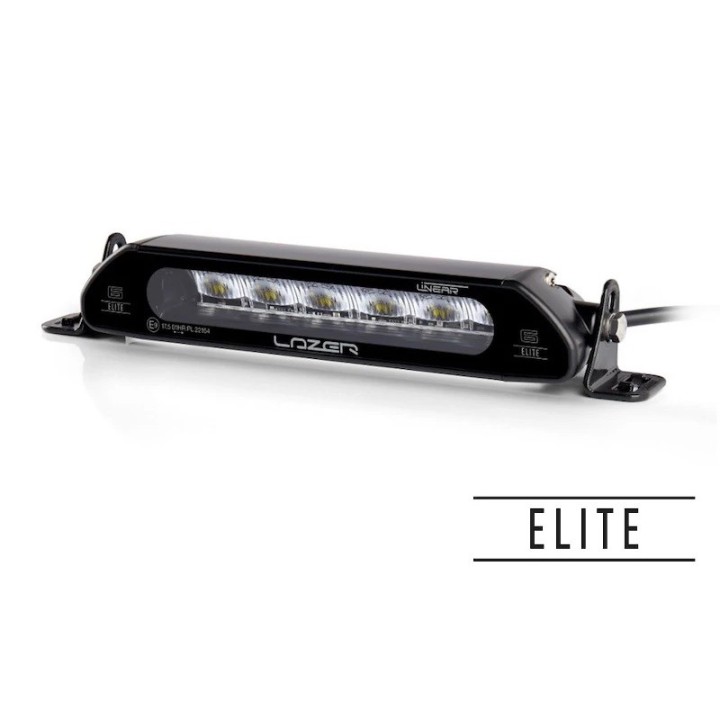

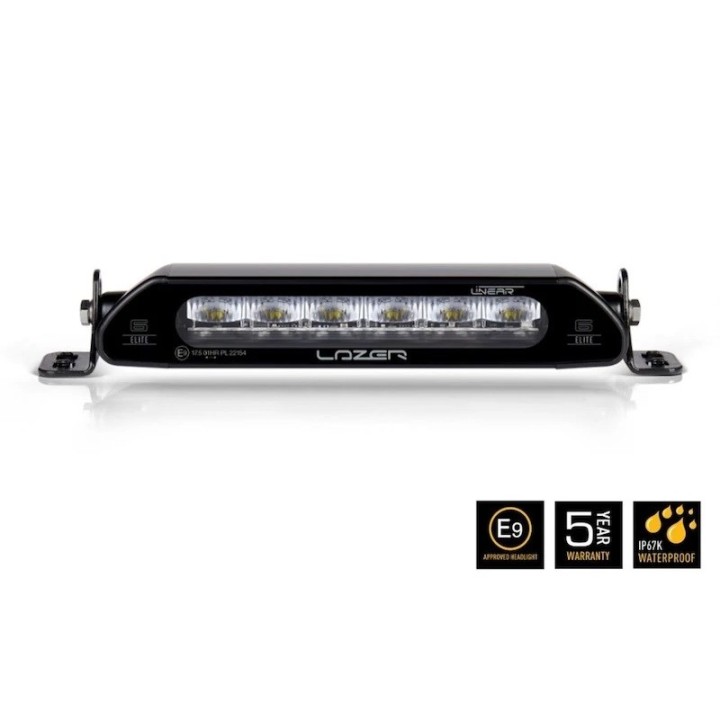

42 Watts 23 cms LAZER Linear 6 Elite LED Bar
Reference : ACALR6ELN
42 Watts 23 cms length LAZER Linear 6 Elite LED Bar:

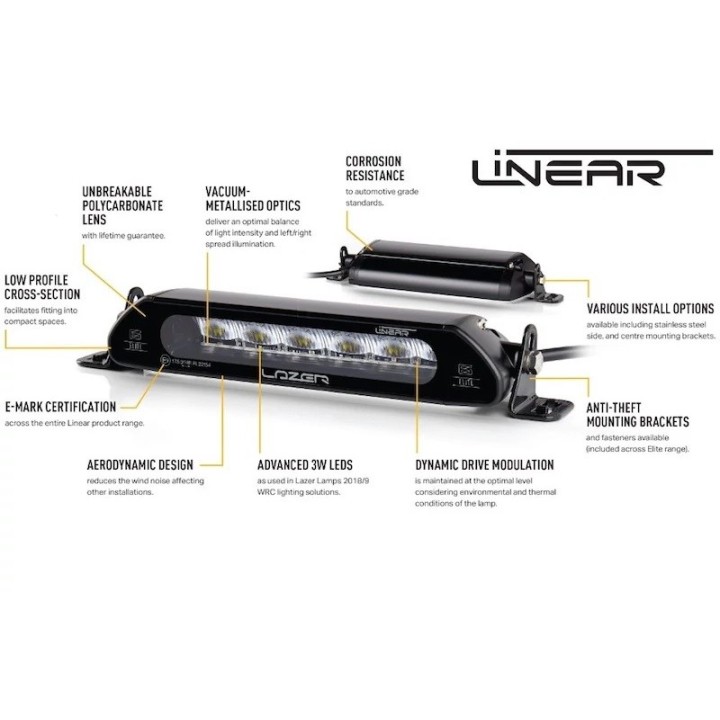

Highly efficient "premium bin" LED combination
• Vacuum metallized optics provide wide light spread

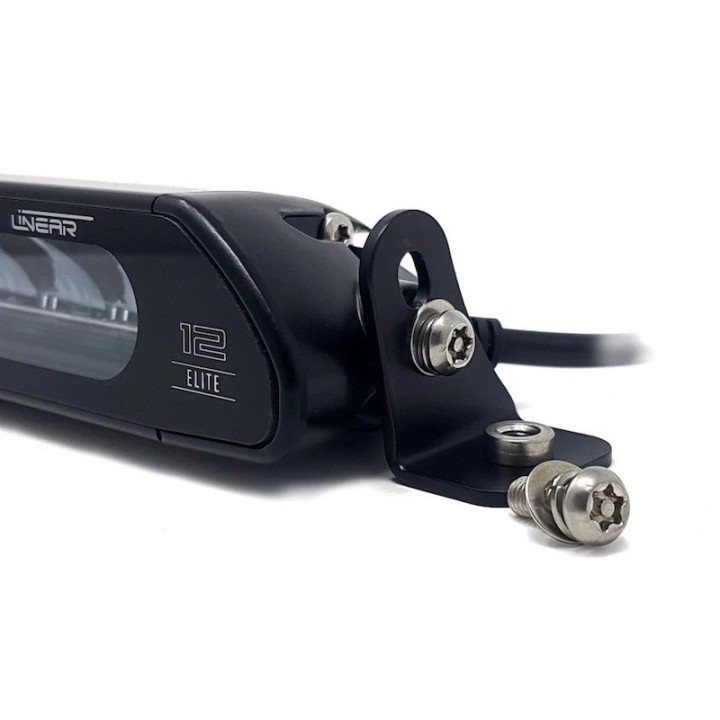

• Flexible mounting options - anti-theft mounting brackets included
• Sleek, low-profile design facilitates installation
• Electronic thermal management
• "Unbreakable" and hard polycarbonate lens
• ECE approved for on-road use
• IP67 waterproof
• 5-year warranty
• Supplied with male/female connectors (pre-wired)
• Designed and manufactured in Great Britain
CE APPROVED
Supplied complete with:
Elite X1 Linear-6 LED Lamp
• X1 anti-theft side bracket (1127K)
• Wiring and installation instructions x1
Technical data:
Voltage range 9-32V
Lifespan 50,000 hours
Weight 495 GR
Functions
Total luminous flux 4050 lm
Number of high output LEDs 12
Power consumption 42 watts
Current draw (at 14.4 V) 2.9 amps
Start-up time * 100 ms
Certification
ECE R112 high beam
ECE Reference 17.5

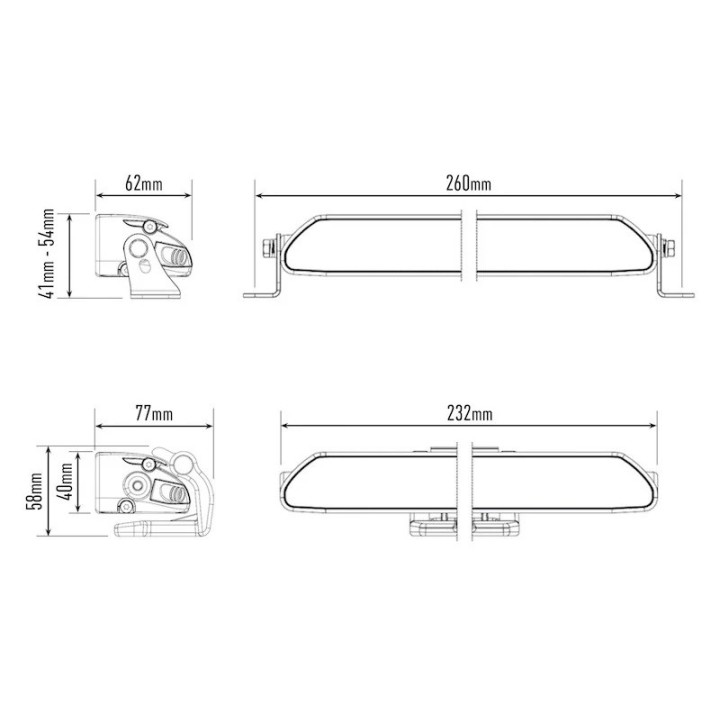

DIMENSIONS
Width 232 mm
Depth 62 mm
Height 40 mm

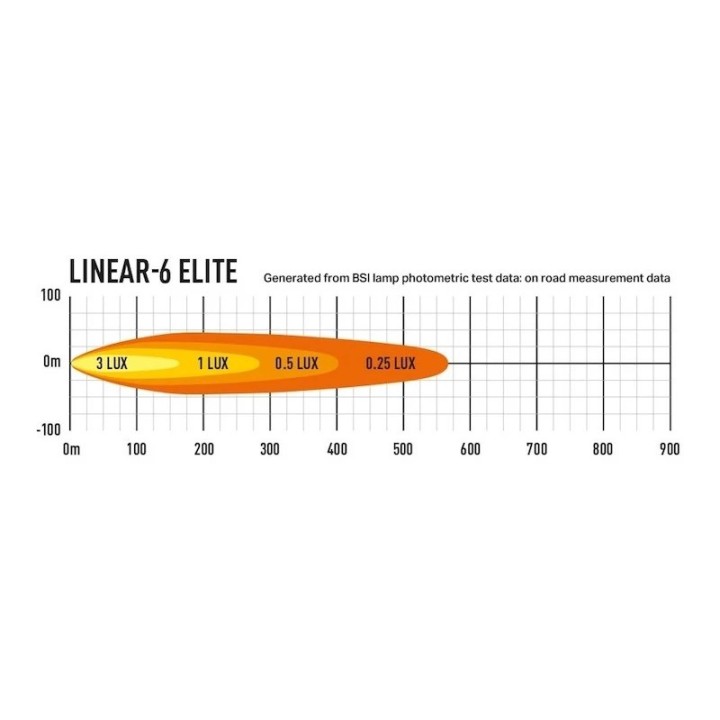

Photometric data
0.25 LX Line 563 meters
0.5 LX Line 398 meters
1 LX line 282 meters
3 LX line 163 meters

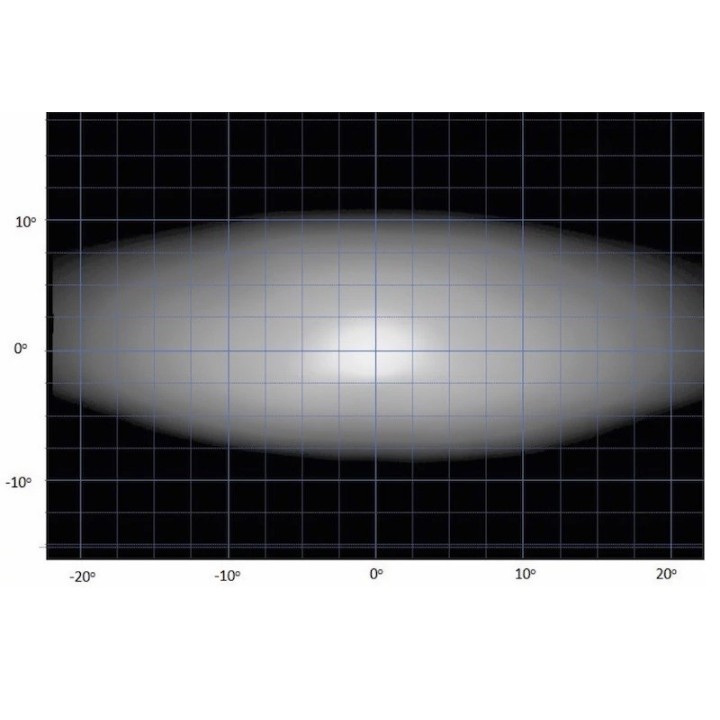

Beam spread
42 degrees horizontal
15 degrees vertical
